All New Satria F150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 102A CYLINDER HEAD COVERFIG. 103A CYLINDER HEADFIG. 107A CYLINDERFIG. 108A CRANKCASEFIG. 112A CRANKCASE COVERFIG. 120A CRANKSHAFTFIG. 122A STARTER CLUTCHFIG. 124A CRANK BALANCERFIG. 126A CAMSHAFT/VALVEFIG. 127A CAM CHAINFIG. 140A THROTTLE BODYFIG. 155A AIR CLEANERFIG. 163A MUFFLERFIG. 170A OIL PUMPFIG. 172A FUEL PUMPFIG. 180A WATER PUMPFIG. 185A RADIATORFIG. 187A RADIATOR HOSEFIG. 201A CLUTCHFIG. 206A TRANSMISSIONFIG. 212A GEAR SHIFTINGFIG. 240A KICK STARTER

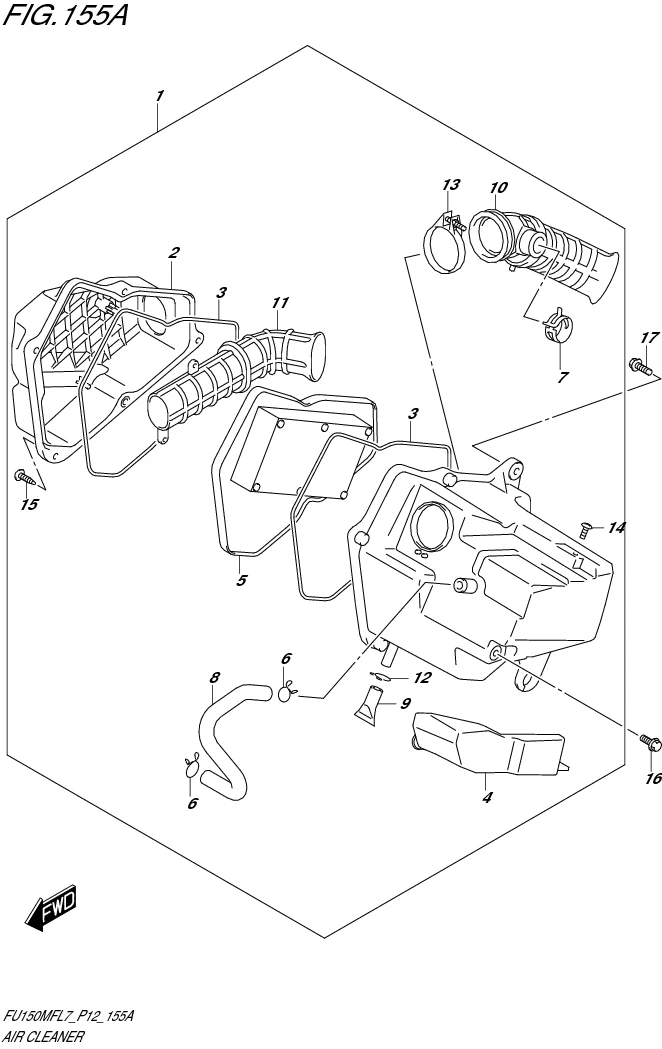

FIG. 155A AIR CLEANER

FIG. 155A AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13700-12K00-000 CLEANER ASSY, AIR 1 Rp226.500
2 13740-12K00-000 .CAP, AIR CLEANER 1 Rp29.000
3 13746-12K00-000 .GASKET 2 Rp7.000
4 13761-12K00-000 .RESONATOR 1 Rp20.500
5 13780-12K00-000 .FILTER ASSY 1 Rp47.000
6 13821-12K00-000 .CLIP 2 Rp4.500
7 13822-12K00-000 .CLIP 1 Rp7.000
8 13853-12K00-000 .TUBE, BREATHER 1 Rp16.500
9 13878-12K00-000 .PLUG, DRAIN 1 Rp6.500
10 13881-12K00-000 .TUBE, OUTLET 1 Rp46.000
11 13891-12K00-000 .TUBE, INLET 1 Rp23.500
12 09401-11101-000 .CLIP 1 Rp14.000
13 09402-44208-000
SUB: 09402B44208N000		 .CLAMP 1 Rp8.000
14 03541-0512A-000
SUB: 03541B0512AN000		 .SCREW 1 Rp3.500
15 03541-0520B-000
SUB: 03541B0520BN000		 .SCREW 5 Rp3.000
16 DISCONTINUE
SUB: 01580-0616A-000		 BOLT 1 -
17 DISCONTINUE
SUB: 01580-0620A-000		 BOLT 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
