All New Satria F150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 102A CYLINDER HEAD COVERFIG. 103A CYLINDER HEADFIG. 107A CYLINDERFIG. 108A CRANKCASEFIG. 112A CRANKCASE COVERFIG. 120A CRANKSHAFTFIG. 122A STARTER CLUTCHFIG. 124A CRANK BALANCERFIG. 126A CAMSHAFT/VALVEFIG. 127A CAM CHAINFIG. 140A THROTTLE BODYFIG. 155A AIR CLEANERFIG. 163A MUFFLERFIG. 170A OIL PUMPFIG. 172A FUEL PUMPFIG. 180A WATER PUMPFIG. 185A RADIATORFIG. 187A RADIATOR HOSEFIG. 201A CLUTCHFIG. 206A TRANSMISSIONFIG. 212A GEAR SHIFTINGFIG. 240A KICK STARTER

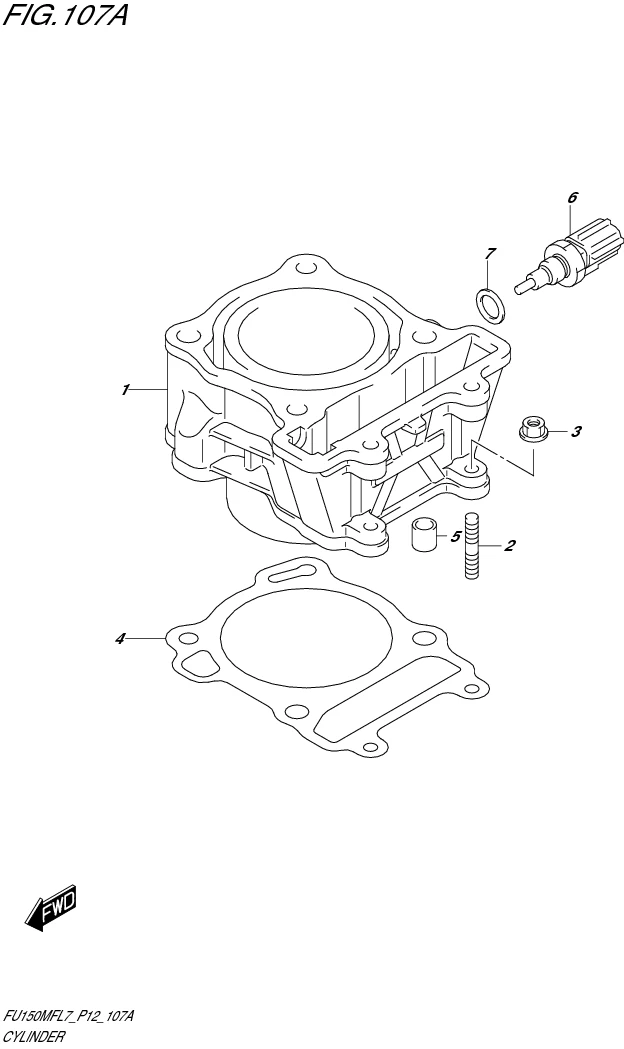

FIG. 107A CYLINDER

FIG. 107A CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 11211-12K01-0F0
SUB: 11211-12K00-0F0		 CYLINDER 1 Rp1.712.500
2 01421-0620A-000
SUB: 01421B0620AN000		 STUD BOLT 2 Rp3.500
3 08316-1006A-000 NUT 2 Rp2.000
4 11241-12K00-000 GASKET, CYLINDER 1 Rp15.500
5 04211-11129-000
SUB: 04211B11129N000		 PIN 2 Rp2.000
6 13650-49X00-000 SENSOR, TEMP 1 Rp133.500
7 09168-12017-000 GASKET (12X17X1) 1 Rp13.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
