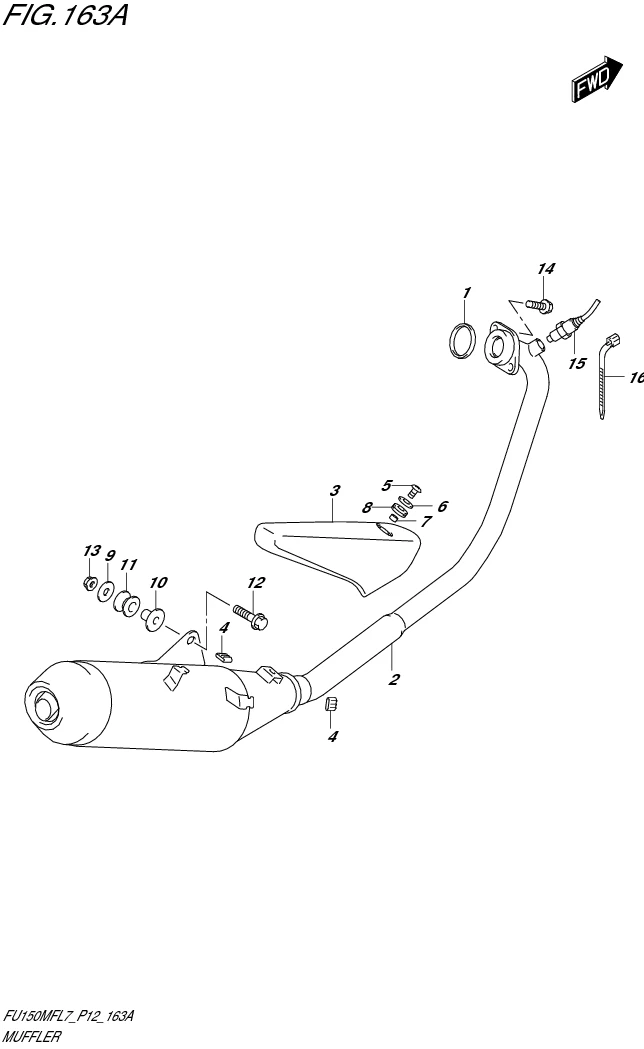

FIG. 163A MUFFLER

FIG. 163A MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 14181-47E20-000
SUB: 14181B47E20N000		 GASKET, EXHAUST PIPE 1 Rp9.000
2 14310-12K31-000
SUB: 14310-12K00-000		 BODY, MUFFLER 1 Rp1.935.000
3 14780-12K00-000 COVER, MUFFLER 1 Rp107.500
4 14795-10FA0-000
SUB: 14795B10FA0N000		 GROMMET 2 Rp5.500
5 09139-06091-000
SUB: 09139B06091N000		 SCREW (6X12) 1 Rp8.500
6 09160-06028-000 WASHER (6.5X18X1) 1 Rp3.500
7 09180-06343-000
SUB: 09180B06343N000		 SPACER 1 Rp12.500
8 09320-08087-000 CUSHION 1 Rp9.000
9 09160-08134-000
SUB: 09160B08134N000		 WASHER (8.5X26X1.6) 1 Rp7.500
10 09180-08151-000
SUB: 09180B08151N000		 SPACER (8.6X12X17.5) 1 Rp22.000
11 09320-12032-000
SUB: 09320B12032N000		 CUSHION 1 Rp5.000
12 01550-0835A-000 BOLT 1 Rp3.500
13 08319-3108A-000
SUB: 08319B3108AN000		 NUT 1 Rp4.000
14 01550-0825A-000 BOLT 2 Rp3.500
15 18213-12K01-000
SUB: 18213-12K00-000		 SENSOR, OXYGEN 1 Rp326.000
16 36990-25G00-000 CLAMP 1 Rp13.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
