All New Satria F150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 102A CYLINDER HEAD COVERFIG. 103A CYLINDER HEADFIG. 107A CYLINDERFIG. 108A CRANKCASEFIG. 112A CRANKCASE COVERFIG. 120A CRANKSHAFTFIG. 122A STARTER CLUTCHFIG. 124A CRANK BALANCERFIG. 126A CAMSHAFT/VALVEFIG. 127A CAM CHAINFIG. 140A THROTTLE BODYFIG. 155A AIR CLEANERFIG. 163A MUFFLERFIG. 170A OIL PUMPFIG. 172A FUEL PUMPFIG. 180A WATER PUMPFIG. 185A RADIATORFIG. 187A RADIATOR HOSEFIG. 201A CLUTCHFIG. 206A TRANSMISSIONFIG. 212A GEAR SHIFTINGFIG. 240A KICK STARTER

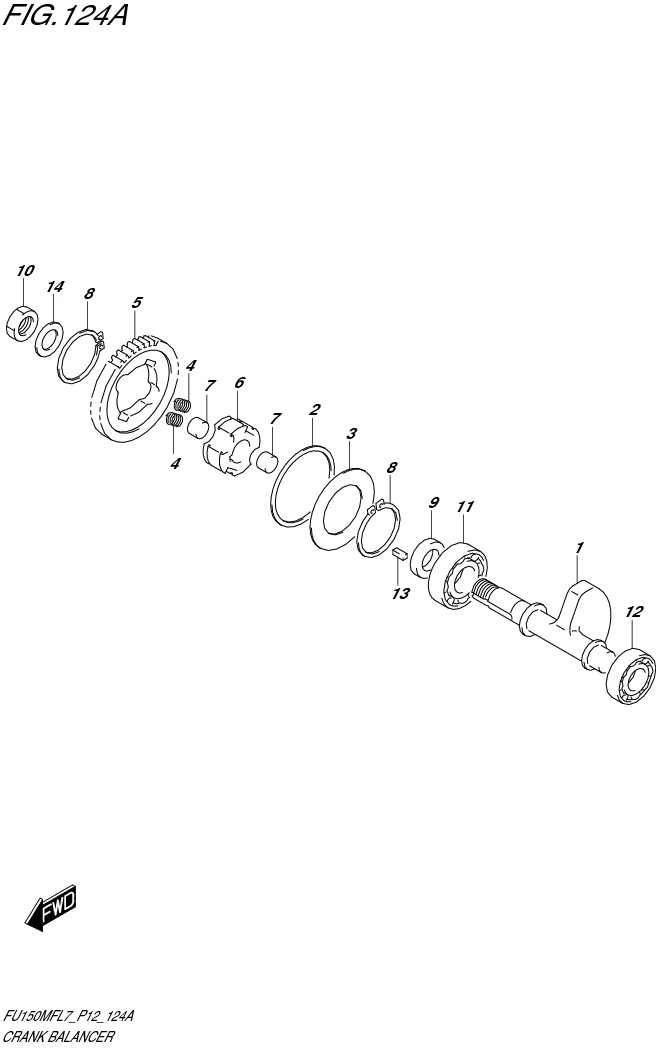

FIG. 124A CRANK BALANCER

FIG. 124A CRANK BALANCER
No No. Part Description Qty Price Per Pcs Remarks
1 12651-12K02-000
SUB: 12651-12K00-000		 BALANCER, CRANK 1 Rp98.000
2 12662-12K00-000 WASHER, DRIVEN GEAR NO.1 1 Rp9.500
3 12662-34J10-000 WASHER, DRIVEN GEAR NO.2 1 Rp13.000
4 12663-47E50-000
SUB: 12663B47E50N000		 SPRING 2 Rp3.000
5 12666-12K10-000
SUB: 12666-12K00-000		 GEAR (NT:44) 1 Rp124.000
6 12669-12K10-000
SUB: 12669-12K00-000		 RACE, DRIVEN GEAR INNER 1 Rp41.500
7 12686-25G31-000
SUB: 12686B25G20N000		 DAMPER 2 Rp18.500
8 08331-31359-000 CIRCLIP 2 Rp24.000
9 12668-34J00-000 SPACER, DRIVEN GEAR 1 Rp21.000
10 09140-14022-000
SUB: 09140B14022N000		 NUT 1 Rp9.000
11 09262-15054-000 BEARING RH 1 Rp42.500 RH
12 09262-15055-000 BEARING LH 1 Rp33.500 LH
13 09421-04011-000 KEY 1 Rp7.500
14 08211-14242-000 WASHER 1 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
