Preview Engine Transmission Electrical Suspension Body

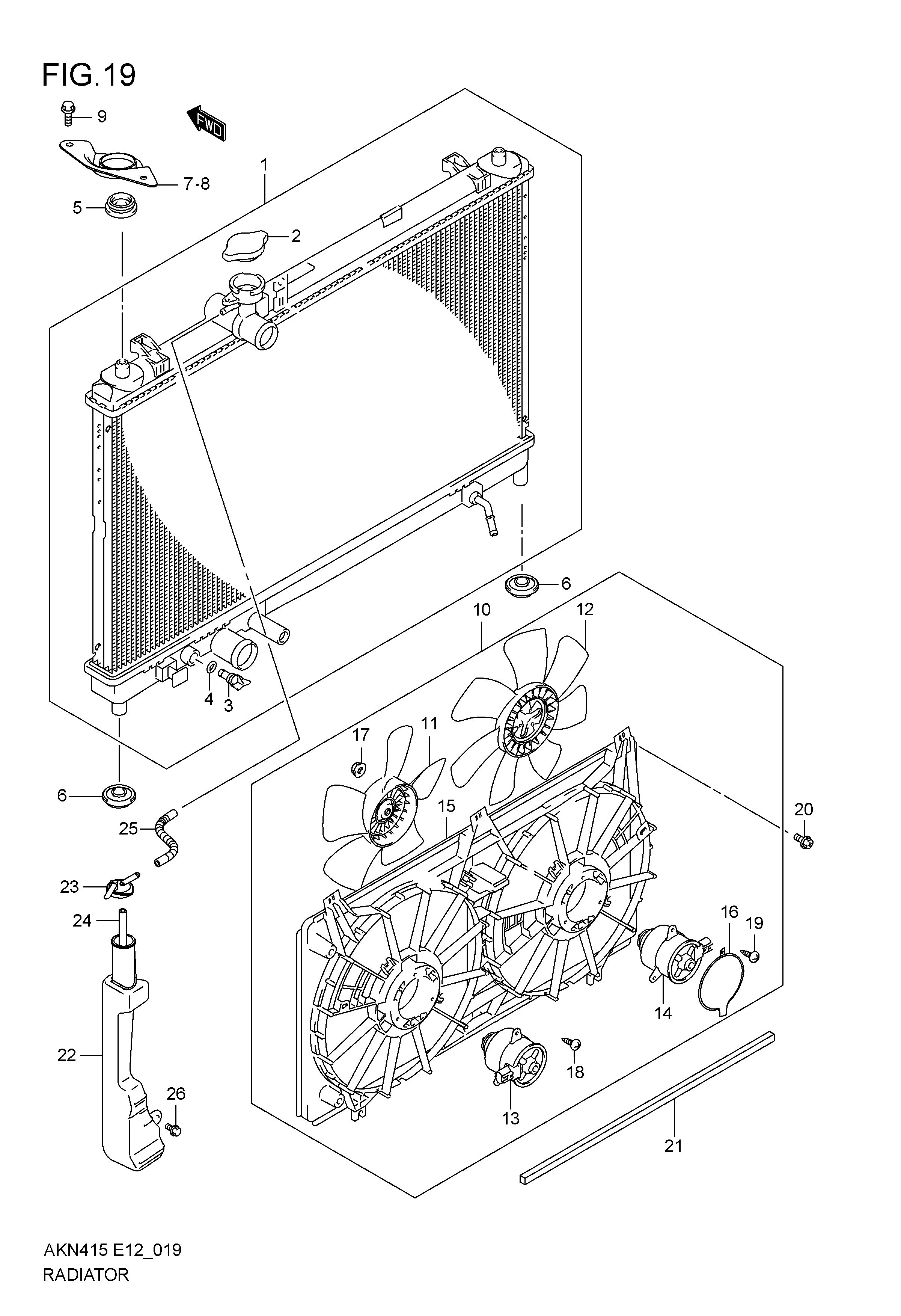

No	No. Part	Description	Qty	Price Per Pcs
1	17700M79M00-000	RADIATOR ASSY	1	Rp1.792.500
2	DISCONTINUE SUB: 17920B75F00N000	.CAP, RADIATOR	1	-
3	17751-61A00-000 SUB: 17751B61A00N000	.DRAIN PLUG	1	Rp13.000
4	17759-82K00-000 SUB: 17759B82K00N000	.O-RING	1	Rp7.500
5	17812-54G00-000	MOUNT, RADIATOR SUPPORT UPPER	2	Rp35.500
6	17878-81K00-000 SUB: 17878B81K00N000	MOUNT, RADIATOR SUPPORT LOWER	2	Rp14.000
7	17861M65MB0-000	BRACKET, RDTR SUPPORT RH	1	Rp18.500
8	17861M65MC0-000	BRACKET, RDTR SUPPORT LH	1	Rp18.500
9	02162-0612A-000	BOLT	4	Rp11.000
10	17100M65MB0-000	FAN ASSY, ENGINE COOLING	1	Rp3.178.000
11	17111M79M00-000	.FAN, ENGINE COOLING MAIN	1	Rp347.000
12	17111M76G01-000 SUB: 17112M79P01-000	.FAN, ENGINE COOLING SUB	1	Rp505.500
13	17120M79M01-000	.MOTOR, ENGINE COOLING MAIN	1	Rp1.610.000
14	17130M65MB0-000	.MOTOR, ENGINE COOLING SUB	1	Rp1.610.000
15	17760M79M00-000	.SHROUD, ENGINE COOLING FAN	1	Rp476.500
16	17761M79M00-000	.HEAT PROTECTOR	1	Rp136.000
17	08316M26056-000	.NUT	2	Rp14.500
18	17129-56F00-000	.SCREW, FAN MOTOR	6	Rp24.000
19	17129-50F10-000	.SCREW, HEAT PROTECTOTR	1	Rp21.500
20	02162-0616A-000	BOLT	2	Rp3.000
21	17793M61M00-000	SEAL, RADIATOR NO.3	1	Rp22.500
22	17931M79M00-000	TANK, WATER RESERVE	1	Rp175.500
23	17932-76G00-000 SUB: 17932B76G00N000	CAP, WTR RSVR TANK	1	Rp5.500
24	09352M70111-450	HOSE, WTR RSVR TANK CAP	1	Rp42.000
25	09352M70L03-210	HOSE, RDTR TO RSV TANK	1	Rp11.000
26	01550-0612B-000	BOLT	2	Rp16.500
