SX4 S-Cross M

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE GASKET SETCYLINDER HEADCYLINDEROIL PANCRANKSHAFTCAM SHAFT/VALVECAM CHAINENGINE MOUNTING (5MT)ENGINE MOUNTING (6AT)INTAKE MANIFOLDTHROTTLE BODYAIR CLEANEREXHAUST MANIFOLDMUFFLERFUEL PUMPDELIVERY PIPE/FUEL INJECTOROIL PUMPWATER PUMPRADIATORWATER HOSE (5MT)WATER HOSE (6AT)EMISSION CONTROLLABEL

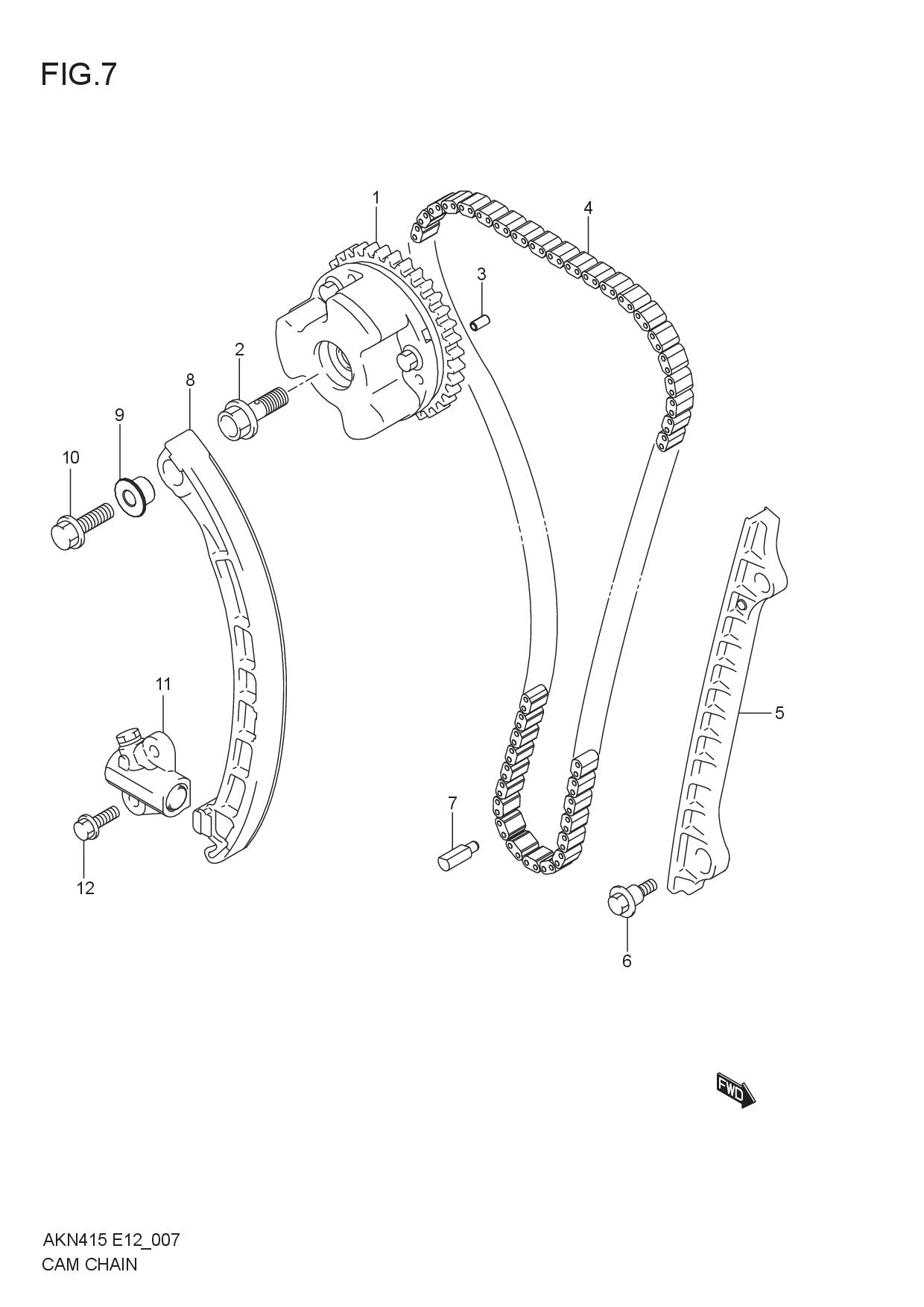

CAM CHAIN

CAM CHAIN
No No. Part Description Qty Price Per Pcs Remarks
1 12740-54GE1-000 SPROCKET ASSY, CAMSHAFT TIMING 1 Rp2.929.000
2 12753-69GE2-000 BOLT 1 Rp63.000
3 09206-05001-000 PIN 1 Rp11.500
4 12761-54G00-000 CHAIN, TIMING 1 Rp764.500
5 12771-61M00-000 GUIDE, TIMING CHAIN NO.1 1 Rp199.500
6 12776-85FA0-000 BOLT 2 Rp39.000
7 12781-69G00-000
SUB: 12781B69G00N000		 JET 1 Rp24.500
8 12811-61M00-000 TENSIONER 1 Rp681.000
9 12812M73G10-000 SPACER 1 Rp13.000
10 01550-0830A-000
SUB: 01550B0830AN000		 BOLT 1 Rp4.000
11 12831-69G10-000 ADJUSTER ASSY, TENSIONER 1 Rp872.500
12 01550-0620B-000
SUB: 01550B0620BN000		 BOLT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
