SX4 S-Cross M

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE GASKET SETCYLINDER HEADCYLINDEROIL PANCRANKSHAFTCAM SHAFT/VALVECAM CHAINENGINE MOUNTING (5MT)ENGINE MOUNTING (6AT)INTAKE MANIFOLDTHROTTLE BODYAIR CLEANEREXHAUST MANIFOLDMUFFLERFUEL PUMPDELIVERY PIPE/FUEL INJECTOROIL PUMPWATER PUMPRADIATORWATER HOSE (5MT)WATER HOSE (6AT)EMISSION CONTROLLABEL

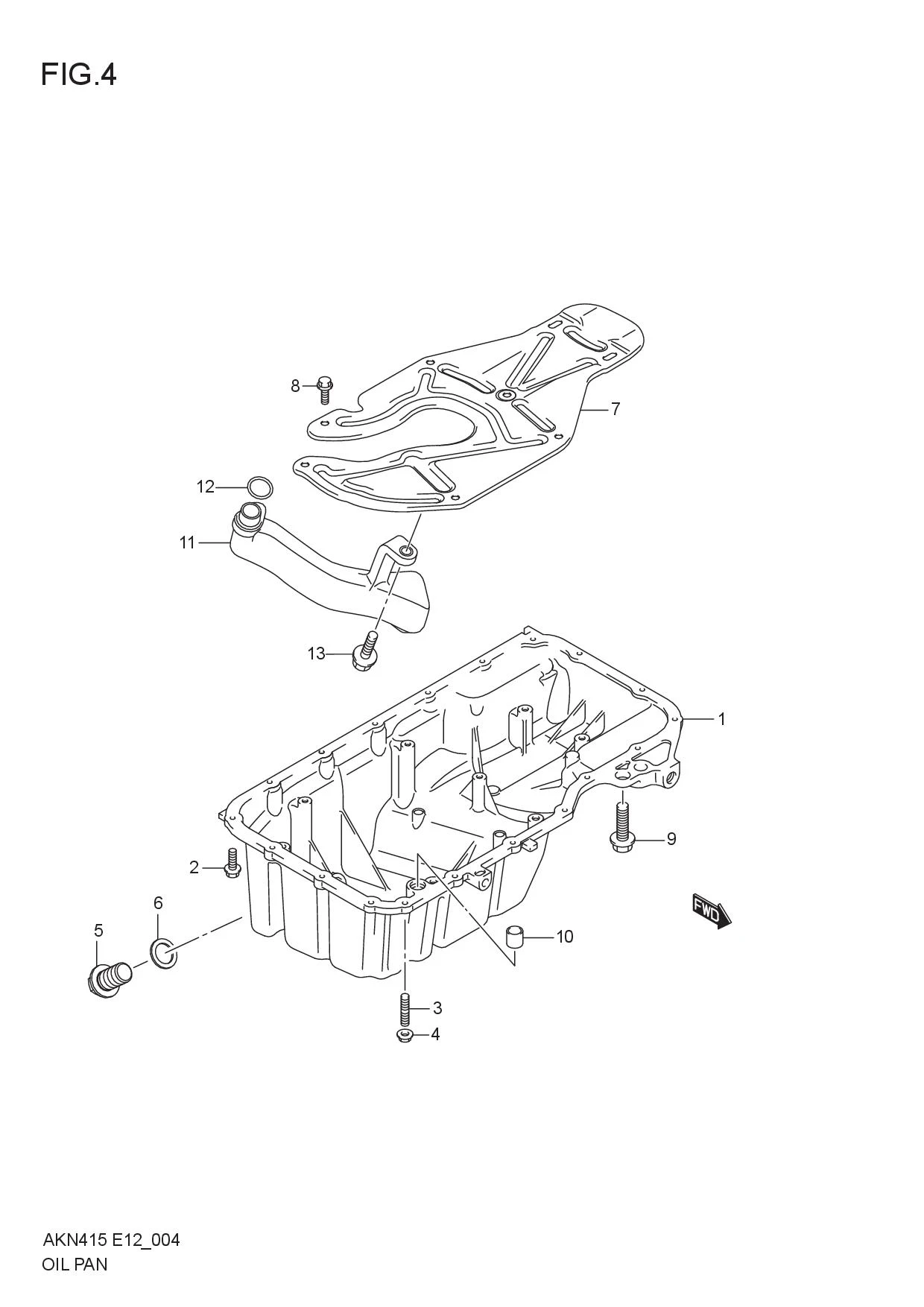

OIL PAN

OIL PAN
No No. Part Description Qty Price Per Pcs Remarks
1 11511-63J06-000 PAN, OIL 1 Rp2.279.000
2 01550-0620C-000 BOLT 17 Rp5.500
3 01421-0620A-000
SUB: 01421B0620AN000		 BOLT 2 Rp3.500
4 09159-06077-000 NUT 2 Rp17.500
5 11518-63J20-000 PLUG 1 Rp29.500
6 09168-14015-000
SUB: 11519M60M00-000		 GASKET, OIL DRAIN PLUG 1 Rp7.500
7 11512M65MB0-000 PLATE, OIL PAN BAFFLE 1 Rp60.000
8 01550-0612B-000 BOLT 8 Rp16.500
9 01550-1035C-000 BOLT 1 Rp34.500
10 04211M13189-000 PIN 1 Rp9.000
11 16520-61M00-000 STRAINER, OIL PUMP 1 Rp362.500
12 16119M68K00-000 O-RING, OIL STRAINER 1 Rp7.000
13 07120-0620A-000 BOLT 2 Rp22.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
