SX4 S-Cross M

Preview Engine Transmission Electrical Suspension Body

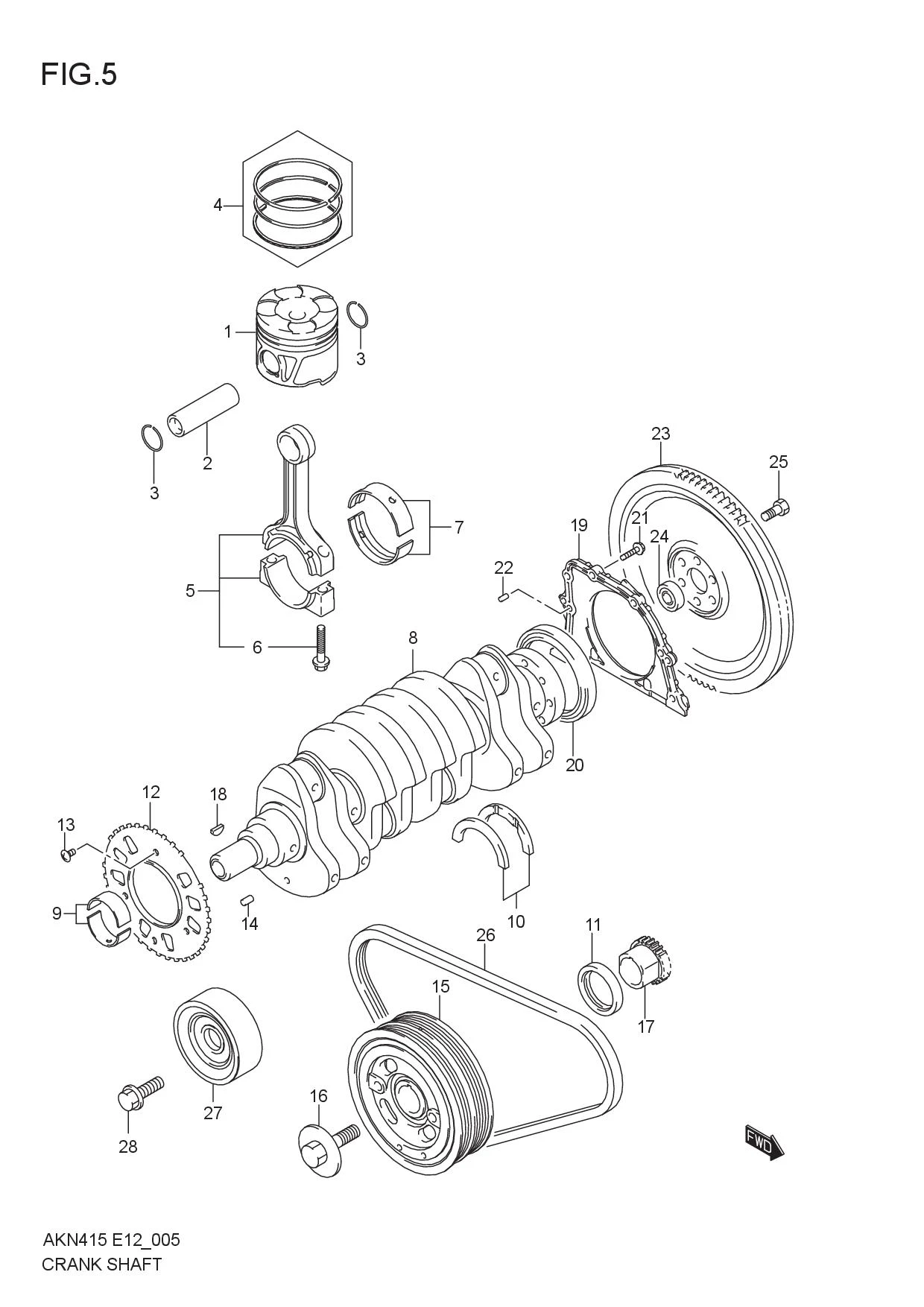

CRANKSHAFT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-1	12111M65MB0-000	PISTON (STD)	4	Rp457.500
1-2	DISCONTINUE SUB: 12111M65MB0-050	PISTON (OS:0.50)	4	-
2	12151M65MB0-000	PIN, PISTON	4	Rp72.500
3	09381-20004-000	CIRCLIP, PISTON PIN	8	Rp13.500
4-1	12140M65MB0-000	RING SET, PISTON (STD)	4	Rp161.000
4-2	12140M65MB0-050	RING SET, PISTON (OS:0.50)	4	Rp167.000
5	12160M65MB1-000	CONNROD ASSY	4	Rp427.500
6	12163-57K00-000	.BOLT, CONNROD	8	Rp30.500
7-3	12100-70880-0C0	BEARING, CONNROD (NON COLOR)	8	Rp199.500
7-6	12100-70880-025	BEARING, CONNROD (US:0.25)	8	Rp206.000
7-5	12100-70880-0E0	BEARING, CONNROD (BLUE)	8	Rp211.000
7-4	12100-70880-0D0	BEARING, CONNROD (YELLOW)	8	Rp199.500
7-2	12100-70880-0B0	BEARING, CONNROD (BLACK)	8	Rp206.000
7-1	12100-70880-0A0	BEARING, CONNROD (GREEN)	8	Rp199.500
8	12221-65MB0-000	CRANKSHAFT	1	Rp10.105.000
9-8	12300-57830-0CA	BEARING SET RED/BROWN	5	Rp219.500
9-1	12340-61M00-0A0	BEARING SET PINK (STD,T:2.0)	5	Rp219.500
9-2	12340-61M00-0B0	BEARING SET PURPLE (STD,T:2.0)	5	Rp219.500
9-3	12340-61M00-0C0	BEARING SET BROWN (STD,T:2.0)	5	Rp213.000
9-4	12340-61M00-0D0	BEARING SET GREEN (STD,T:2.0)	5	Rp219.500
9-5	12340-61M00-0E0	BEARING SET BLACK (STD,T:2.0)	5	Rp224.500
9-6	12300-57830-0AA	BEARING SET RED/PINK	5	Rp224.500
9-7	12300-57830-0BA	BEARING SET RED/PURPLE	5	Rp219.500
9-9	12300-57830-0DA	BEARING SET RED/GREEN	5	Rp219.500
9-10	12300-57830-0EA	BEARING SET RED/BLACK	5	Rp224.500
10-1	DISCONTINUE SUB: 12351-78K00-000	BEARING, CRANK THRUST	2	-
10-2	12300-78890-012	BEARING,CRANK THRUST	2	Rp167.500
11	09283-41003-000	SEAL, OIL	1	Rp94.500
12	12222-54LA0-000	PLATE, SENSOR	1	Rp115.500
13	12223-69G00-000	SCREW, SENSOR PLATE	3	Rp13.500
14	09205-05006-000	PIN	1	Rp11.500
15	12610-64J00-000	PULLEY, CRANKSHAFT	1	Rp1.089.000
16	12619M84MA0-000	BOLT, CRANK PULLEY	1	Rp95.000
17-1	12631M83K01-000	SPROCKET, CRANKSHAFT TIMING	1	Rp275.000	VENDOR:BORGWARNER MORSE TEC INDIA PRIVATE LTD
17-2	12631M83K11-000	SPROCKET, CRANKSHAFT TIMING	1	Rp228.500	VENDOR:SANSERA ENGINEERING PVT LTD
18	08341M31059-000	KEY	1	Rp4.500
19	11341M55K00-000	HOUSING, OIL SEAL	1	Rp117.500
20	11342M55K00-000	SEAL, CRANKSHAFT REAR OIL	1	Rp141.000
21	09103M06315-000	BOLT	7	Rp6.000
22	11345M68K00-000	PIN, OIL SEAL HOUSING DOWEL	2	Rp5.500
23	12620M55K00-000	FLYWHEEL	1	Rp933.500	5MT
24	12623M68K00-000	BEARING, INPUT SHAFT	1	Rp88.000	5MT
25	09103-10440-000	BOLT, FLYWHEEL	8	Rp33.000	5MT
26	17521M68PA0-000	BELT, WATER PUMP	1	Rp105.000
27	17530-50M30-000 SUB: 17530-50M00-000	PULLEY, BELT TENSIONER	1	Rp472.000
28	01550-1040A-000	BOLT, IDLER PULLEY	1	Rp7.000
