SX4 S-Cross M

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE GASKET SETCYLINDER HEADCYLINDEROIL PANCRANKSHAFTCAM SHAFT/VALVECAM CHAINENGINE MOUNTING (5MT)ENGINE MOUNTING (6AT)INTAKE MANIFOLDTHROTTLE BODYAIR CLEANEREXHAUST MANIFOLDMUFFLERFUEL PUMPDELIVERY PIPE/FUEL INJECTOROIL PUMPWATER PUMPRADIATORWATER HOSE (5MT)WATER HOSE (6AT)EMISSION CONTROLLABEL

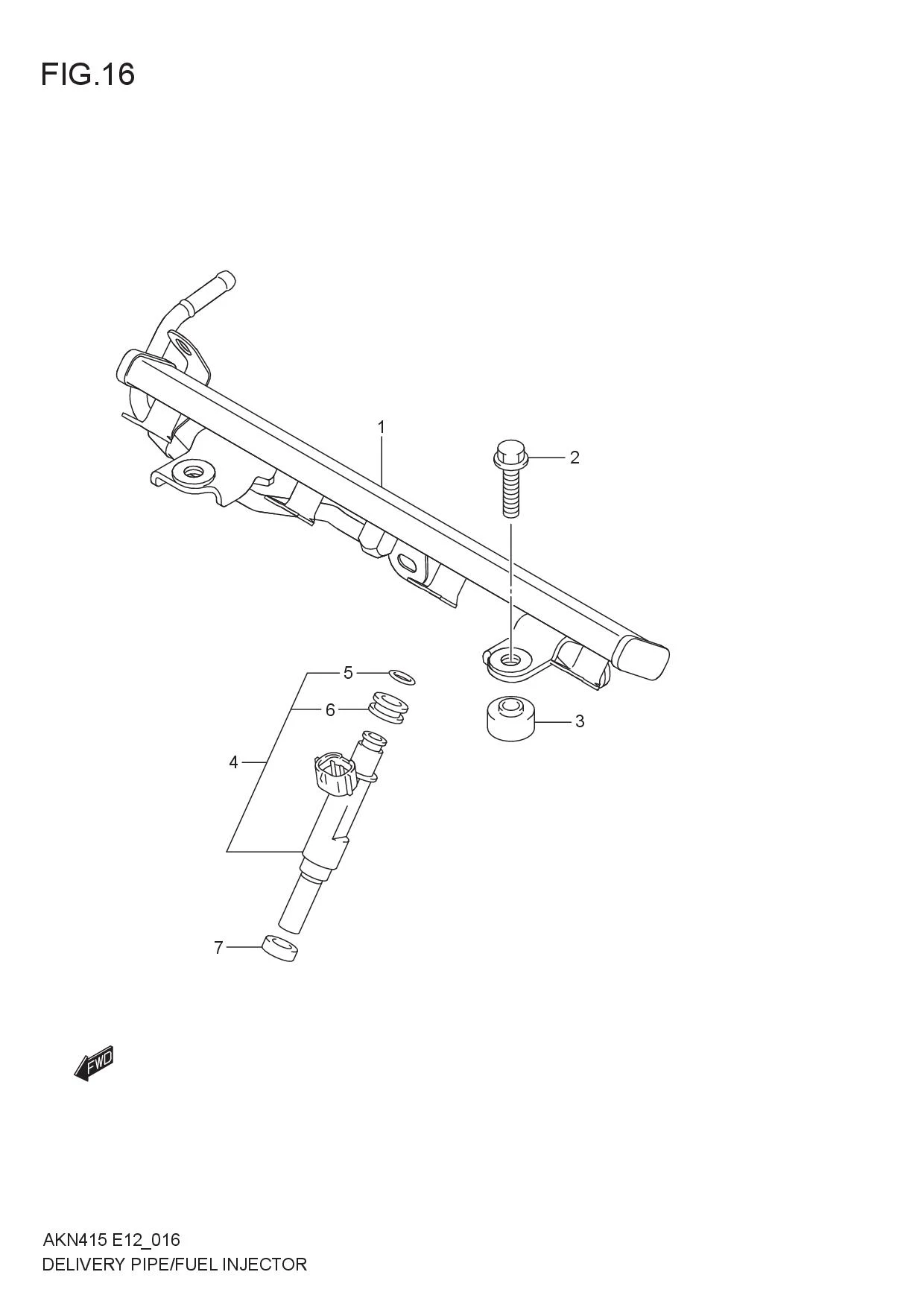

DELIVERY PIPE/FUEL INJECTOR

DELIVERY PIPE/FUEL INJECTOR
No No. Part Description Qty Price Per Pcs Remarks
1 15730-61M00-000 PIPE, FUEL DELIVERY 1 Rp1.026.500
2 01550-0830A-000
SUB: 01550B0830AN000		 BOLT 2 Rp4.000
3 15735-58B00-000 INSULATOR, DELIVERY PIPE 2 Rp45.500
4 15710-55LA0-000 INJECTOR ASSY,FUEL 4 Rp883.500
5 15710-09300-000
SUB: 15710B09300N000		 .O RING 4 Rp13.500
6 15720-09300-000
SUB: 15720B09300N000		 .GROMMET 4 Rp11.500
7 09320-09022-000
SUB: 09320B09022N000		 CUSHION, INJECTOR 4 Rp8.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
