SX4 S-Cross M

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE GASKET SETCYLINDER HEADCYLINDEROIL PANCRANKSHAFTCAM SHAFT/VALVECAM CHAINENGINE MOUNTING (5MT)ENGINE MOUNTING (6AT)INTAKE MANIFOLDTHROTTLE BODYAIR CLEANEREXHAUST MANIFOLDMUFFLERFUEL PUMPDELIVERY PIPE/FUEL INJECTOROIL PUMPWATER PUMPRADIATORWATER HOSE (5MT)WATER HOSE (6AT)EMISSION CONTROLLABEL

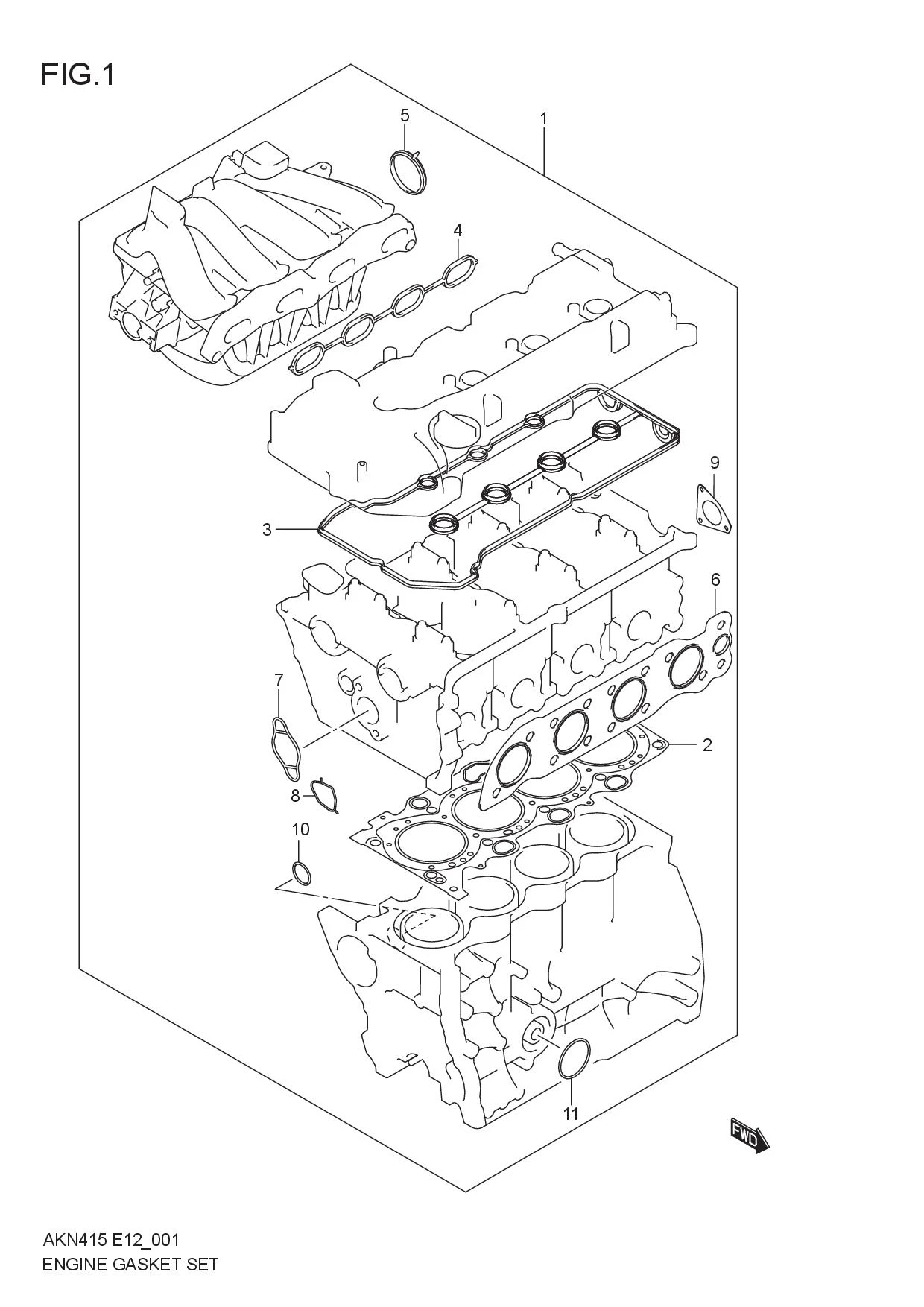

ENGINE GASKET SET

ENGINE GASKET SET
No No. Part Description Qty Price Per Pcs Remarks
1 11400-65830-000 GASKET SET, ENGINE 1 Rp1.391.000
2 11141-54LA0-000 .GASKET, CYLINDER HEAD 1 Rp657.500
3 11189-54GE0-000 .GASKET, CYLINDER HEAD COVER 1 Rp195.500
4 13119-54LA0-000 .GASKET, INTAKE MANIFOLD 1 Rp203.500
5 13421-54LA0-000 .GASKET, THROTTLE BODY 1 Rp111.500
6 14140M55K00-000 .GASKET, EXHAUST MANIFOLD 1 Rp111.000
7 16118-61M00-000 .O-RING, COOLANT 1 Rp70.000
8 16559-69GE0-000 .GASKET, OCV 1 Rp40.500
9 17699M65MB0-000 .GASKET, WATER OUTLET CAP 1 Rp79.500
10 09280M28L01-000 .O RING(D:3.5, ID:27.7) 1 Rp7.500
11 09280-62003-000 .O RING(D:3.5, ID:60.7) 1 Rp43.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
