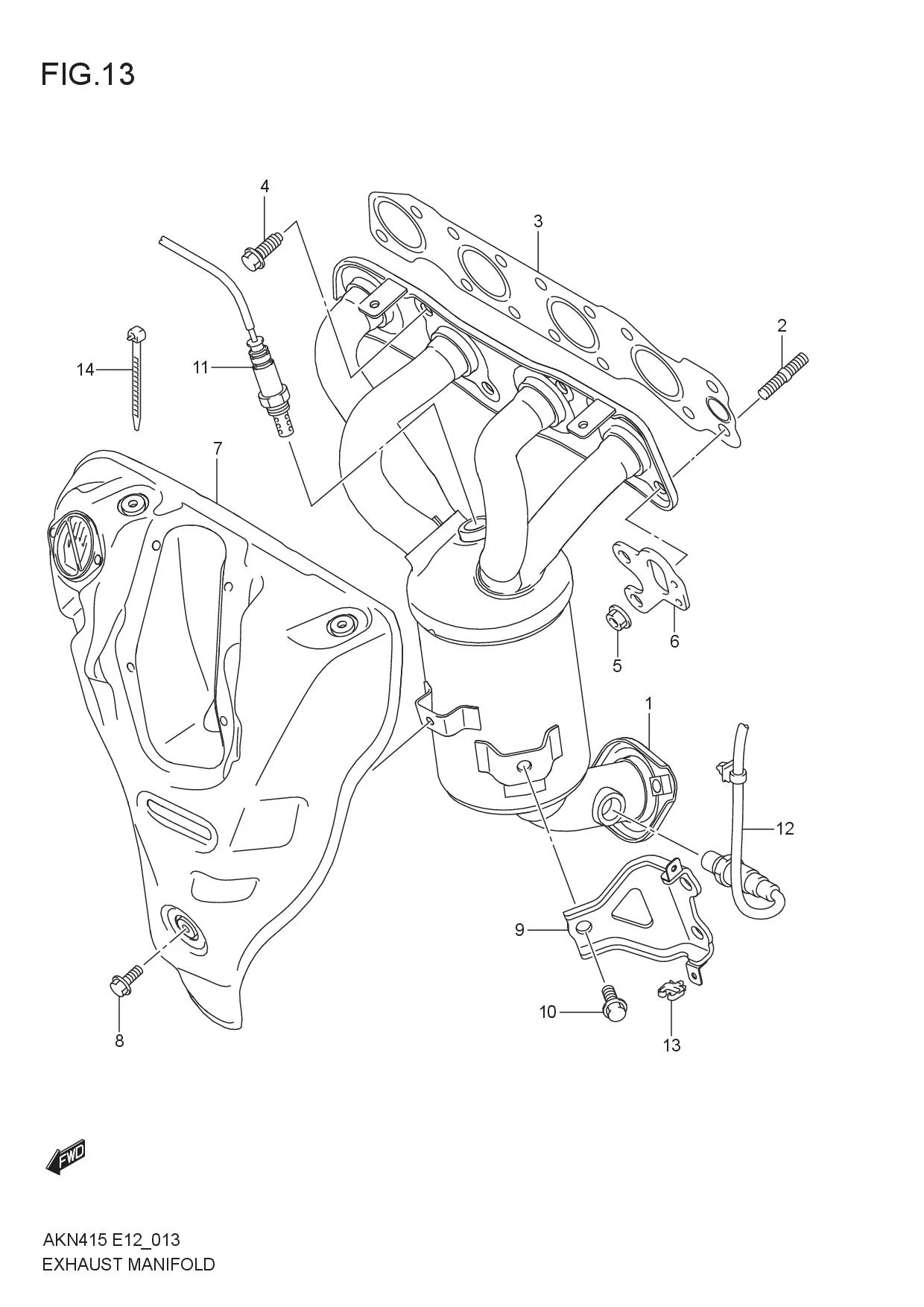

EXHAUST MANIFOLD

EXHAUST MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 14110-61M12-H02 MANIFOLD, EXH 1 Rp27.867.000
2 14118-63J00-000 STUD BOLT 6 Rp21.500
3 14140M55K00-000 GASKET, EXH MANF 1 Rp111.000
4 09135-10011-000 BOLT 4 Rp34.000
5 08316-1010A-000 NUT 6 Rp3.500
6 11851-54LB0-000 HOOK, ENGINE 1 Rp85.500
7 14120-61M00-000 COVER, EXH MANF 1 Rp877.500
8 01550-0612C-000 BOLT 3 Rp19.500
9 14190-61M00-000 STIFFENER, EXH MANF 1 Rp2.300.500
10 09103-10324-000 BOLT 3 Rp30.000
11 18213M65MB0-000 SENSOR, OXYGEN 1 Rp1.876.500
12 18213M65MC0-000 SENSOR, OXYGEN REAR 1 Rp1.928.000
13 09403M11L03-000 CLAMP 1 Rp6.500
14 09408M00L13-000 CLAMP 1 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
