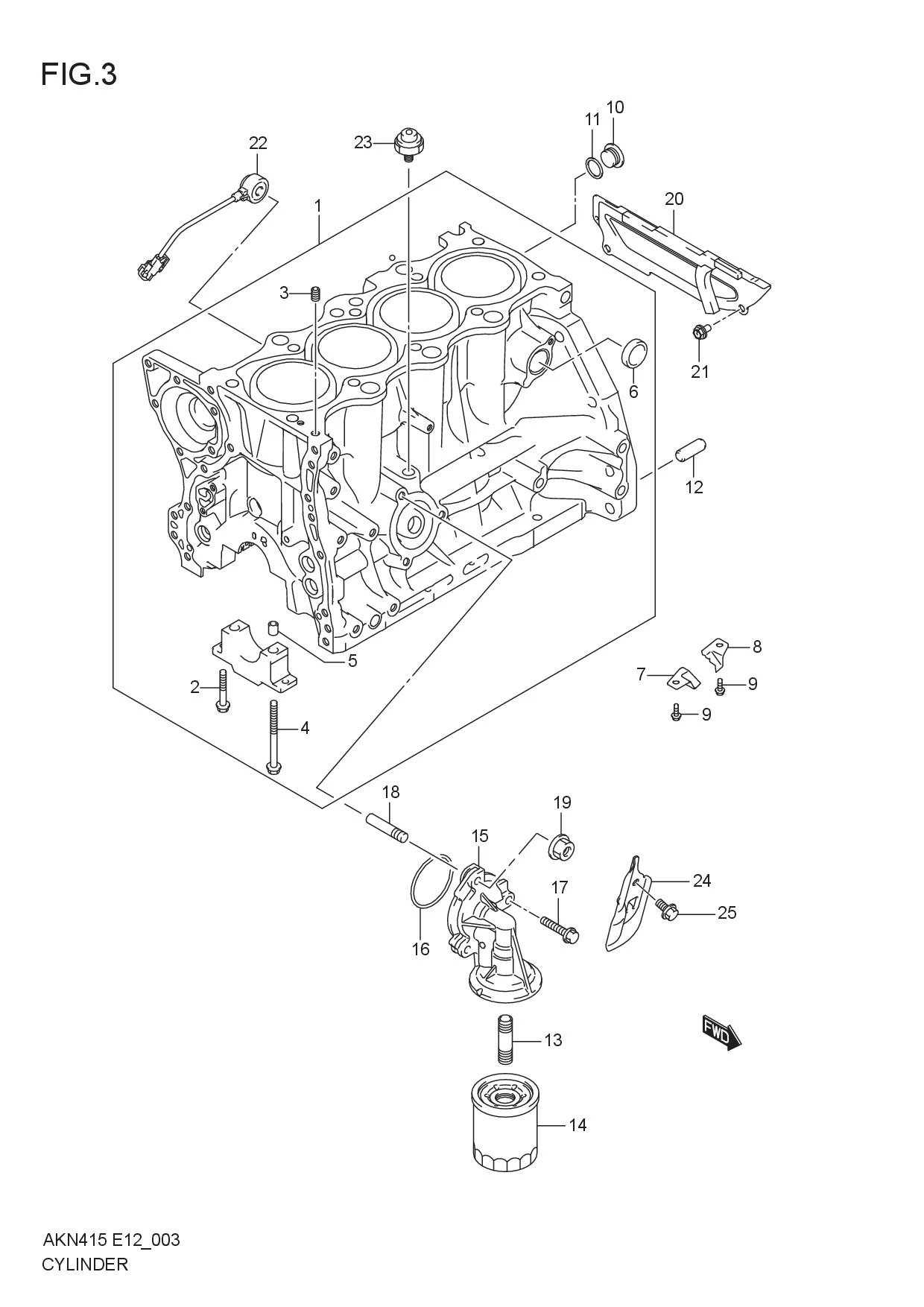

No	No. Part	Description	Qty	Price Per Pcs
1	11200M61MA1-000 SUB: 11200-61MA1-X12	BLOCK ASSY, CYLINDER	1	Rp23.698.000
2	01550-0840A-000 SUB: 01550B0840AN000	.BOLT	10	Rp3.500
3	11112-73010-000	.PLUG, OIL VENTURI	1	Rp24.000
4	11260-69G01-000	.BOLT	10	Rp53.500
5	04211M13189-000	.PIN	5	Rp9.000
6	09241M30010-000	.PLUG (OD:30)	1	Rp5.500
7	DISCONTINUE SUB: 11213-69G00-000	PLATE, BREATHER FRONT	1	-
8	DISCONTINUE SUB: 11214-69G00-000	PLATE, BREATHER REAR	1	-
9	01550-0612B-000	BOLT	2	Rp16.500
10	09248-18011-000	PLUG	1	Rp38.000
11	11216M68K10-000	GASKET	1	Rp8.000
12	11519M67L00-000	PIN (8X23)	2	Rp6.000
13	11241-86FA0-000	STAND, OIL FILTER	1	Rp88.000
14	16510M55K00-000	FILTER ASSY, OIL	1	Rp46.000
15	16531-69G20-000	CASE, OIL FILTER ADAPTER	1	Rp818.500
16	09280-62003-000	O-RING(D:3.5,ID:60.7), OIL ADAPTER CASE	1	Rp43.500
17	01550-0830A-000 SUB: 01550B0830AN000	BOLT	2	Rp4.000
18	09108-08304-000	BOLT	1	Rp32.500
19	08316-1008A-000	NUT	1	Rp3.500
20	11320-63J00-000	PLATE, CLUTCH HSG LOWER	1	Rp136.500
21	11331M65MB0-000	BOLT, CLUTCH HSG LOWER PLATE	2	Rp5.500
22	18640-78K00-000	SENSOR ASSY, KNOCK	1	Rp1.440.000
23	37820M68K00-000	SWITCH ASSY, OIL PRESSURE	1	Rp199.500
24	16533-61M00-000	COVER, OIL PRESSURE SW	1	Rp33.000
25	01550-0612B-000	BOLT	1	Rp16.500
