Preview Engine Transmission Electrical Suspension Body

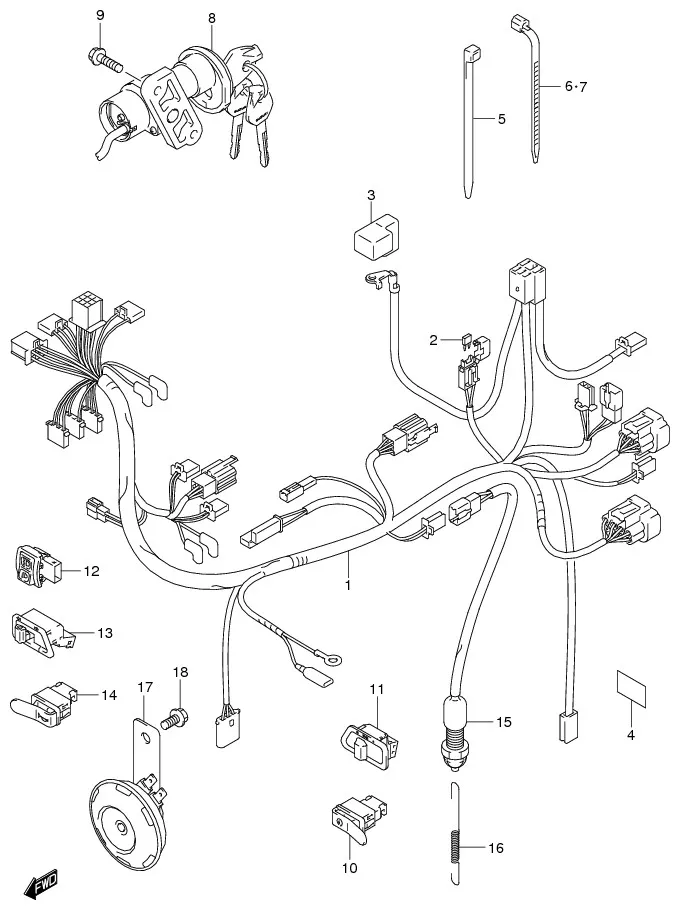

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	36610-45H41-000 SUB: 36610B45H40N000	HARNESS, WIRING	1	Rp290.000	FW110SDL0/SCDL0
1-1	36610-45H31-000 SUB: 36610B45H30N000	HARNESS, WIRING	1	Rp329.500	FW110DL0
2	09481-10501-000	.FUSE (10A)	2	Rp12.000
3	33624-31C10-000	.CAP, BATTERY PLUS	1	Rp9.500
4	36652-07H00-000 SUB: 36652B07H00N000	CUSHION, HARNESS WIRING	1	Rp4.000
5	09407-14407-000	CLAMP, WIRING HARNESS	1	Rp18.500
6	09407-18402-000	CLAMP, WIRING HARNESS	3	Rp8.000
7	DISCONTINUE SUB: 09407B25401N000	CLAMP, WIRING HARNESS	4	-
8-1	37020-46G40-000 SUB: 37020B46G40N000	LOCK SET,STEERING	1	Rp207.000	INCLUDE LOCK,SEAT
8-2	37100-46G40-000 SUB: 37100B46G40N000	LOCK ASSY, STEERING	1	Rp180.500
9	01550-0620A-000	BOLT, STEERING LOCK	2	Rp3.500
10	37310-45H01-000 SUB: 37310B45H00N000	SWITCH ASSY, STARTER	1	Rp26.000
11	37340-10E40-000 SUB: 37340B10E30N000	SWITCH ASSY, LIGHTING	1	Rp46.000
12-1	37420-09G21-000 SUB: 37420B09G21N000	SWITCH ASSY, DIMMER	1	Rp20.500
12-2	37420-10E10-000 SUB: 37420B10E10N000	SWITCH ASSY, DIMMER	1	Rp19.500
13-1	37510-10E30-000 SUB: 37510B10E10N000	SWITCH ASSY, TURNSIGNAL	1	Rp24.000
13-2	37510-10E30-000 SUB: 37510B10E20N000	SWITCH ASSY, TURNSIGNAL	1	Rp24.000
14	37520-45H01-000 SUB: 37520B45H00N000	SWITCH ASSY, HORN	1	Rp26.000
15	37740-09G30-000 SUB: 37740B09G10N000	SWITCH ASSY, STOP LAMP	1	Rp20.000
16	09443-06083-000 SUB: 09443B06083N000	SPRING, STOP LAMP	1	Rp4.000
17	38500-45H10-000 SUB: 38500B45H10N000	HORN ASSY	1	Rp38.000
