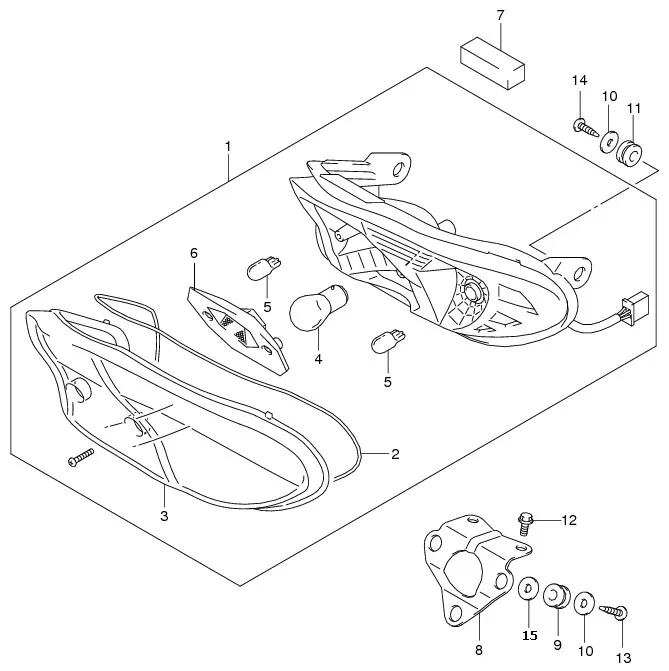

FIG.25 REAR COMBINATION LAMP

FIG.25 REAR COMBINATION LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35710-45H21-000
SUB: 35710B45H20N000		 LAMP ASSY, REAR COMB 1 Rp145.500
2 35711-45H20-000
SUB: 35711B45H20N000		 .GASKET 1 Rp7.000
3 35713-45H20-000
SUB: 35713B45H20N000		 .LENS 1 Rp33.500
4 09471-12127-000
SUB: 09471B12119N000		 .BULB (12V,18/5W) 1 Rp12.500
5 09471-12114AS01
SUB: 09471B12203N000		 .BULB (12V,10W) 2 Rp14.000
6 35912-45H20-000
SUB: 35912B45H20N000		 .LENS INNER (RED) 1 Rp10.500
7 35713-45H00-000
SUB: 35713B45H00N000		 CUSHION, REAR COMB 1 Rp4.000
8 DISCONTINUE
SUB: 35726B45H00N000		 BRACKET, REAR COMB LAMP 1 -
9 35781-45H00-000
SUB: 35781B45H00N000		 CUSHION, REAR COMB LAMP 3 Rp3.000
10 09160-05045-000
SUB: 09160B05045N000		 WASHER, REAR COMB LAMP 5 Rp4.500
11 09320-09016-000
SUB: 09320-09016L000		 CUSHION, REAR COMB LAMP 2 Rp4.000
15 08322-0110B-000
SUB: 08322-0110A-000		 WASHER 3 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
