SMASH TITAN (FW110)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.18 STARTING MOTORFIG.19 MAGNETOFIG.20 BATTERYFIG.21 ELECTRICALFIG.22 SPEEDOMETERFIG.23 FRONT COMBINATION LAMPFIG.24 FRONT TURNSIGNAL LAMPFIG.25 REAR COMBINATION LAMPFIG.26 WIRING HARNESS

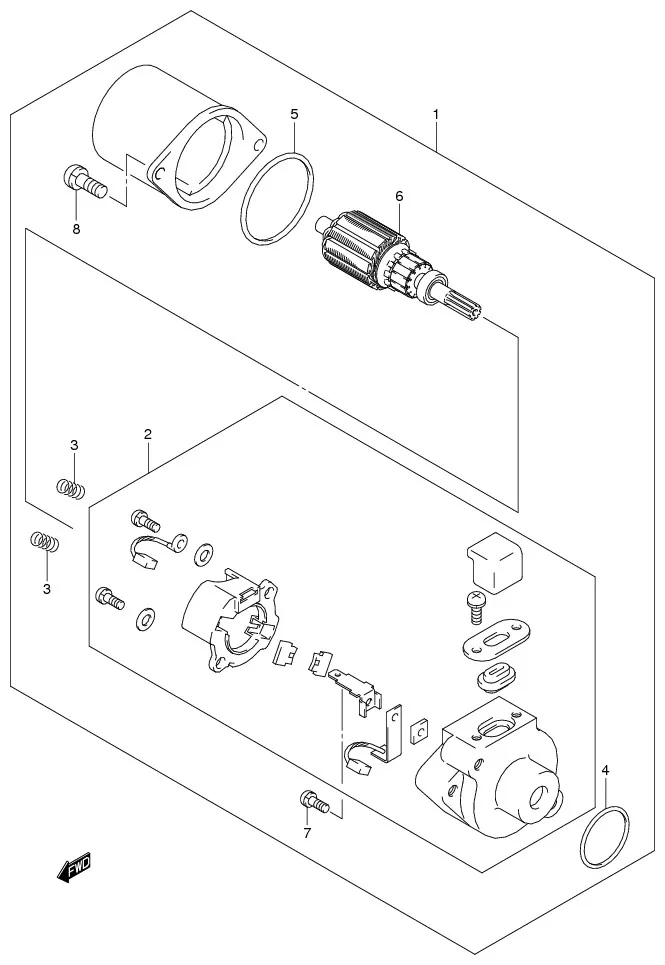

FIG.18 STARTING MOTOR

FIG.18 STARTING MOTOR
No No. Part Description Qty Price Per Pcs Remarks
1 31100-45H02-000
SUB: 31100B45H00N000		 MOTOR ASSY, STARTING 1 Rp304.000
2 31130-30D10-000
SUB: 31130B30D10N000		 .FRONT BRACKET ASSY 1 Rp93.000
3 31135-05B00-000
SUB: 31135-05B00L000		 .SPRING, BRUSH 2 Rp41.000
4 31156-05B00-000
SUB: 31156B05B00N000		 .O RING 1 Rp10.000
5 DISCONTINUE
SUB: 31157-02540-000		 .PACKING 1 -
6 02112-3406A-000 .SCREW 1 Rp11.500
8 31131-21D00-000
SUB: 31131-21D00L000		 .BRUSH SET 1 Rp45.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
