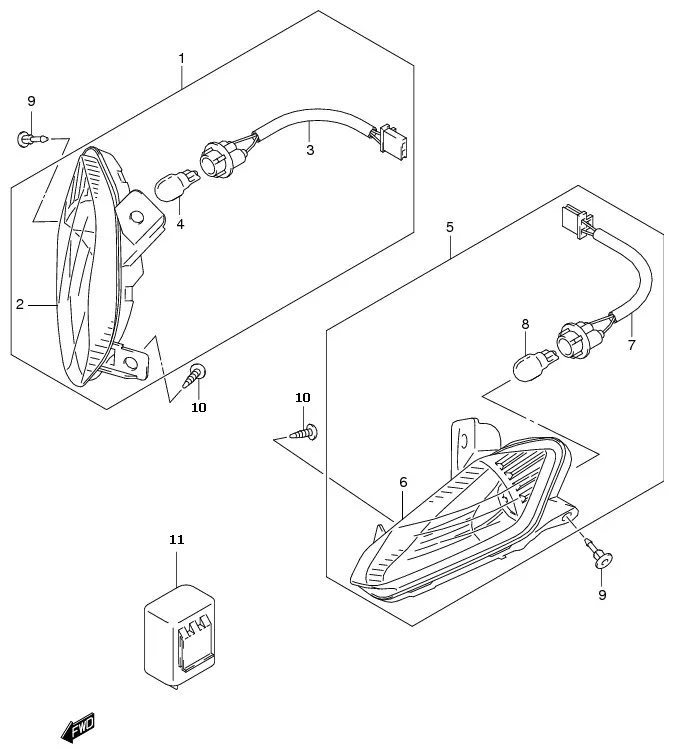

FIG.24 FRONT TURNSIGNAL LAMP

FIG.24 FRONT TURNSIGNAL LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35601-45H21-000
SUB: 35601B45H20N000		 LAMP ASSY, FR TURNSIGNAL RH 1 Rp52.000
2 35612-45H20-000
SUB: 35612B45H20N000		 .LENS FR TURN SIGNAL RH 1 Rp11.000
3 35618-41HB0-000
SUB: 35618B41HB0N000		 .CORD ASSY 1 Rp13.500
4 09471-12114AS01 .BULB (12V,10W) 1 Rp14.000
5 35602-45H21-000
SUB: 35602B45H20N000		 LAMP ASSY, FR TURNSIGNAL LH 1 Rp52.000
6 35632-45H20-000
SUB: 35632B45H20N000		 .LENS FR TURN SIGNAL LH 1 Rp11.000
7 35638-41HB0-000
SUB: 35638B41HB0N000		 .CORD ASSY 1 Rp13.500
9 09409-06314-5PK CLIP (BLACK) 2 Rp3.500
10 03541-0512A-000
SUB: 03541B0512AN000		 SCREW, FR TURNSIGNAL 4 Rp3.500
11 38610-35491-000
SUB: 38610B35491N000		 RELAY ASSY, TURNSIGNAL 1 Rp45.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
