SMASH TITAN (FW110)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.18 STARTING MOTORFIG.19 MAGNETOFIG.20 BATTERYFIG.21 ELECTRICALFIG.22 SPEEDOMETERFIG.23 FRONT COMBINATION LAMPFIG.24 FRONT TURNSIGNAL LAMPFIG.25 REAR COMBINATION LAMPFIG.26 WIRING HARNESS

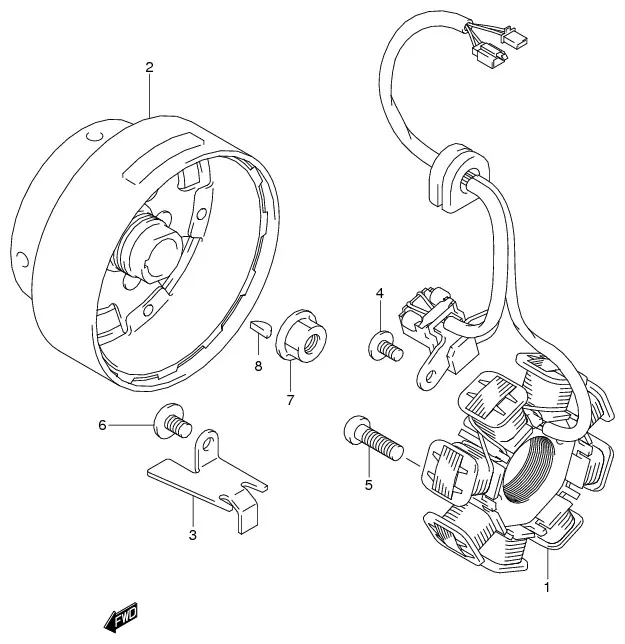

FIG.19 MAGNETO

FIG.19 MAGNETO
No No. Part Description Qty Price Per Pcs Remarks
1 32101-07H20-000
SUB: 32101B07H20N000		 STATOR ASSY 1 Rp242.000
2 32102-45H00-000
SUB: 32102B45H00N000		 ROTOR ASSY 1 Rp202.500
3 32371-30D10-000
SUB: 32371B30D10N000		 CLAMP, MAGNETO LEAD 1 Rp5.500
4 02142-0510A-000
SUB: 02142B0510BN000		 SCREW, SENSOR 2 Rp4.000
5 02112-0620A-000
SUB: 02112B0620BN000		 SCREW, MAGNETO STATOR 2 Rp4.000
6 02142-0610B-000 SCREW, MAGNETO LEAD 1 Rp13.500
7 08316-1012A-000
SUB: 08316B1012BN000		 NUT 1 Rp6.500
8 08341-31039-000
SUB: 08341B31039N000		 KEY 1 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
