SMASH TITAN (FW110)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.18 STARTING MOTORFIG.19 MAGNETOFIG.20 BATTERYFIG.21 ELECTRICALFIG.22 SPEEDOMETERFIG.23 FRONT COMBINATION LAMPFIG.24 FRONT TURNSIGNAL LAMPFIG.25 REAR COMBINATION LAMPFIG.26 WIRING HARNESS

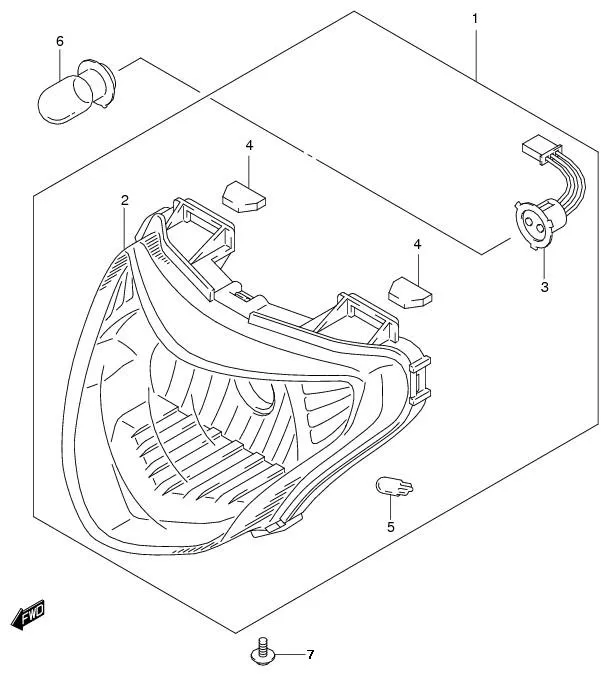

FIG.23 FRONT COMBINATION LAMP

FIG.23 FRONT COMBINATION LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35100-45H10-000
SUB: 35100B45H10N000		 HEADLAMP ASSY 1 Rp151.500
2 35121-45H10-000
SUB: 35121B45H10N000		 .HEADLAMP UNIT 1 Rp106.000
3 35171-31G20-000
SUB: 35171B31G20N000		 .CORD ASSY 1 Rp20.500
4 DISCONTINUE
SUB: 51874B45G00N000		 .CUSHION 2 -
5 09471-12028-000
SUB: 09471B12028N000		 .BULB (12V,3.4W,T10) 1 Rp8.000
6 09471-12213-000
SUB: 09471B12213N000		 BULB (12V32/32W) 1 Rp35.500
7 09136-05065-000 SCREW, HEADLAMP (5X10) 1 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
