SMASH TITAN (FW110)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.18 STARTING MOTORFIG.19 MAGNETOFIG.20 BATTERYFIG.21 ELECTRICALFIG.22 SPEEDOMETERFIG.23 FRONT COMBINATION LAMPFIG.24 FRONT TURNSIGNAL LAMPFIG.25 REAR COMBINATION LAMPFIG.26 WIRING HARNESS

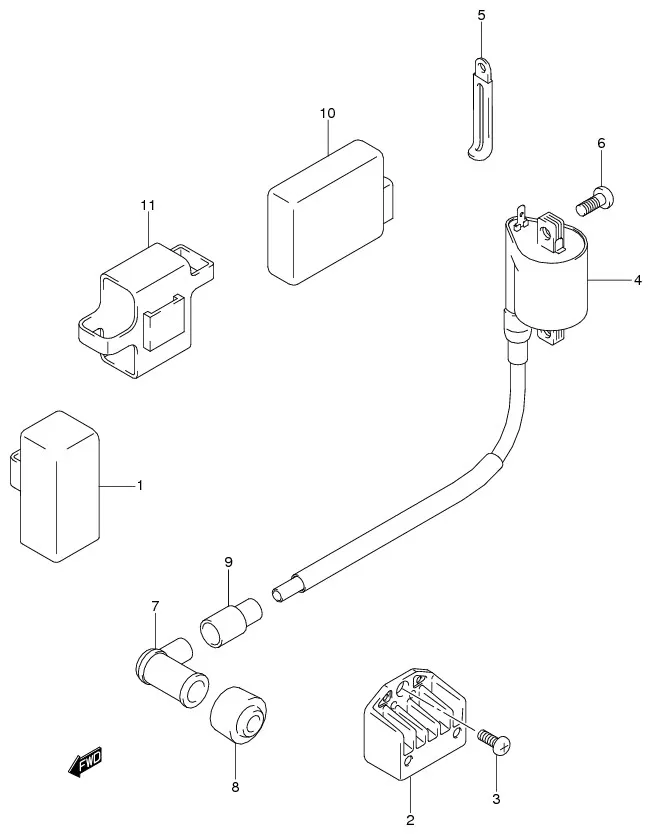

FIG.21 ELECTRICAL

FIG.21 ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 31800-16H00-000
SUB: 31800B16H00N000		 RELAY ASSY, STARTING MOTOR 1 Rp64.500
2 32800-45H01-000
SUB: 32800B45H00N000		 RECTIFIER ASSY 1 Rp127.000
3 02112-0612A-000 SCREW, RECTIFIER 1 Rp3.500
4 33410-45H10-000
SUB: 33410B45H10N000		 COIL ASSY, IGNITION 1 Rp72.500
5 09404-06429-000
SUB: 09404B06429N000		 CLAMP (L:45) 1 Rp15.000
6 02112-0616A-000 SCREW, IGNITION COIL 2 Rp3.500
7 33510-07HX0-000
SUB: 33510B07H00N000		 CAP, SPARK PLUG 1 Rp39.500
8 33510-07HX0-000
SUB: 33541B07H00N000		 SEAL, SPARK PLUG 1 Rp39.500
9 33510-07HX0-000
SUB: 33542B07H00N000		 SEAL, HIGH TENSION CORD 1 Rp39.500
10 32900-45H31-000
SUB: 32900B45H10N000		 CDI UNIT 1 Rp431.000
11 32980-45H00-000
SUB: 32980B45H00N000		 CUSHION, CDI UNIT 1 Rp32.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
