SMASH TITAN (FW110)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.18 STARTING MOTOR FIG.19 MAGNETO FIG.20 BATTERY FIG.21 ELECTRICAL FIG.22 SPEEDOMETER FIG.23 FRONT COMBINATION LAMP FIG.24 FRONT TURNSIGNAL LAMP FIG.25 REAR COMBINATION LAMP FIG.26 WIRING HARNESS

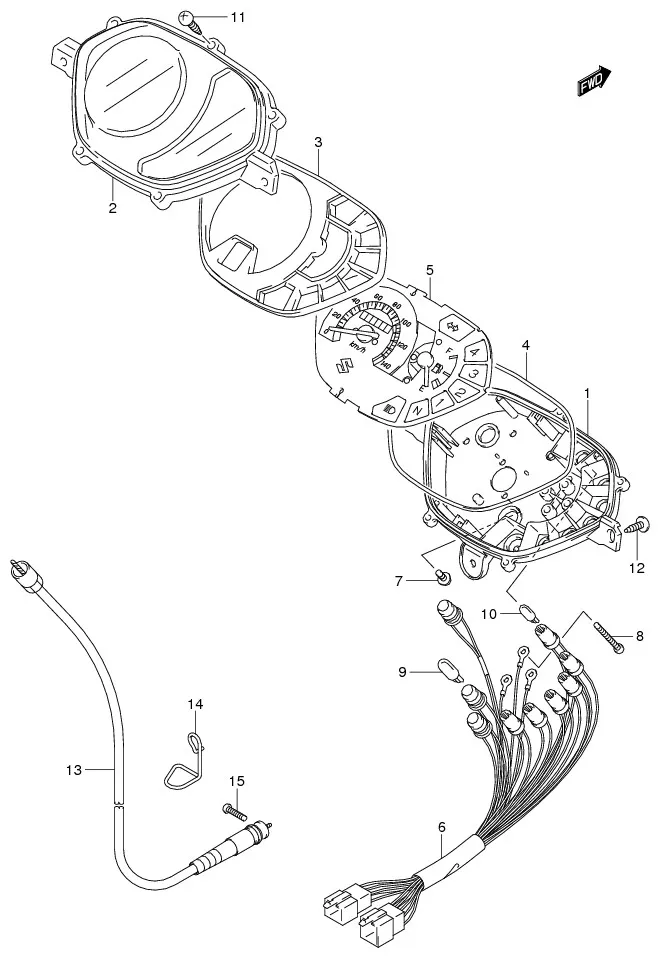

FIG.22 SPEEDOMETER

FIG.22 SPEEDOMETER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	34111-45H00-000 SUB: 34111B45H00N000	CASE ASSY, LOWER	1	Rp30.000
2	34112-45H00-000 SUB: 34112B45H00N000	CASE ASSY, UPPER	1	Rp34.000
3	34113-45H00-000 SUB: 34113B45H00N000	PLATE	1	Rp8.500
4	34114-45H00-000 SUB: 34114B45H00N000	CUSHION	1	Rp3.000
5	34120-45H10-000 SUB: 34120B45H10N000	SPEEDOMETER	1	Rp150.000
6	34173-45H00-000 SUB: 34173B45H00N000	SOCKET, BULB	1	Rp66.500
7	DISCONTINUE SUB: 34186B09G00N000	SCREW (4X8)	2	-
8	DISCONTINUE SUB: 34383B09G00N000	SCREW (3X20)	3	-
9	09471-12077-000 SUB: 09471B12077N000	BULB (12V1.7W,T10)	3	Rp6.000
10	09471-12108-000 SUB: 09471B12108N000	BULB (12V1.7W,T6.5)	6	Rp9.500
11	34149-45H00-000 SUB: 34149B45H00N000	SCREW, METER	5	Rp3.000
12	03541-0516A-000 SUB: 03541B0516AN000	SCREW, SPEEDOMETER	3	Rp3.500
13-1	34910-45H30-000 SUB: 34910B45H30N000	CABLE ASSY, SPEEDOMETER	1	Rp44.500	FW110DL0
13-2	34910-45H20-000 SUB: 34910B45H20N000	CABLE ASSY, SPEEDOMETER	1	Rp44.000	FW110SDL0/SCDL0
14	DISCONTINUE SUB: 34931B20G00N000	GUIDE, SPEEDOMETER CABLE	1	-
15	02112-0516A-000 SUB: 02112B0516AN000	SCREW, SPEEDOMETER CABLE	1	Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
