Preview Engine Transmission Electrical Suspension Body

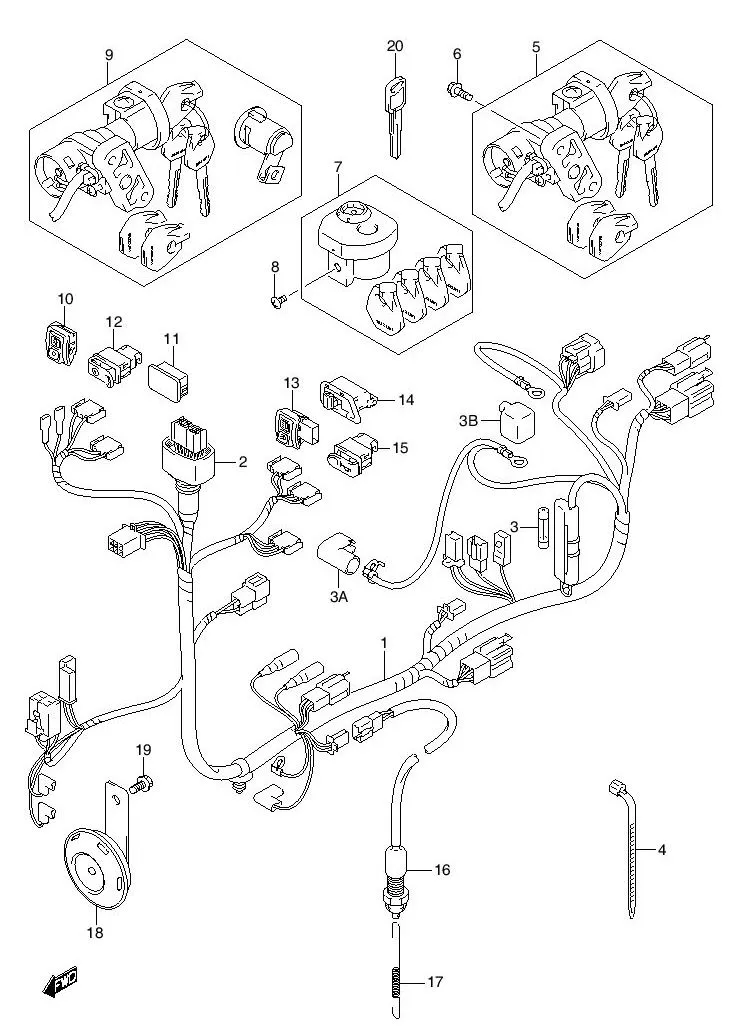

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	36610-20G90-DEM SUB: 36610B20G90N000	HARNESS, WIRING	1	Rp707.500	FD125XRM
1-1	36610-20G61-DEM SUB: 36610B20G60N000	HARNESS, WIRING	1	Rp845.000	FD125XSD ; FD125XRD
2	36618-20G00-000 SUB: 36618B20G00N000	•BOOT, MOTOR COUPLER	1	Rp40.500
3	09481-10501-000 SUB: 09481M10501-000	•FUSE (10A)	2	Rp12.000
3A	31861-10D00-000	•CAP, STARTER RELAY	1	Rp12.000	FD125XSD ; FD125XRD
3B	33624-38D00-000	•CAP, BATTERY TERMINAL	1	-
4-1	09407-18402-000 SUB: 09407B18402N000	CLAMP (L:165)	3	Rp8.000
4-2	DISCONTINUE SUB: 09407-25401L000	CLAMP (L:235)	1	-
5	37100-20G20-000 SUB: 37111B20810N000	LOCK ASSY, STEERING SET	1	Rp237.000
6	01550-0620B-000 SUB: 01550-06203L000	BOLT	2	Rp3.500
7	DISCONTINUE SUB: 37155B20G00N000	SHUTTER, STEERING LOCK	1	-
8	02142-05803-000	SCREW	1	-
9	37019-20G20-000 SUB: 37019B20G20N000	LOCK SET	1	Rp248.500
10	37340-09G00-000 SUB: 37340B09G00N000	SWITCH ASSY, LIGHTING	1	Rp20.500
11	56322-09G00-000	CAP, HANDLE REAR COVER	1	Rp9.000
12	37310-09G30-000 SUB: 37310B10E00N000	SWITCH ASSY, STARTER	1	Rp27.500	FD125XSD ; FD125XRD
13	37420-10E10-000 SUB: 37420B10E00N000	SWITCH ASSY, DIMMER	1	Rp19.500
14	37510-10E00-000 SUB: 37510B10E00N000	SWITCH ASSY, TURNSIGNAL	1	Rp24.500
15	37520-09G40-000 SUB: 37520B10E00N000	SWITCH ASSY, HORN	1	Rp25.500
16	37740-45D00-000 SUB: 37740B45D00N000	SWITCH ASSY, STOP LAMP	1	Rp18.500
17	09443-06083-000 SUB: 09443-06083L000	SPRING	1	Rp4.000
18	38500-09G01-000 SUB: 38500B09G01N000	HORN ASSY	1	Rp52.500
19	DISCONTINUE SUB: 01550B06123N000	BOLT	1	-
20	37146-33E00-000	KEY, BLANK	1	Rp145.000	OPT
