SHOGUN (FD125)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.17 KICK STARTER FIG.18 STARTER MOTOR 125XSD FIG.19 MAGNETO FIG.20 BATTERY FIG.21 ELECTRICAL FIG.22 SPEEDOMETER FIG.23 HEADLAMP/TURN SIGNAL LAMP FIG.24 REAR COMBINATION, LAMP FIG.25 WIRING HARNESS

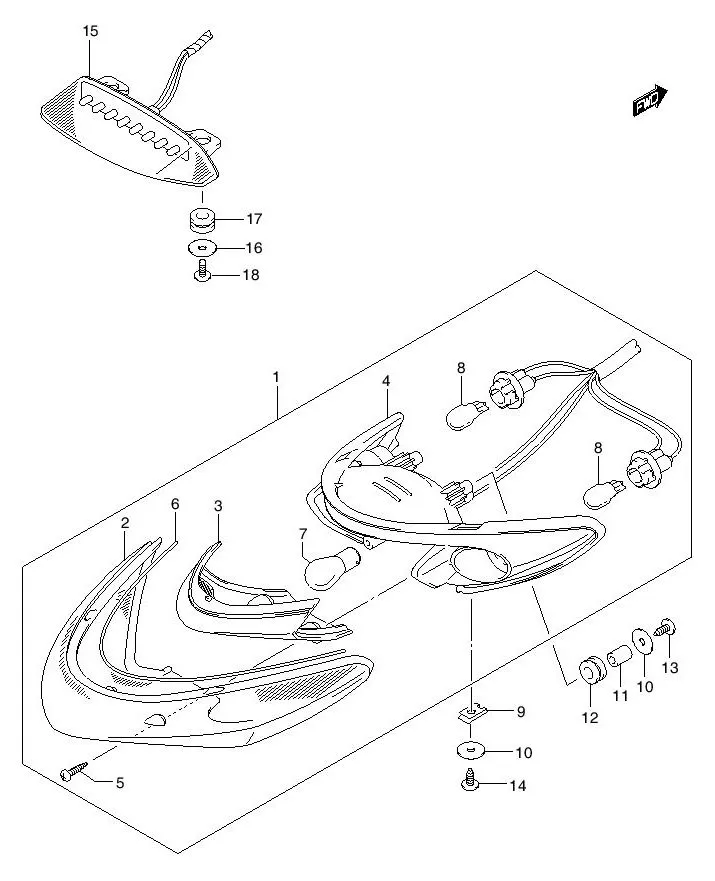

FIG.24 REAR COMBINATION, LAMP

FIG.24 REAR COMBINATION, LAMP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 35710B20G00N000	LAMP ASSY, REAR COMB	1	-
2	35712-20G02-000 SUB: 35712B20G00N000	•LENS	1	Rp33.000
3	DISCONTINUE SUB: 35912B20G00N000	•INNER LENS	1	-
4	DISCONTINUE SUB: 35718B20G00N000	•HOUSING	1	-
5	03211-04206-000 SUB: 03211B04206N000	•SCREW	2	Rp3.500
6	DISCONTINUE SUB: 35713B20G00N000	•GASKET	1	-
7	09471-12127-000 SUB: 09471B12119N000	•BULB (12V18/5W)	1	Rp12.500
8	09471-12114AS01 SUB: 09471B12203N000	•BULB (12V/10W)	2	Rp14.000
9	09148-05038-000 SUB: 09148B05038N000	NUT	2	Rp4.000
10	09160-05045-000 SUB: 09160B05045N000	WASHER (5.5X18X1.0)	2	Rp4.500
11	48211-09G00-000 SUB: 48211B09G00N000	SPACER, REAR COMB	2	Rp3.000	6.1X9X9
12	09320-09016-000 SUB: 09320-09016L000	CUSHION	2	Rp4.000
13	03541-0516A-000 SUB: 03541B05163N000	SCREW, REAR COMB	2	Rp3.500
14	03541-0520A-000 SUB: 03541B05203N000	SCREW, RR COMB UNDER	2	Rp3.500
15	DISCONTINUE SUB: 35810B20G00N000	LAMP ASSY, STOP	1	-	FD125XSD
16	09160-05501-000	WASHER (5.5X20X1.2)	2	Rp12.000	FD125XSD
17	09320-09016-000 SUB: 09320-09016L000	CUSHION	2	Rp4.000	FD125XSD
18	02142-0512A-000 SUB: 02142B05123N000	SCREW	2	Rp3.500	FD125XSD

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
