SHOGUN (FD125)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.17 KICK STARTER FIG.18 STARTER MOTOR 125XSD FIG.19 MAGNETO FIG.20 BATTERY FIG.21 ELECTRICAL FIG.22 SPEEDOMETER FIG.23 HEADLAMP/TURN SIGNAL LAMP FIG.24 REAR COMBINATION, LAMP FIG.25 WIRING HARNESS

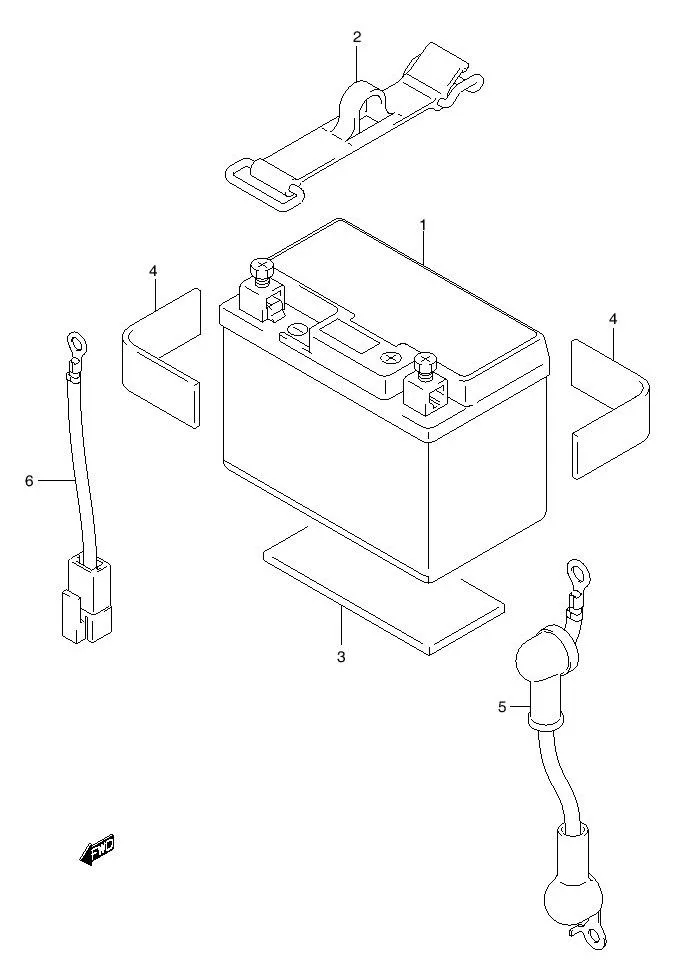

FIG.20 BATTERY

FIG.20 BATTERY

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-1	33610-20GG0-000 SUB: 33610B20GA0N000	BATTERY (YTZ5S,12V3.5H)	1	Rp413.000	FD125XRD ; FD125XSD
1-2	DISCONTINUE SUB: 33610-20G00-000	BATTERY (YTZ3,12V2.5H)	1	-	FD125XRM
2	33651-20G00-000 SUB: 33651B20G00N000	BAND, BATTERY	1	Rp12.500
3	DISCONTINUE SUB: 33652B28C00N000	PROTECTOR, BATTERY A	1	-	(40X85X3)
4	DISCONTINUE SUB: 33652B38A10N000	PROTECTOR, BATTERY B	2	-	(20X90X2)
5	DISCONTINUE SUB: 33810B20G00N000	WIRE, STARTER MOTOR	1	-	FD125XRD ; FD125XSD
6	DISCONTINUE SUB: 33860-30D10L000	WIRE, BATTERY MINUS LEAD	1	-	FD125XRD ; FD125XSD
7	31861-48B10-000 SUB: 31861-48B10L000	•CAP, STARTER MOTOR	1	Rp5.000	NO ILLUSTRATION

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
