SHOGUN (FD125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.17 KICK STARTERFIG.18 STARTER MOTOR 125XSDFIG.19 MAGNETOFIG.20 BATTERYFIG.21 ELECTRICALFIG.22 SPEEDOMETERFIG.23 HEADLAMP/TURN SIGNAL LAMPFIG.24 REAR COMBINATION, LAMPFIG.25 WIRING HARNESS

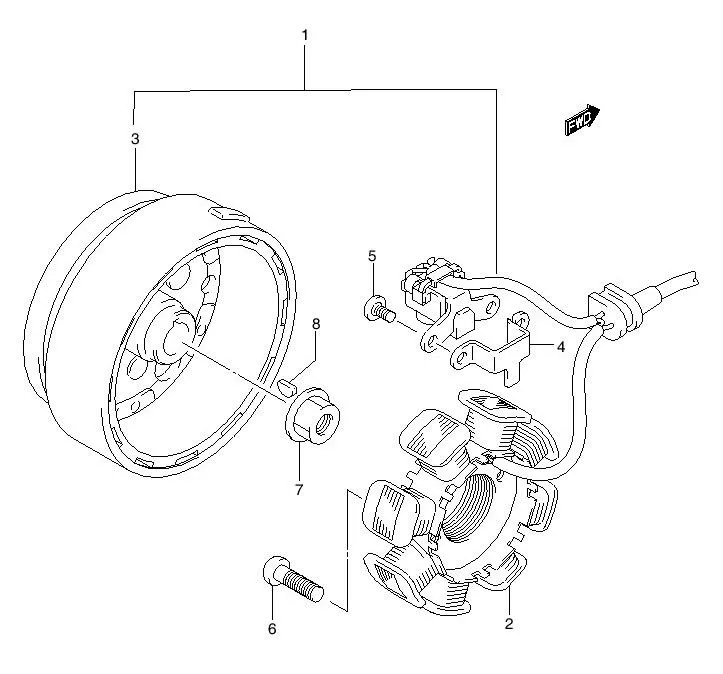

FIG.19 MAGNETO

FIG.19 MAGNETO
No No. Part Description Qty Price Per Pcs Remarks
1-1 DISCONTINUE
SUB: 32100B20G00N000		 MAGNETO ASSY 0 - FD125XRD ; FD125XSD
1-2 DISCONTINUE
SUB: 32100B20G40N000		 MAGNETO ASSY 0 - FD125XRM
2-1 DISCONTINUE
SUB: 32101B20G20N000		 STATOR ASSY 1 - FD125XRD ; FD125XSD
2-2 32101-20G40-000
SUB: 32101B20G40N000		 STATOR ASSY 1 Rp249.500 FD125XRM
3-1 DISCONTINUE
SUB: 32102B20G20N000		 ROTOR ASSY 1 - FD125XRD ; FD125XSD
3-2 DISCONTINUE
SUB: 32102B20G40N000		 ROTOR ASSY 1 - FD125XRM
4 DISCONTINUE
SUB: 32371B20G10N000		 CLAMP, MAGNETO LEAD 1 -
5 DISCONTINUE
SUB: 02112-05103-000		 SCREW, SENSOR 2 -
6 02112-0620A-000
SUB: 02112-06203-000		 SCREW, MAGNETO STATOR 2 Rp4.000
7 08316-1012A-000
SUB: 08316-10123-000		 NUT, MAGNETO ROTOR 1 Rp6.500
8 08341-31039-000
SUB: 08341B31039N000		 KEY, MAGNETO ROTOR 1 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
