SHOGUN (FD125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.17 KICK STARTERFIG.18 STARTER MOTOR 125XSDFIG.19 MAGNETOFIG.20 BATTERYFIG.21 ELECTRICALFIG.22 SPEEDOMETERFIG.23 HEADLAMP/TURN SIGNAL LAMPFIG.24 REAR COMBINATION, LAMPFIG.25 WIRING HARNESS

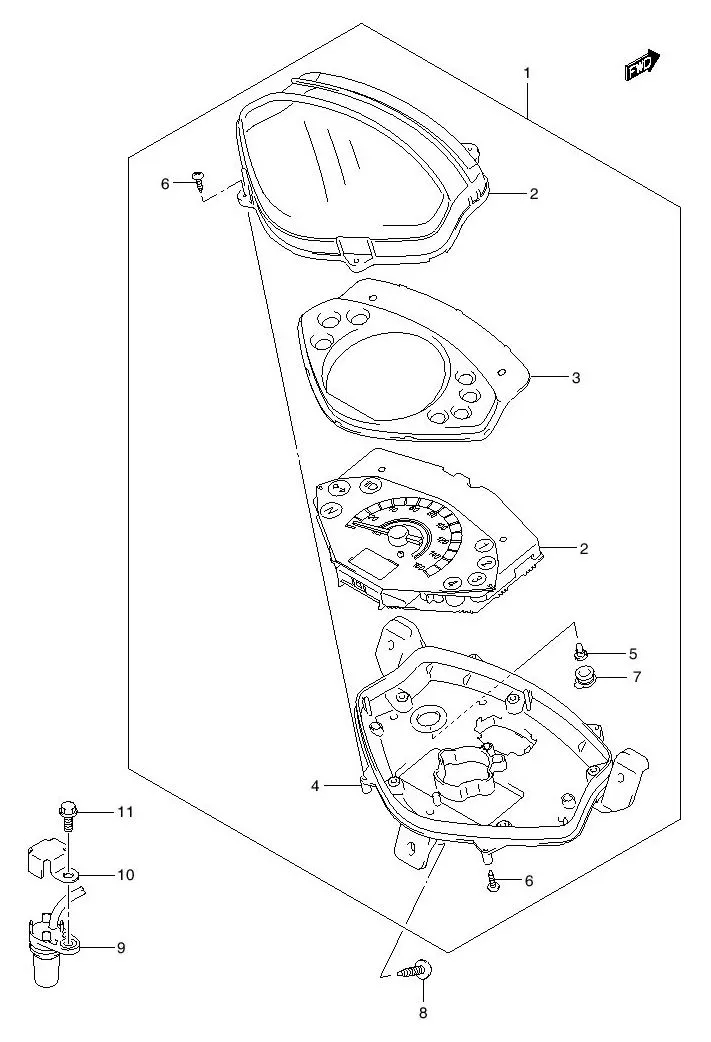

FIG.22 SPEEDOMETER

FIG.22 SPEEDOMETER
No No. Part Description Qty Price Per Pcs Remarks
1-1 34100-20G00-000
SUB: 34100B20G00N000		 SPEEDOMETER ASSY 1 Rp753.500 FD125XSD
1-2 34100-20G10-000
SUB: 34100B20G10N000		 SPEEDOMETER ASSY 1 Rp753.500 FD125XRD ; FD125RMK
2 34150-20G00-000
SUB: 34150B20G00N000		 •GLASS ASSY 1 Rp32.500
3-1 DISCONTINUE
SUB: 34125B20G00N000		 •REFLECTOR ASSY 1 - FD125XSD
3-2 34125-20G10-000
SUB: 34125B20G10N000		 •REFLECTOR ASSY 1 Rp54.500 FD125XRD ; FD125RMK
4 DISCONTINUE
SUB: 34111B20G10N000		 •LOWER CASE ASSY 1 -
5 DISCONTINUE
SUB: 34171B20G00N000		 •SOCKET LAMP ASSY 1 -
6 34149-03G00-000
SUB: 34149B03G00N000		 •SCREW (3X14) 10 Rp3.500
7 DISCONTINUE
SUB: 34198B20G00N000		 •GROMMET 1 -
8 03541-0520A-000
SUB: 03541B05203N000		 SCREW, SPEEDOMETER 3 Rp3.500
9 34990-20G01-000
SUB: 34990B20G00N000		 SENSOR, SPEED 1 Rp182.000
10 DISCONTINUE
SUB: 34994B20G00N000		 COVER, SPEED SENSOR 1 -
11 07130-0616A-000
SUB: 07130-06163-000		 BOLT 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
