SHOGUN (FD125)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.17 KICK STARTER FIG.18 STARTER MOTOR 125XSD FIG.19 MAGNETO FIG.20 BATTERY FIG.21 ELECTRICAL FIG.22 SPEEDOMETER FIG.23 HEADLAMP/TURN SIGNAL LAMP FIG.24 REAR COMBINATION, LAMP FIG.25 WIRING HARNESS

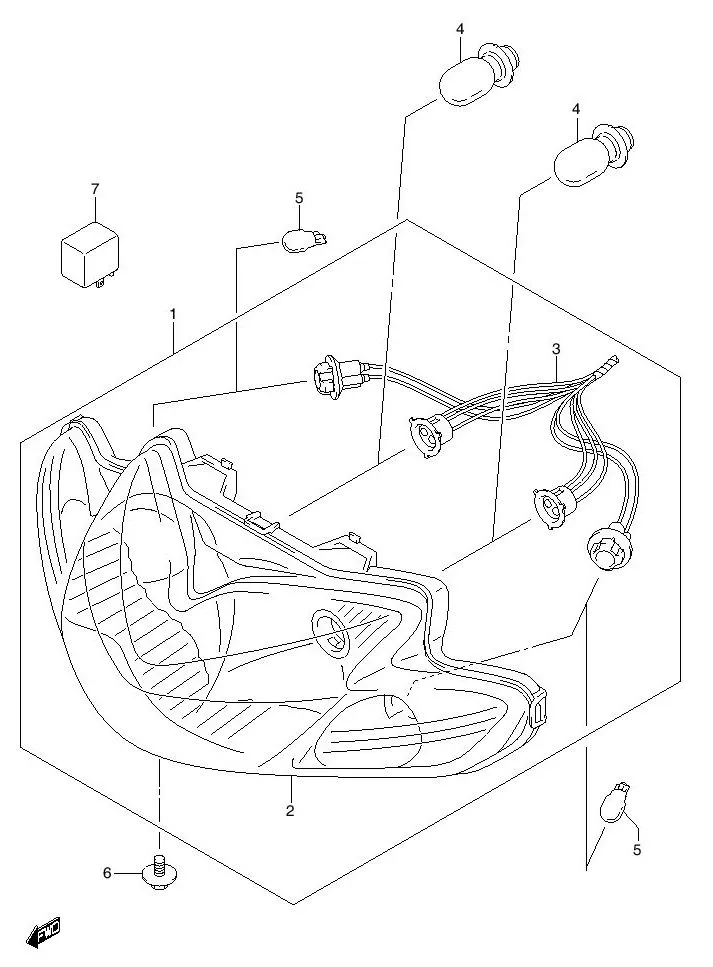

FIG.23 HEADLAMP/TURN SIGNAL LAMP

FIG.23 HEADLAMP/TURN SIGNAL LAMP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	35100-20G00-000 SUB: 35100B20G00N000	HEADLAMP ASSY	1	Rp204.500
2	35121-20G00-000 SUB: 35121B20G00N000	•UNIT HEAD LAMP	0	Rp141.000
3	35171-20G00-000 SUB: 35171B20G00N000	•CORD	1	Rp27.000
4	09471-12013-000 SUB: 09471B12190N000	BULB (12V25/25W,H1)	2	Rp15.000	FOR CLEAR
5	09471-12114AS01 SUB: 09471B12203N000	BULB (12V10W)	2	Rp14.000	FOR AMBER
6	09136-05051-000 SUB: 09136B05051N000	SCREW, HEADLAMP	1	Rp6.500
7	38610-35491-000 SUB: 38610B09410N000	RELAY ASSY, TURN SIGNAL	1	Rp45.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
