SHOGUN (FD125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.17 KICK STARTERFIG.18 STARTER MOTOR 125XSDFIG.19 MAGNETOFIG.20 BATTERYFIG.21 ELECTRICALFIG.22 SPEEDOMETERFIG.23 HEADLAMP/TURN SIGNAL LAMPFIG.24 REAR COMBINATION, LAMPFIG.25 WIRING HARNESS

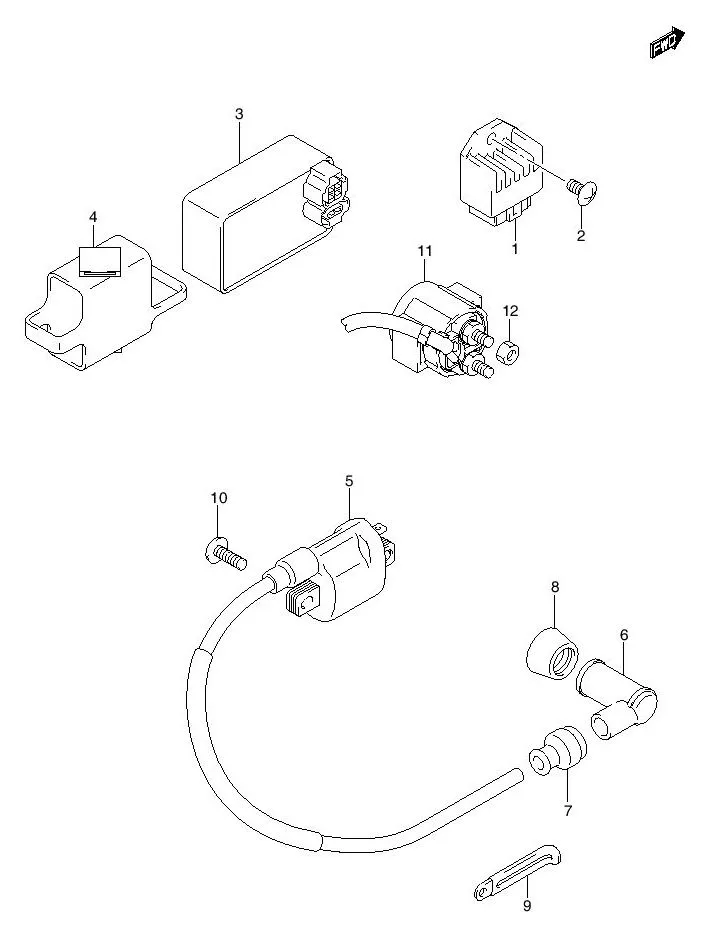

FIG.21 ELECTRICAL

FIG.21 ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 32800-41H01-000
SUB: 32800B47E00N000		 RECTIFIER ASSY 1 Rp117.500
2 02112-0612A-000
SUB: 02112B06123N000		 SCREW 1 Rp3.500
3-1 32900-20G10-000
SUB: 32900B20G10N000		 CDI UNIT 1 Rp545.500 FD125XSD
3-2 32900-20G40-000
SUB: 32900B20G40N000		 CDI UNIT 1 Rp545.500 FD125XRD ; FD125XRM
4 32980-20G10-000
SUB: 32980B20G10N000		 CUSHION, CDI UNIT 1 Rp12.000
5 33410-20G10-000
SUB: 33410B20G00N000		 COIL ASSY, IGNITION 1 Rp64.000
6 33510-22010AS01
SUB: 33510B20G00N000		 CAP, SPARK PLUG 1 Rp39.500
7 DISCONTINUE
SUB: 33542-38B00L000		 SEAL, HIGH TENSION CORD 1 -
8 33541-38210-000 SEAL, SPARK PLUG 1 Rp11.000
9 09404-06429-000
SUB: 09404B06429N000		 CLAMP, HIGH TENSION (L:45) 1 Rp15.000
10 02112-0616B-000
SUB: 02112B06163N000		 SCREW, IGNITION COIL 2 Rp6.500
11 31800-31C00-000
SUB: 31800-31C00L000		 RELAY ASSY, STARTING MOTOR 1 Rp77.000 FD125XRD ; FD125XSD
12 08361-3506A-000
SUB: 08361-35068-000		 NUT, STG MOT 2 Rp4.000 FD125XRD ; FD125XSD

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
