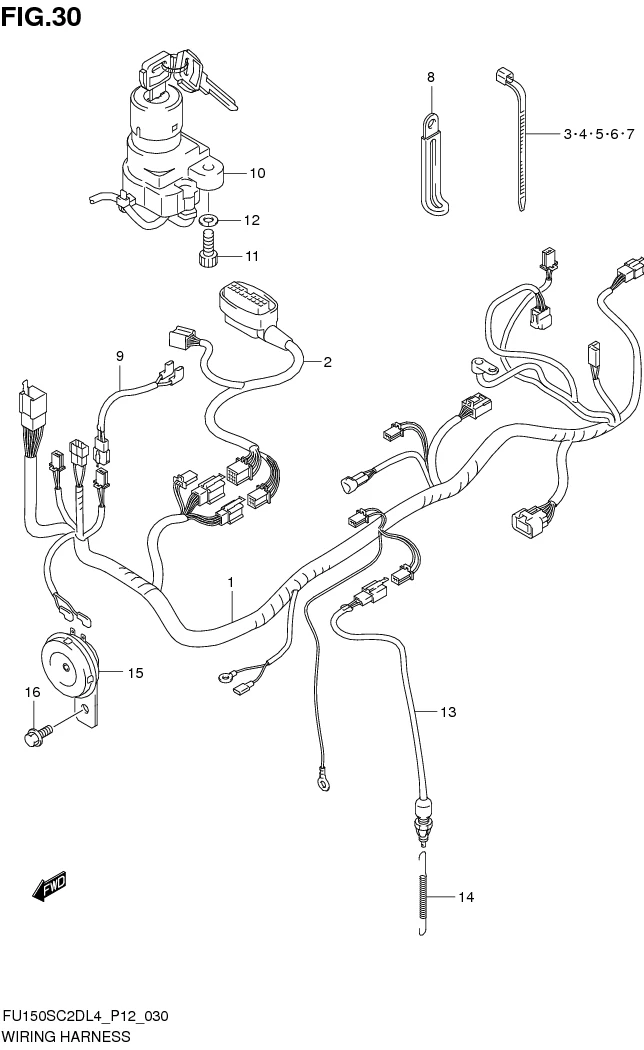

FIG.30 WIRING HARNESS

FIG.30 WIRING HARNESS

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	36610-25GA0-000 SUB: 36610B25GA0N000	HARNESS, WIRING	1	Rp336.500
2	36620-25GA0-000 SUB: 36620B25GA0N000	HARNESS, WIRING NO.2	1	Rp53.000
3	36990-25G00-000 SUB: 36990B25G00N000	CLAMP (L:95)	3	Rp13.000
4	36990-25G20-000 SUB: 36990B25G20N000	CLAMP (L:165)	5	Rp9.500
5	36990-25G30-000 SUB: 36990B25G30N000	CLAMP (L:236)	1	Rp11.500
6	36990-25G00-000 SUB: 09407-14403L000	CLAMP (L:125)	2	Rp13.000
7	09407-14407-000	CLAMP (L:145)	1	Rp18.500
8	09404-06429-000 SUB: 09404B06429N000	CLAMP (L:45)	3	Rp15.000
9	36852-25G00-000 SUB: 36852B25G00N000	WIRE, DISC BRAKE LEAD	1	Rp45.500
10	37100-25G10-000 SUB: 37100B25G10N000	LOCK ASSY, STEERING	1	Rp175.000
11	07130-0616A-000 SUB: 07130B0616AN000	BOLT	2	Rp3.500
12	DISCONTINUE SUB: 08321B0106BN000	WASHER, LOCK	2	-
13-1	37740-35390-000 SUB: 37740B20G00N000	SWITCH ASSY, STOP LAMP	1	Rp17.000
13-2	37740-45D00-000 SUB: 37740B45D00N000	SWITCH ASSY, STOP LAMP OPT	1	Rp18.500	OPT
14	09443-06075-000 SUB: 09443B06075N000	SPRING	1	Rp3.000
15	38500-25G20-000 SUB: 38500B25G20N000	HORN ASSY	1	Rp55.000
16	01550-0610B-000 SUB: 01550B0610AN000	BOLT	1	Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
