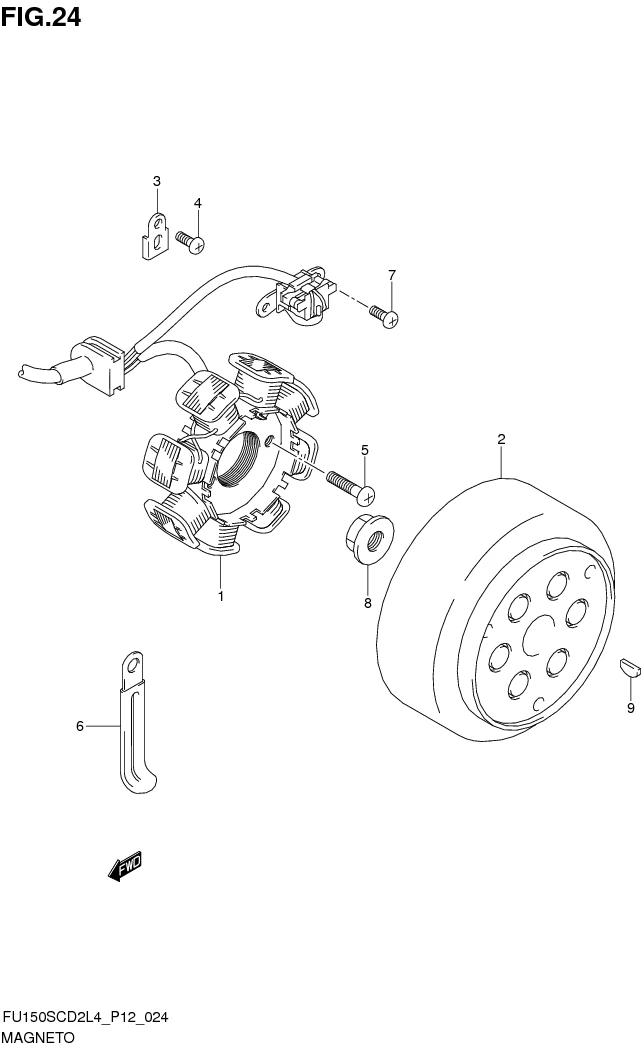

FIG.24 MAGNETO

FIG.24 MAGNETO
No No. Part Description Qty Price Per Pcs Remarks
1 32101-25G20-000
SUB: 32101B25G20N000		 STATOR ASSY 1 Rp274.000
2 32102-25G20-000
SUB: 32102B25G20N000		 ROTOR ASSY 1 Rp263.000
3 DISCONTINUE
SUB: 31497B45000N000		 CLAMP, SENSOR 1 -
4 02142-0510A-000
SUB: 02142B0510AN000		 SCREW 1 Rp4.000
5 02112-0620A-000
SUB: 02112B0620AN000		 SCREW 2 Rp4.000
6 DISCONTINUE
SUB: 09404B06433N000		 CLAMP (L:80) 1 -
7 02142-0510A-000
SUB: 02142B0510AN000		 SCREW, SENSOR 2 Rp4.000
8 08316-1012A-000
SUB: 08316B1012AN000		 NUT 1 Rp6.500
9 08341-31039-000
SUB: 08341B31039N000		 KEY 1 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
