Satria FU150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.23 STARTING MOTOR FIG.24 MAGNETO FIG.25 BATTERY FIG.26 ELECTRICAL FIG.27 SPEEDOMETER FIG.28 HEADLAMP FIG.29 REAR COMBINATION LAMP FIG.30 WIRING HARNESS FIG.31 HANDLE SWITCH

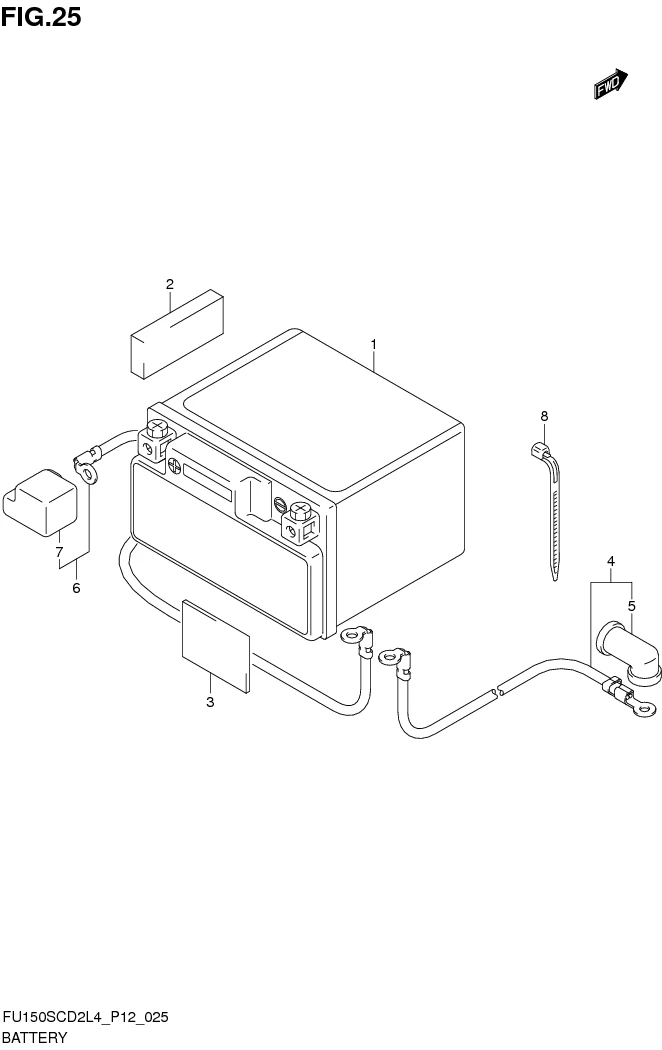

FIG.25 BATTERY

FIG.25 BATTERY
No No. Part Description Qty Price Per Pcs Remarks
1 33610-25G10-000
SUB: 33610B25G10N000		 BATTERY (FTZ7S,12V6AH) 1 Rp434.500
2 33652-35400-000
SUB: 33652B35400N000		 PROTECTOR (20X50X8) 1 Rp7.000
3 33652-36100-000
SUB: 33652-36100L000		 PROTECTOR (30X40X2.0) 1 Rp3.500
4 33810-25G00-000
SUB: 33810B25G00N000		 WIRE, STARTER MOTOR 1 Rp46.500
5 31861-48B10-000
SUB: 31861-48B10L000		 •CAP STARTER MOTOR LEAD 1 Rp5.000
6 33820-25G00-000
SUB: 33820B25G00N000		 WIRE, BATTERY PLUS 1 Rp54.500
7 33624-31C10-000 •CAP 1 Rp9.500
8 36990-25G20-000
SUB: 36990B25G20N000		 CLAMP (L:165) 1 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
