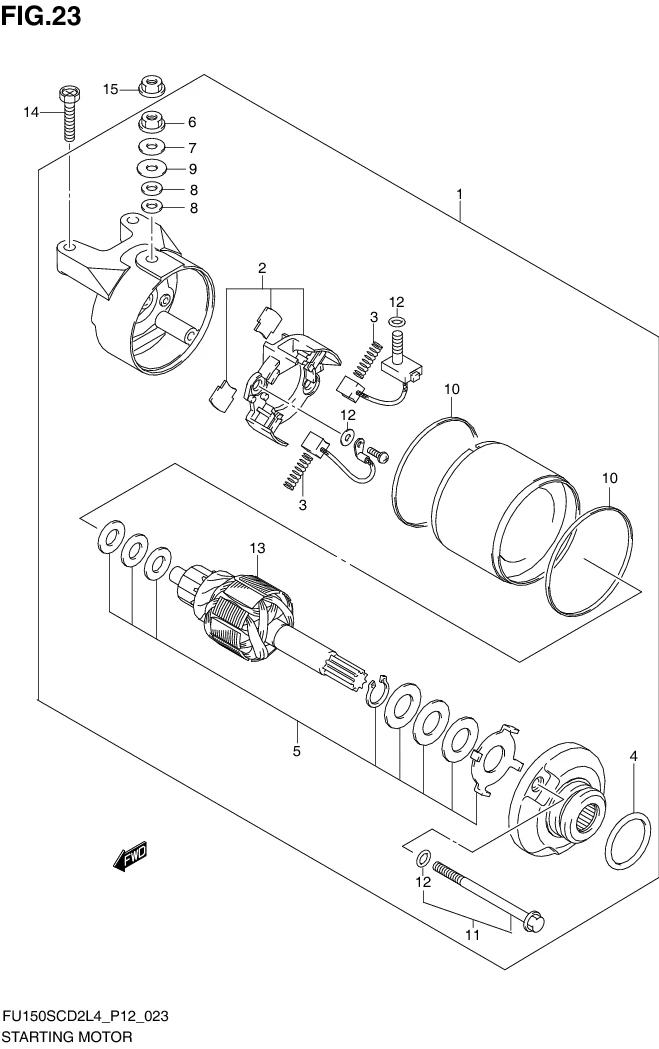

FIG.23 STARTING MOTOR

FIG.23 STARTING MOTOR
No No. Part Description Qty Price Per Pcs Remarks
1 31100-25G10-000
SUB: 31100B25G10N000		 MOTOR ASSY, STARTING 1 Rp576.000
2 31130-20G00-000
SUB: 31130B20G00N000		 •HOLDER SET, BRUSH 1 Rp34.000
3 31135-19D00-000
SUB: 31135B19D00N000		 •SPRING 2 Rp4.500
4 31156-98E00-000
SUB: 31156B98E00N000		 •O RING 1 Rp3.000
5 31170-19B10-000
SUB: 31170B19B10N000		 •WASHER SET 1 Rp12.000
6 31181-30H20-000
SUB: 31181B30H20N000		 •NUT 1 Rp4.500
7 31182-30H20-000
SUB: 31182B30H20N000		 •WASHER 1 Rp4.500
7 01547-0625A-000
SUB: 01547B0625AN000		 BOLT 2 Rp6.500
8 31183-30H20-000
SUB: 31183B30H20N000		 •WASHER 2 Rp4.500
9 31184-30H20-000
SUB: 31184B30H20N000		 •WASHER 1 Rp4.500
10 31264-25G10-000
SUB: 31264B25G10N000		 •SQUARE RING 1 Rp11.000
11 31280-25G10-000
SUB: 31280B25G10N000		 •BOLT SET 1 Rp7.500
12 31156-25G10-000
SUB: 31156B25G10N000		 •PACKING O RING 3 Rp5.000
13 31311B35G10N000 •ARMATURE ASSY 1 -
15 08361-3506A-000
SUB: 08361B3506AN000		 NUT 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
