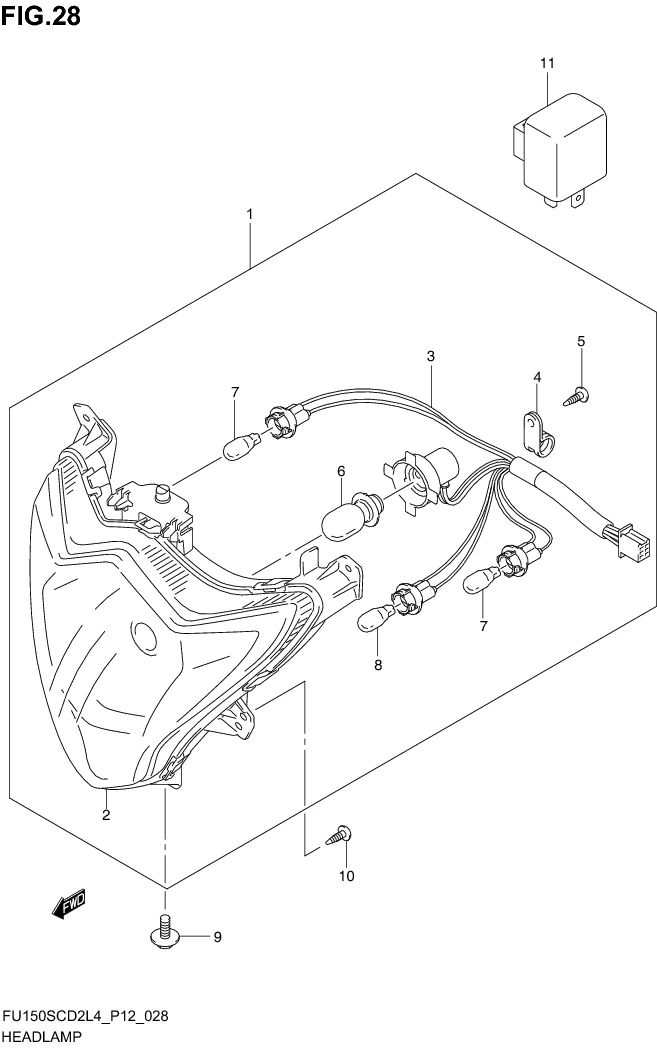

FIG.28 HEADLAMP

FIG.28 HEADLAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35100-25GA0-000
SUB: 35100B25GA0N000		 HEADLAMP ASSY 1 Rp230.500
2 35121-25GA0-000
SUB: 35121B25GA0N000		 •HEADLAMP UNIT 1 Rp182.500
3 35171-25GA0-000
SUB: 35171B25GA0N000		 •CORD & SOCKET 1 Rp41.500
4 35328-25GA0-000
SUB: 35328B25GA0N000		 •HOLDER 1 Rp6.500
5 35187-10J00-000
SUB: 35187B10J00N000		 •SCREW 1 Rp3.000
6 09471-12213-000
SUB: 09471B12213N000		 •BULB (12V/32/32W) 1 Rp35.500
7 09471-12114AS01
SUB: 09471B12203N000		 •BULB (12V 10W) 2 Rp14.000
8 09471-12028-000
SUB: 09471-12028L000		 •BULB (12V,3.4W) 1 Rp8.000
9 09136-05051-000
SUB: 09136B05051N000		 SCREW (5X12) 1 Rp6.500
11 38610-25G00-000
SUB: 38610B25G00N000		 RELAY ASSY, TURNSIGNAL 1 Rp47.500
18 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
