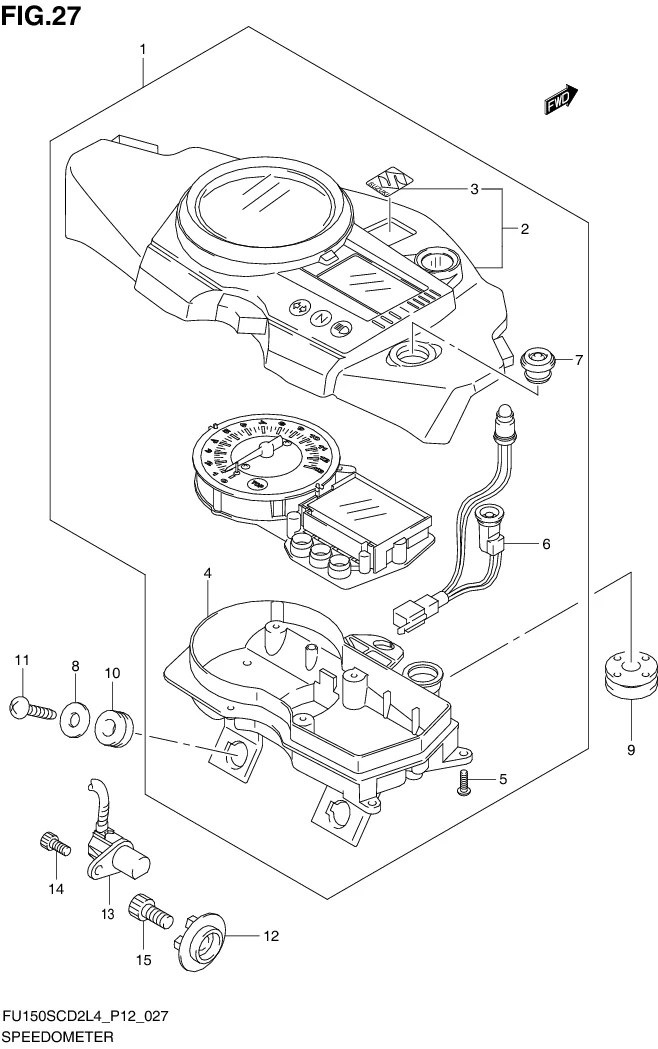

FIG.27 SPEEDOMETER

FIG.27 SPEEDOMETER
No No. Part Description Qty Price Per Pcs Remarks
1 34100-25GA0-000
SUB: 34100B25GA0N000		 SPEEDOMETER 1 Rp1.089.500
2 34112-25GA0-000
SUB: 34112B25GA0N000		 •VISOR ASSY 1 Rp114.000
3 68281-25G10-000
SUB: 68281B25G10N000		 ••EMBLEM, SUZUKI 1 Rp10.500
4 34111-25G10-000
SUB: 34111B25G10N000		 •LOWER CASE 1 Rp51.000
5 34149-03G00-000
SUB: 34149B03G00N000		 •SCREW (3X14) 10 Rp3.500
6 34170-25G10-000
SUB: 34170B25G10N000		 •CORD ASSY 1 Rp97.500
7 34141-25G10-000
SUB: 34141B25G10N000		 •SWITCH, SELECT 1 Rp23.500
8 09160-05045-000
SUB: 09160B05045N000		 WASHER (5.5X18X1.0) 2 Rp4.500
9 09320-08028-000
SUB: 09320B08028N000		 CUSHION 1 Rp11.500
10 09320-09016-000
SUB: 09320-09016L000		 CUSHION 2 Rp4.000
12 34981-25G00-000 ROTOR, SPEED 1 Rp44.000
13 34990-25G20-000
SUB: 34990B25G20N000		 SENSOR, SPEED 1 Rp225.500
14 07130-0512A-000
SUB: 07130B0512BN000		 BOLT 1 Rp4.000
15 07130-0816A-000
SUB: 07130B0816AN000		 BOLT 1 Rp7.000
18 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
