Satria FU150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.23 STARTING MOTOR FIG.24 MAGNETO FIG.25 BATTERY FIG.26 ELECTRICAL FIG.27 SPEEDOMETER FIG.28 HEADLAMP FIG.29 REAR COMBINATION LAMP FIG.30 WIRING HARNESS FIG.31 HANDLE SWITCH

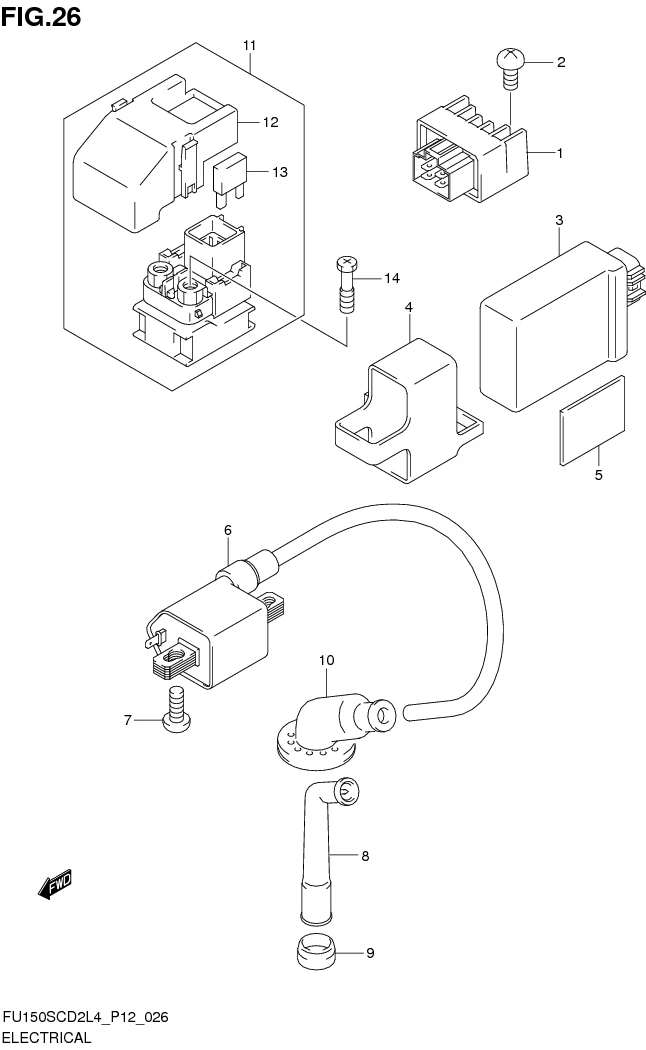

FIG.26 ELECTRICAL

FIG.26 ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 32800-41H01-000
SUB: 32800B41H00N000		 RECTIFIER ASSY 1 Rp117.500
3 02112-0612A-000
SUB: 02112B0612AN000		 SCREW 1 Rp3.500
3 32900-25G20-000
SUB: 32900B25G20N000		 CDI UNIT 1 Rp536.000
4 32980-28F00-000
SUB: 32980B28F00N000		 CUSHION 1 Rp33.000
5 33652-36100-000
SUB: 33652-36100L000		 PROTECTOR, CDI UNIT 1 Rp3.500
6 33410-25G00-000
SUB: 33410B25G00N000		 COIL ASSY, IGNITION 1 Rp85.500
7 02112-0616A-000
SUB: 02112B0616AN000		 SCREW 2 Rp3.500
8 33510-25G00-000
SUB: 33510B25G00N000		 CAP, SPARK PLUG 1 Rp43.000
9 33541-25G00-000
SUB: 33541B25G00N000		 SEAL, SPARK PLUG 1 Rp9.000
10 33542-25G10-000
SUB: 33542B25G10N000		 SEAL, HIGH TENSION CORD 1 Rp17.500
11 31800-25G00-000
SUB: 31800B25G00N000		 RELAY ASSY, STARTING MOTOR 1 Rp90.000
12 31861-47E00-000
SUB: 31861B47E00N000		 •COVER 1 Rp7.000
13 09481-10101-000
SUB: 09481B10101N000		 •FUSE (10A) 2 Rp4.000
14 09128-06013-000
SUB: 09128B06013N000		 BOLT (6X8) 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
