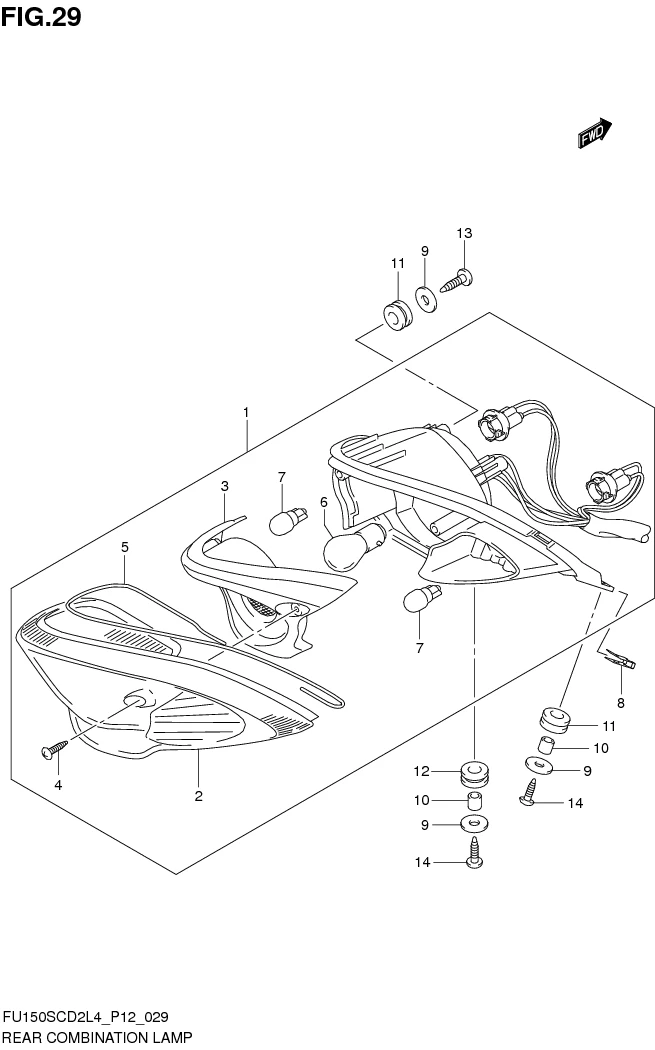

FIG.29 REAR COMBINATION LAMP

FIG.29 REAR COMBINATION LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35710-25G01-000
SUB: 35710B25G01N000		 LAMP ASSY, REAR COMBINATION 1 Rp161.000
2 35712-25G00-000
SUB: 35712B25G00N000		 •LENS 1 Rp24.000
3 35912-25G00-000
SUB: 35912B25G00N000		 •LENS, INNER 1 Rp16.500
4 03211-04207-000 •SCREW 2 Rp8.500
5 35713-25G00-000
SUB: 35713B25G00N000		 •GASKET 1 Rp4.500
6 09471-12127-000
SUB: 09471B12119N000		 •BULB (12V 18/5W) 1 Rp12.500
7 09471-12114AS01
SUB: 09471B12203N000		 •BULB (12V 10W) 2 Rp14.000
8 09148-05038-000
SUB: 09148B05038N000		 NUT 3 Rp4.000
9 09160-05050-000
SUB: 09160B05050N000		 WASHER (5.5X18X1.0) 5 Rp5.500
10 48211-09G00-000
SUB: 48211B09G00N000		 SPACER (6.1X9X9) 3 Rp3.000
11 09320-09016-000
SUB: 09320-09016L000		 CUSHION 4 Rp4.000
12 09320-09050-000
SUB: 09320B09050N000		 CUSHIONFOR WHITE MARK 1 Rp7.000 FOR WHITE MARK
13 03541-0512A-000 SCREW 2 Rp3.500
14 03541-0520B-000
SUB: 03541B0520BN000		 SCREW 3 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
