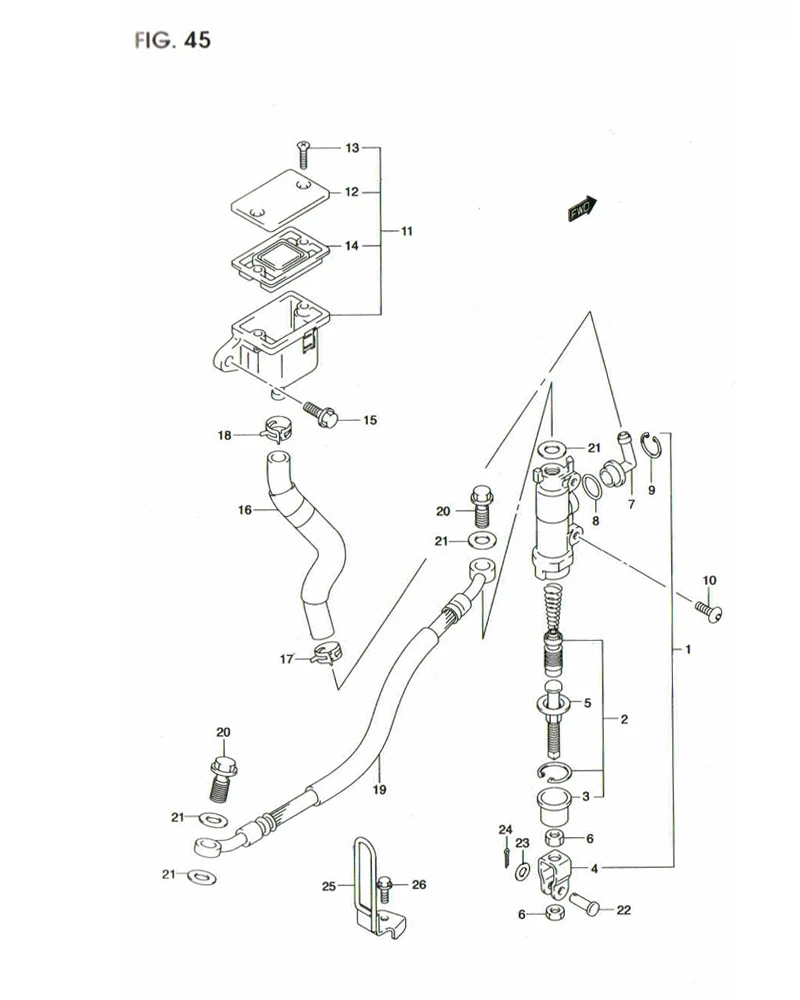

FIG. 45 REAR MASTER CYLINDER

FIG. 45 REAR MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 69600-21D00-000
SUB: 69600-21D00L000		 CYLINDER ASSY, REAR MASTER 1 Rp327.000
2 69600-21810-000
SUB: 69600-21810L000		 .PISTON / CUP SET 1 Rp76.500
3 69691-00A0L-000 ..BOOT 1 -
4 69692-27A30-000
SUB: 69692-27A30L000		 .YOKE 1 Rp43.000
5 69670-00B21-000
SUB: 69670-00B21L000		 .ROD, PUSH 1 Rp39.500
6 69693-05A00-000
SUB: 69693-05A00L000		 .NUT 2 Rp5.500
7 69672-00B20-000
SUB: 69672-00B20L000		 .CONNECTOR 1 Rp18.000
8 69686-34200-000
SUB: 69686-34200L000		 .O RING 1 Rp8.000
9 DISCONTINUE
SUB: 69674-00B20L000		 .CIRCLIP 1 -
10 DISCONTINUE
SUB: 09139-06067-000		 SCREW 2 -
11 DISCONTINUE
SUB: 69740-38B21L000		 TANK ASSY, RESERVOIR 1 -
12 DISCONTINUE
SUB: 59669-05D00L000		 .CAP 1 -
13 DISCONTINUE
SUB: 69689-04A00L000		 .SCREW 2 -
14 DISCONTINUE
SUB: 59667-04700L000		 .DIAPHRGM 1 -
15 DISCONTINUE
SUB: 01550-06123-000		 BOLT 1 -
16 DISCONTINUE
SUB: 69730-21D40-000		 HOSE, RESERVOIR TANK 1 -
17 09401-12405-000
SUB: 09401-12404-000		 CLAMP 1 Rp16.500
18 09401-13417-000 CLAMP 1 Rp15.500
19 DISCONTINUE
SUB: 69480-21D10-000		 HOSE, REAR BRAKE 1 -
20 09360-100242000 BOLT (10X1.25X22) 2 -
21 09161-10009-000 WASHER 4 Rp12.500
22 09200-06037-000 PIN 1 Rp3.500
23 DISCONTINUE
SUB: 08322-01063-000		 WASHER 1 -
24 04111-2015A-000
SUB: 04111-20158-000		 PIN, COTTER 1 Rp4.500
25 69260-21D00L000 GUIDE, REAR BRAKE HOSE 1 -
26 01550-0616A-000
SUB: 01550-06163-000		 BOLT 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
