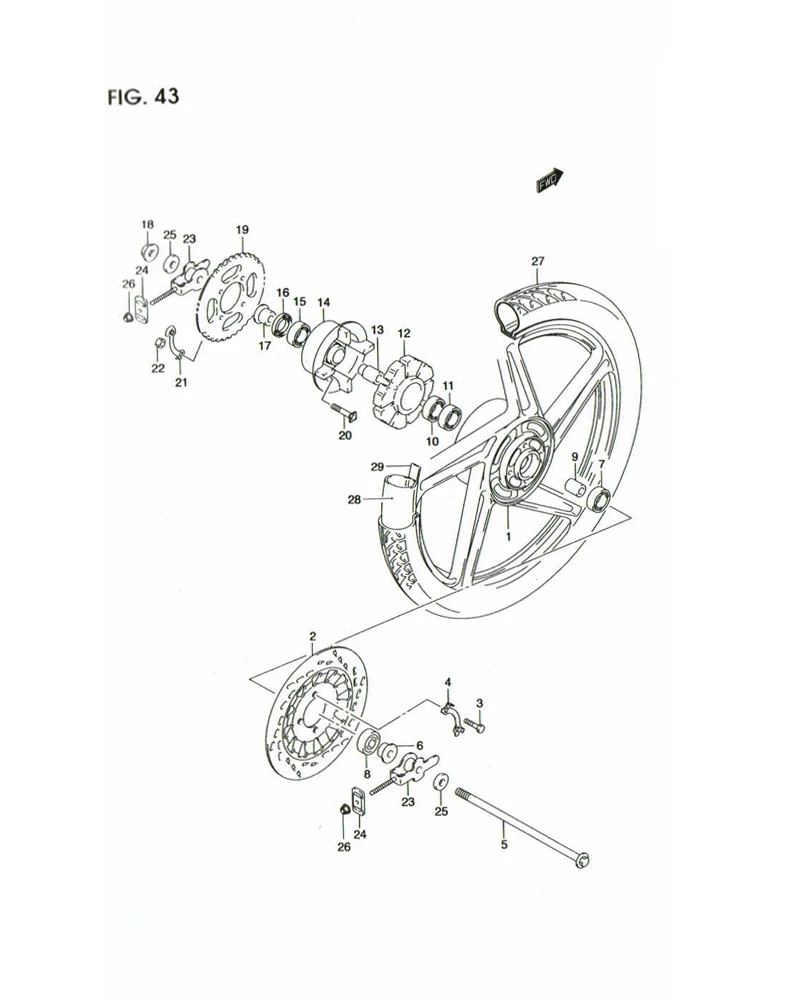

FIG. 43 REAR WHEEL

FIG. 43 REAR WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1 64111-47E40L000 WHEEL, REAR (17X1.40) 1 -
2 DISCONTINUE
SUB: 59211-21D50L000		 DISC, REAR BRAKE 1 -
3 09100-08094-000 BOLT (8X30) 4 Rp18.500
4 09169-08019-000 WASHER 2 Rp13.000
5 64711-21D00-000
SUB: 64711-21D00L000		 AXLE, REAR 1 Rp21.000
6 DISCONTINUE
SUB: 64741-21D00L000		 SPACER, REAR AXLE, RH 1 -
7 08113-63017-000
SUB: 08113-63010-000		 BEARING, RG 1 Rp29.500
8 09285-25008-000
SUB: 09285-25003-000		 SEAL, OIL (25X40X6) 1 Rp8.000
9 09180-12145-000 SPACER, BEARING (12.5X19X58) 1 Rp9.500
10 08143-62017-001
SUB: 08143-62017L000		 BEARING, LH 1 Rp24.500
11 08113-62017-000
SUB: 08113-62017L000		 BEARING, INNER LH 1 Rp23.500
12 64651-30D60-000
SUB: 64651-30D00L000		 ABSORBER, REAR HUB SHOCK 1 Rp25.000
13 64733-43000-000 RETAINER, REAR SPROCKET DRUM 1 Rp15.500
14 64611-39200-000 DRUM, SPROCKET MOUNTING 1 Rp122.000
15 08113-62037L000 BEARING 1 Rp34.000
16 09285-25008-000
SUB: 09285-25003L000		 OIL SEAL (25X40X6) 1 Rp8.000
17 DISCONTINUE
SUB: 64741-21D00L000		 SPACER, REAR POCKET DRUM 1 -
18 08319-31128-000 NUT 1 Rp7.500
19 64511-26410L000 SPROCKET, REAR (NT:43) 1 -
20 09105-08011-000 BOLT (8X36) 4 Rp6.500
21 09169-08011-000 LOCK WASHER 2 Rp3.500
22 08310-0008B-000
SUB: 08310-00083-000		 NUT 4 Rp15.500
23 61410-21D00L000 ADJUSTER, CHAIN 2 -
24 61421-21D00-000
SUB: 61421-21D00L000		 PLATE, CHAIN ADJUSTER GUIDE 2 Rp14.000
25 64712-21D00-000
SUB: 64712-21D00L000		 WASHER 2 Rp8.500
26 08319-31087-000 NUT 2 Rp16.500
27 65110-38D10L000 TIRE, REAR, 80/90-17M/C 44P IRC 1 -
28 55200-03600L000 TUBE ASSY, WHEEL INNER 1 -
29 55261-02B40L000 PROTECTOR, WHEEL INNER TUBE 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
