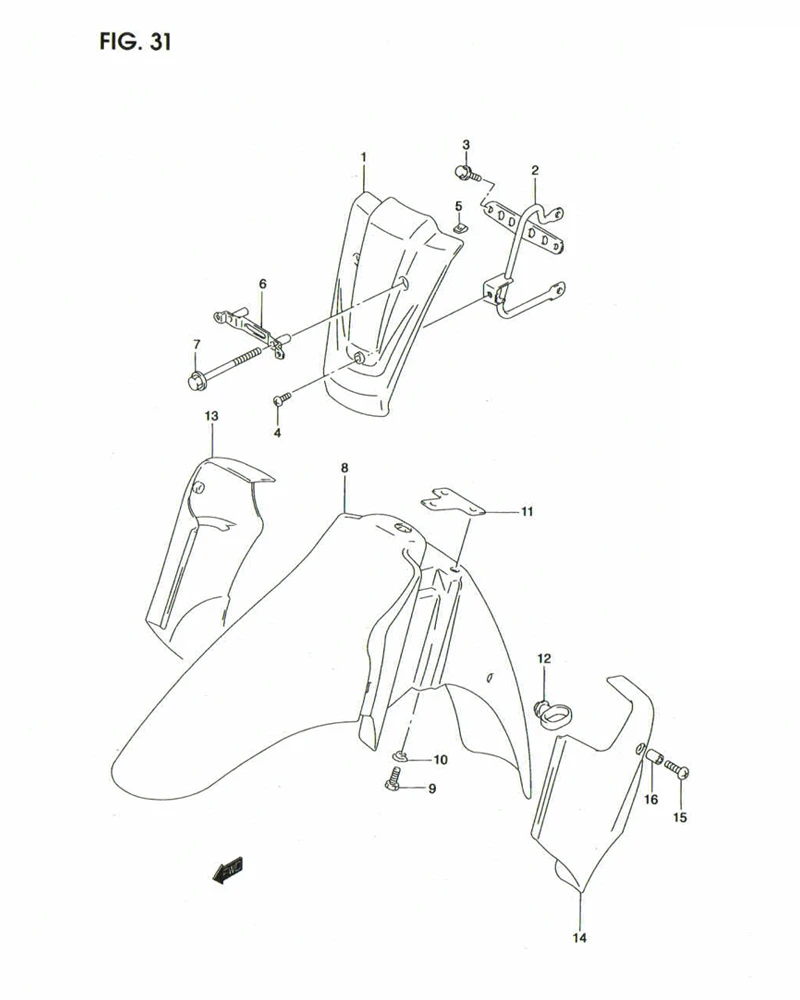

FIG. 31 FRONT FENDER

FIG. 31 FRONT FENDER
No No. Part Description Qty Price Per Pcs Remarks
1 51871-21D80L000 COVER, FRAME HEAD 1 -
2 51860-21DA0L000 BRACKET, HEAD COVER 1 -
3 DISCONTINUE
SUB: 01550-06123-000		 BOLT 1 -
4 09139-06083-000 SCREW, HEAD COVER LOWER 1 Rp6.500
5 09148-04024-000 NUT, FRAME HEAD 2 Rp14.000
6 48190-21D80-000 PLATE, FRONT LICENSE 1 Rp13.000
7 01550-0645A-000
SUB: 01550-06453-000		 BOLT 2 Rp13.000
8 53111-21D10L000 FENDER, FRONT 1 -
9 01500-0616A-000
SUB: 01500-06163-000		 BOLT 3 Rp6.500
10 09169-06060-000 WASHER 3 Rp13.000
11 53124-35400-000 REIFORCEMENT, FRONT FENDER 1 Rp35.000
12 58621-21203-000 GUIDE, CABLE 1 Rp7.000
13 51881-21D10L000 COVER, FRONT FORK SIDE RH 1 -
14 51882-21D10L000 COVER, FRONT FORK SIDE LH 1 -
15 02142-0616A-000
SUB: 02142-06167-000		 SCREW 2 Rp3.000
16 09180-06092-000 SPACER 2 Rp21.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
