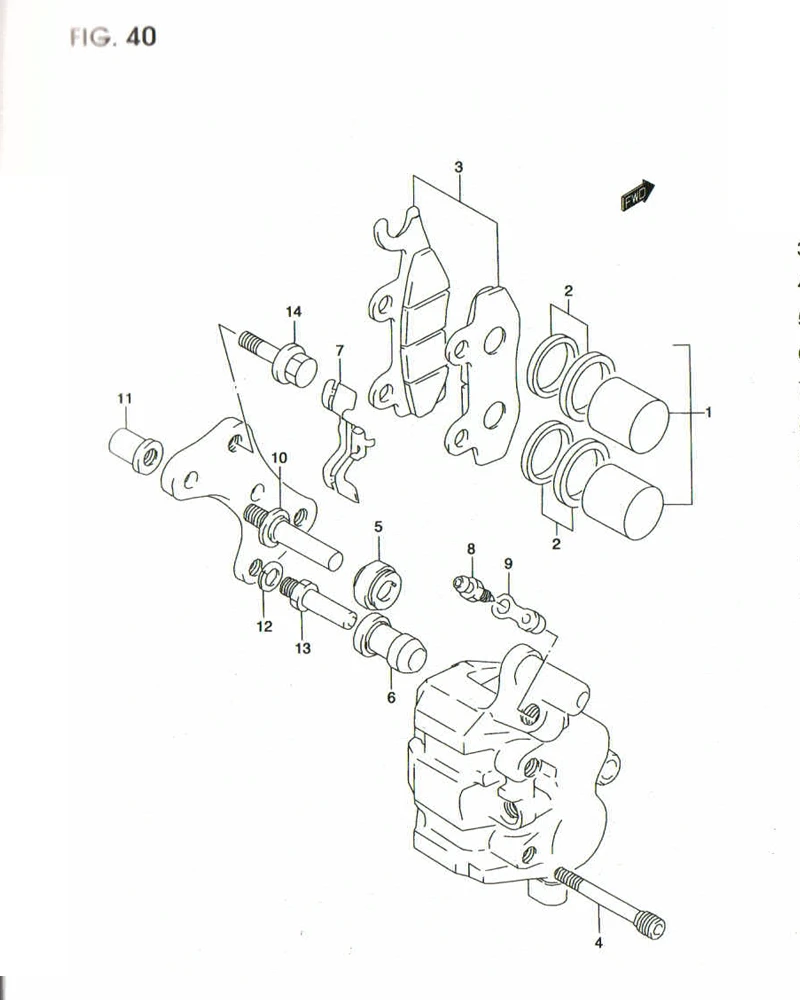

FIG. 40 FRONT CALIPER

FIG. 40 FRONT CALIPER
No No. Part Description Qty Price Per Pcs Remarks
DISCONTINUE
SUB: 59100-21D21AS01		 CALIPERS, FRONT (MAG GOLD) 1 -
1 69100-31810-000
SUB: 69100-31810L000		 .PISTON SET 1 Rp166.500
2 59300-13820-000
SUB: 59300-13820L000		 .SEAL SET, PISTON 1 Rp37.000
3 59100-21850-000
SUB: 59100-21850L000		 .PAD SET 1 Rp66.000
4 59345-14600-000
SUB: 59345-14600L000		 .PIN 2 Rp35.000
5 59303-14500-000
SUB: 59303-14500L000		 .BOOT 1 Rp12.500
6 59386-13A00-000
SUB: 59386-13A00L000		 .BOOT 1 Rp14.000
7 69115-31D10-000
SUB: 69115-31D10L000		 .SPRING 1 Rp26.500
8 59121-01A00-000
SUB: 59121-01A00L000		 .BLEEDER 1 Rp14.500
9 59122-01A00-000
SUB: 59122-01A00L000		 .CAP, BLEEDER 1 Rp3.000
10 59387-00B20-000
SUB: 59387-00B20L000		 .PIN 1 Rp25.500
11 59388-00B20-000 .NUT 1 Rp28.500
12 59314-13A00-000
SUB: 59314-13A00L000		 .WASHER 1 Rp3.000
13 59382-13A00-000
SUB: 59382-13A00L000		 .BOLT 1 Rp13.500
14 09103-08107L000 BOLT 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
