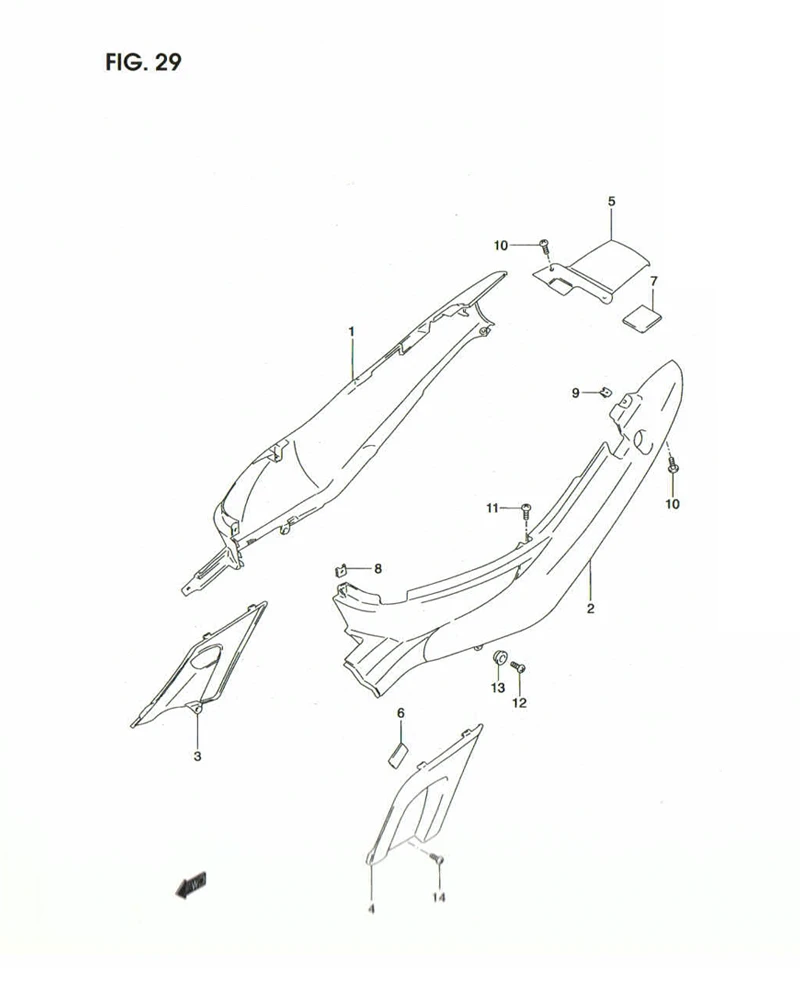

FIG. 29 FRAME COVER

FIG. 29 FRAME COVER
No No. Part Description Qty Price Per Pcs Remarks
1 47111-21D50L000 COVER, FRAME RH 1 -
2 47211-21D20L000 COVER, FRAME LH 1 -
3 DISCONTINUE
SUB: 47131-21D80L126		 COVER, SIDE LOWER RH 1 -
4 DISCONTINUE
SUB: 47231-21D80L126		 COVER, SIDE LOWER LH 1 -
5 47311-21D10L000 COVER, SIDE REAR 1 -
6 33652-35400-000 CUSHION, SIDE LOWER LH 1 Rp7.000
7 33652-20C00-000 CUSHION, REAR 1 Rp20.000
8 09148-05013-000
SUB: 09148-05004-000		 NUT, FRONT MIDDLE 1 Rp13.500
9 09148-05013-000
SUB: 09148-05004-000		 NUT, REAR 2 Rp13.500
10 03241-0516A-000
SUB: 03242-05163-000		 SCREW, REAR 5 Rp17.000
11 02142-0516A-000
SUB: 02142-05163-000		 SCREW, FRONT UPPER 2 Rp3.500
12 02142-0612A-000
SUB: 02142-06123-000		 SCREW, CENTER LOWER 2 Rp4.000
13 09169-06032-000
SUB: 09169-06033-000		 WASHER, CENTER LOWER 2 Rp7.500
14 02142-0616B-000
SUB: 02142-06163-000		 SCREW, FRONT LOWER 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
