Satria 120

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 22 FRAMEFIG. 43 REAR WHEELFIG. 29 FRAME COVERFIG. 30 LEG SHIELDFIG. 31 FRONT FENDERFIG. 33 HANDLE COVERFIG. 39 FRONT WHEELFIG. 40 FRONT CALIPERFIG. 44 REAR CALIPERFIG. 45 REAR MASTER CYLINDER

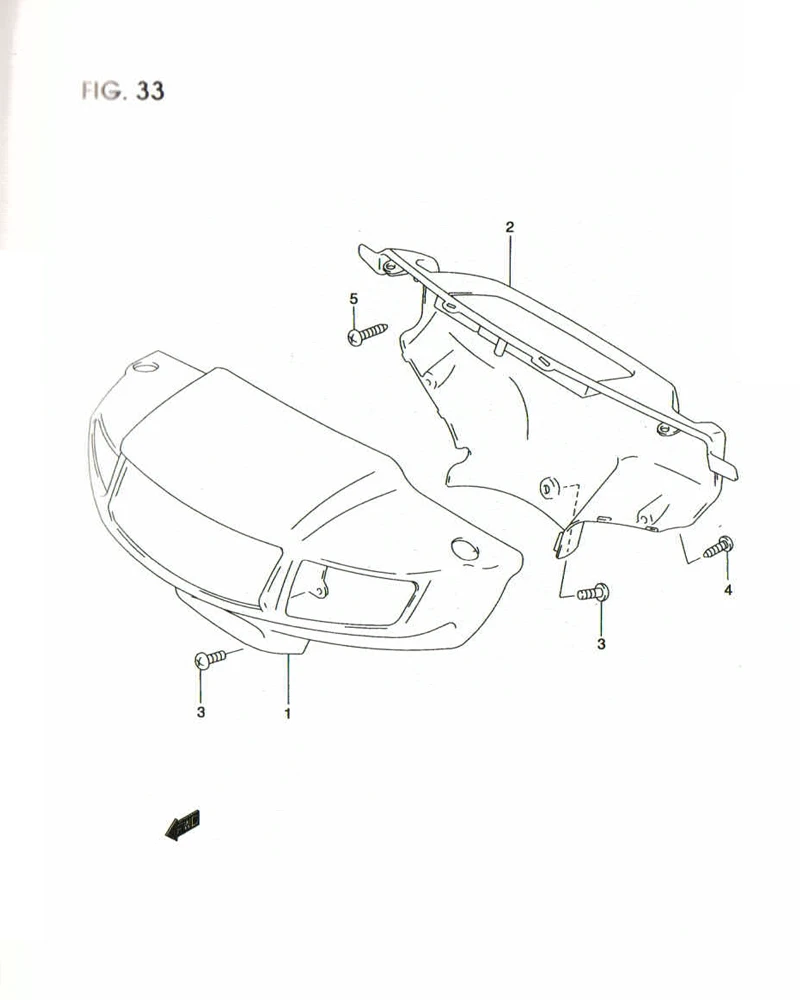

FIG. 33 HANDLE COVER

FIG. 33 HANDLE COVER
No No. Part Description Qty Price Per Pcs Remarks
1 56311-21DA0L000 COVER, HANDLE FRONT 1 -
2 56321-21D80L000 COVER, HANDLE REAR 1 -
3 02142-051123000 SCREW, FR / RR 2 -
4 03511-0416A-000
SUB: 03511-04163-000		 SCREW, SIDE 2 Rp11.000
5 03511-051163000 SCREW, UPPER 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
