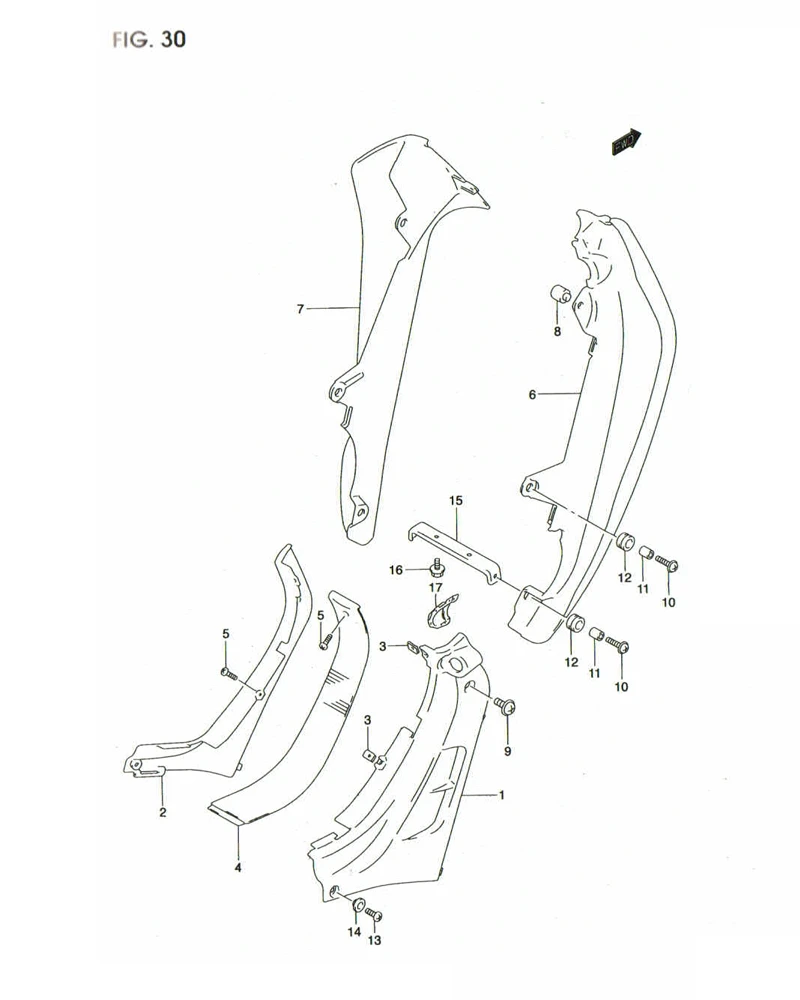

FIG. 30 LEG SHIELD

FIG. 30 LEG SHIELD
No No. Part Description Qty Price Per Pcs Remarks
1 48111-21D10L000 LEG SHIELD ASSY, RH 1 -
2 48121-21D10L000 LEG SHIELD ASSY, LH 1 -
3 09148-04024-000 NUT, RH 2 Rp14.000
4 48131-21D10-000
SUB: 48131-21D10L000		 LEG SHIELD, CENTER 1 Rp26.000
5 03541-0416A-000
SUB: 03541-04163-000		 SCREW, CENTER 6 Rp3.500
6 48161-21D80L000 SHIELD, LEG LOWER RH 1 -
7 48171-21D80L000 SHIELD, LEG LOWER LH 1 -
8 48198-21D00-000 SPACER, FRONT 2 Rp43.000
9 09136-06113-000 SCREW, FRONT 2 Rp14.000
10 09136-06004-000
SUB: 09136-06009-000		 SCREW, LOWER 4 Rp14.500
11 09180-06263-000 SPACER 4 Rp12.500
12 09320-09026-000 CUSHION 4 Rp12.500
13 02142-0616B-000
SUB: 02142-06163-000		 SCREW, REAR 2 Rp5.500
14 09169-06059-000 WASHER 2 Rp20.500
15 DISCONTINUE
SUB: 48180-21D00L000		 BRACE, LEG SHIELD 1 -
16 01570-0612A-000
SUB: 01570-06123-000		 BOLT, BRACE 2 Rp14.500
17 DISCONTINUE
SUB: 48272-21D80L000		 COVER, MAIN SWITCH 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
