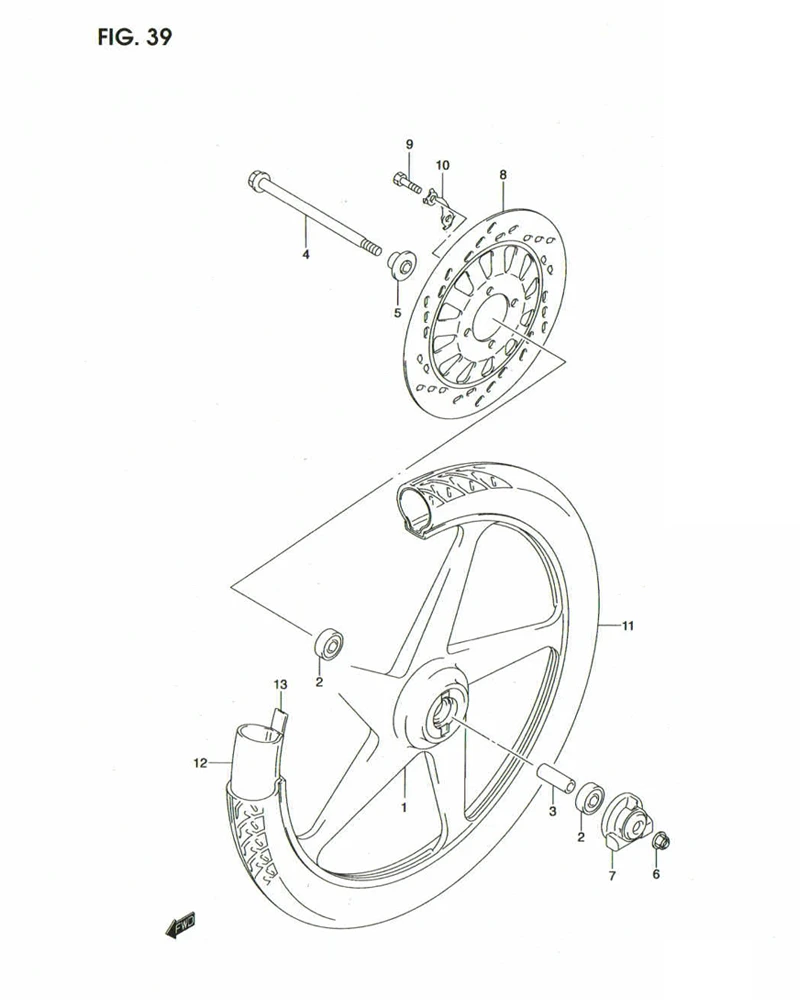

FIG. 39 FRONT WHEEL

FIG. 39 FRONT WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1 54111-47E40L000 WHEEL, FRONT (17X1.40) 1 -
2 08133-63007-000
SUB: 08133-63007L000		 BEARING 2 Rp36.000
3 DISCONTINUE
SUB: 09180-10148-000		 SPACER, FRONT HUB (10.2X16X51) 1 -
4 54711-13601-000
SUB: 54711-13601L000		 AXLE, FRONT 1 Rp23.500
5 54750-46100-000
SUB: 54750-46100L000		 SPACER, FRONT AXLE RH 1 Rp12.500
6 08319-31108-000
SUB: 08319-31107-000		 NUT 1 Rp4.500
7 DISCONTINUE
SUB: 54600-21D00-000		 BOX ASSY, SPEEDOMETER GEAR 1 -
8 DISCONTINUE
SUB: 59211-21D50L000		 DISC, FRONT BRAKE 1 -
9 09100-08094-000 BOLT (8X30) 4 Rp18.500
10 09169-08019-000 WASHER 2 Rp13.000
11 55110-38D10L000 TIRE, FRONT, 70/90- 17 38P IRC 1 -
12 55200-03600L000 TUBE ASSY, WHEEL INNER 1 -
13 55261-02B40L000 PROTECTOR, WHEEL INNER 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
