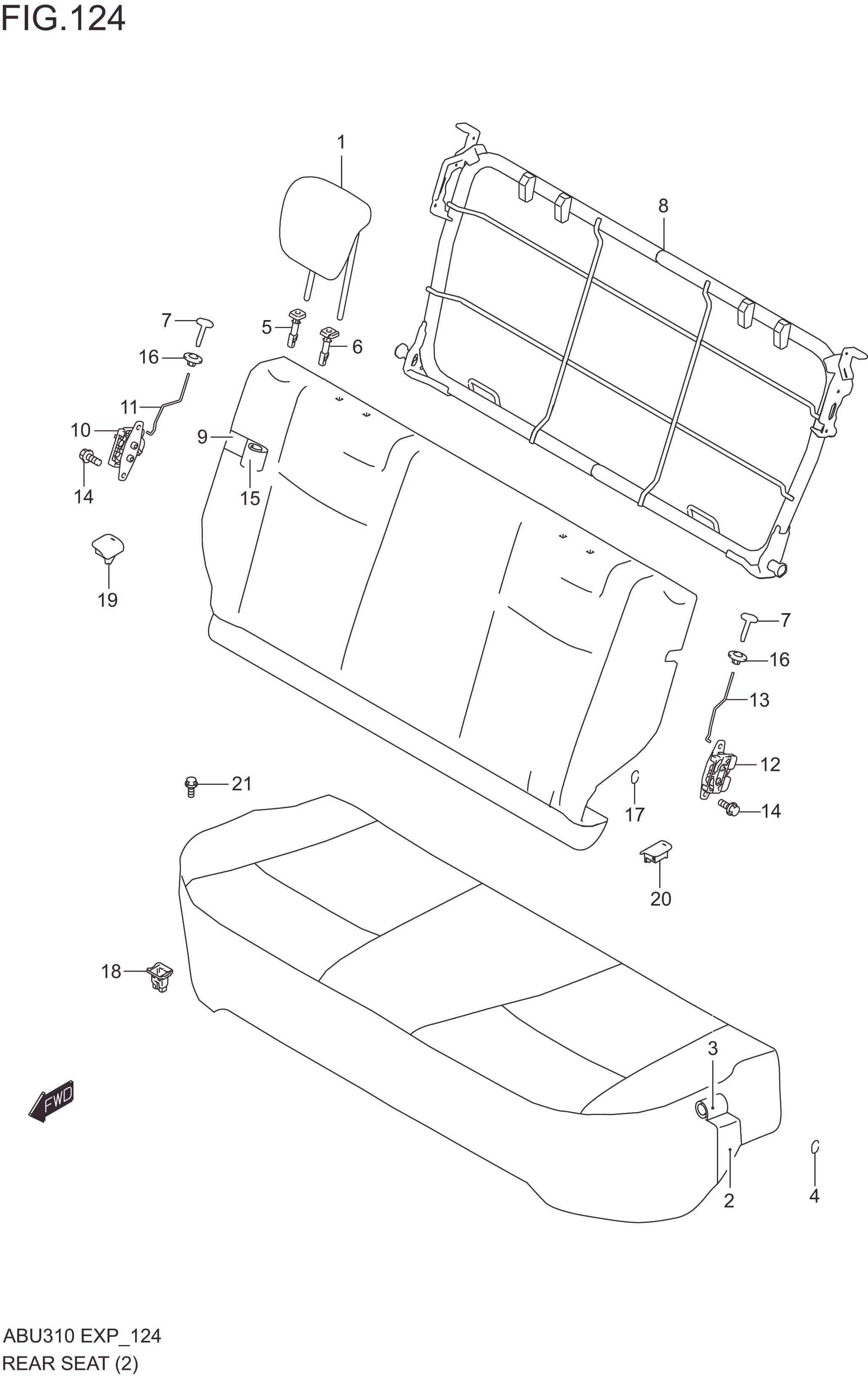

REAR SEAT (W/SEPARATE HEADRESTRAINT)

REAR SEAT (W/SEPARATE HEADRESTRAINT)
No No. Part Description Qty Price Per Pcs Remarks
1 86401M62SA0-EEQ HEADRESTRAINT ASSY, RR (BLACK) 2 Rp480.000
2 87160M62S10-000 PAD, RR CUSH 1 Rp1.480.000
3 87180M62SB0-D3Q TRIM, RR CUSH (BLACK) 1 Rp477.500
4 09387M19001-000 RING, TRIM 37 Rp7.500
5 85341M79M10-5PK GUIDE, HEADRESTRAINT (BLACK) 2 Rp9.500
6 85840M79M20-5PK GUIDE, HEADRESTRAINT (BLACK) 2 Rp11.000
7 87211M68P00-000 KNOB, RR BACK LOCK 2 Rp9.500
8 87310M62SA0-000 FRAME, RR BACK 1 Rp897.500
9 87360M62SA0-000 PAD, RR BACK 1 Rp687.500
10 87480M66R00-000 LOCK ASSY, RR BACK RH 1 Rp219.500
11 87485M62SA0-000 WIRE, RR BACK LOCK RH 1 Rp12.500
12 87980M66R00-000 LOCK ASSY, RR BACK LH 1 Rp214.500
13 87985M62SA0-000 WIRE, RR BACK LOCK LH 1 Rp12.500
14 01550-0816A-000
SUB: 01550M0816A-000		 BOLT 4 Rp6.000
15 87380M62SB0-D3Q TRIM, RR BACK (BLACK) 1 Rp586.000
16 87381M74P00-5PK BEZEL, RR BACK LOCK KNOB (BLACK) 2 Rp11.000
17 09387M19001-000 RING,TRIM 8 Rp7.500
18 87460M81R00-000 HOOK, RR SEAT CUSH 2 Rp6.500
19 87491M68P10-5PK COVER, RR SEAT HINGE RH (BLACK) 1 Rp10.000
20 87991M68P10-5PK COVER, RR SEAT HINGE LH (BLACK) 1 Rp10.000
21 01550-0816A-000
SUB: 01550M0816A-000		 BOLT 1 Rp6.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
