S-Presso MC

Preview Engine Transmission Electrical Suspension Body

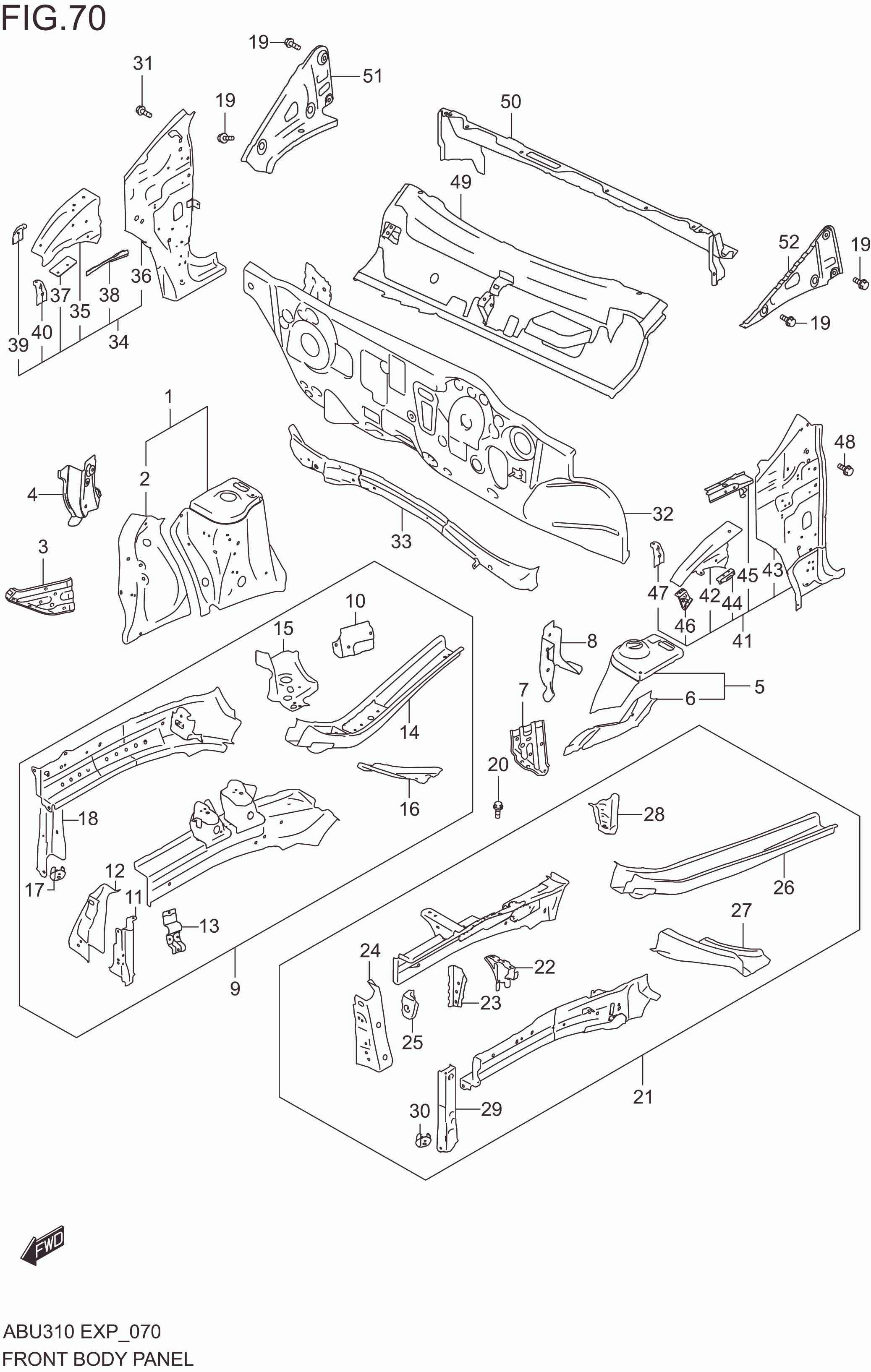

FRONT BODY PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	58300M62S10-000	PANEL, FENDER APRON RH R :K10C	1	Rp652.500	K10C
1-1	58300M62S00-000	PANEL, FENDER APRON RH R :K10B	1	Rp460.500	K10B
2	58310M62S00-000	.PANEL, APRON FRONT RH	1	Rp227.500
3	58316M62S00-000	BRACKET, FR FENDER LOWER RH	1	Rp32.500
4	58321M62S00-000	EXTENSION, FR FENDER UPR BRKT RH	1	Rp22.500
5-1	58400M62S00-000	PANEL, FENDER APRON LH R :K10B	1	Rp460.500	K10B
5-2	58400M62S20-000	PANEL, FENDER APRON LH R :K10C	1	Rp652.500	K10C
6	58410M62S00-000	.PANEL, APRON FRONT LH	1	Rp227.500
7	58416M62S00-000	BRACKET, FR FENDER LOWER LH	1	Rp32.500
8	58421M62S00-000	EXTENSION, FR FENDER UPR BRKT LH	1	Rp22.500
9-1	58600M62S10-000	MEMBER, FRONT SIDE RH R :K10B	1	Rp2.493.000	K10B
9-2	58600M62S30-000	MEMBER, FRONT SIDE RH R :K10C	1	Rp3.530.500	K10C
10	58636M62S00-000	.REINF, MBR APRON SIDE OTR FR RH	1	Rp39.000
11	58615M62S00-000	.PLATE,APRON SIDE MBR FR,R	1	Rp17.000
12	58642M62S00-000	.EXTENSION, APRON SIDE MBR UPR RH	1	Rp42.000
13	58644M62S00-000	.REINF, TOWING HOOK NUT	1	Rp26.500
14	58620M62S00-000	.MEMBER, DASH LOWER RH	1	Rp890.500
15	58626M62S00-000	.EXTENSION, DASH LOWER SIDE RH	1	Rp229.500
16	58629M62S00-000	.EXTENSION, DASH LOWER INR RH	1	Rp22.000
17	58634M62S00-000	.BRACKET, CROSSMEMBER FR LWR	1	Rp10.000
18-1	58635M62S00-000	.EXTENSION, APRON SIDE MBR LWRR :K10B RH	1	Rp49.000	K10B
18-2	58635M62S10-000	.EXTENSION, APRON SIDE MBR LWRR :K10C RH	1	Rp63.000	K10C
19	01550-0820A-000	BOLT	6	Rp5.500
20	01550M0612A-000	BOLT	1	Rp5.000
21-1	58700M62S10-000	MEMBER, FRONT SIDE LH R :K10B	1	Rp2.493.000	K10B
21-2	58700M62S30-000	MEMBER, FRONT SIDE LH R :K10C	1	Rp3.530.500	K10C
22	58714M62S00-000	..BRACKET, BATTERY TRAY	1	Rp65.000
23	58715M62S00-000	..PLATE, APRON SIDE MBR FR LH	1	Rp10.000
24	58742M62S00-000	..EXTENSION, APRON SIDE MBR UPR LH	1	Rp42.000
25	58746M62S00-000	..REINF, EXT APRON SIDE UPPER LH	1	Rp12.000
26	58720M62S00-000	.MEMBER, DASH LOWER LH	1	Rp890.500
27	58726M62S00-000	.EXTENSION, DASH LOWER SIDE LH	1	Rp229.500
28	58729M62S00-000	.EXTENSION, DASH LOWER INR LH	1	Rp22.000
29-1	58735M62S00-000	..EXTENSION, APRON SIDE MBR R :K10B LWR LH	1	Rp49.000	K10B
29-2	58735M62S10-000	..EXTENSION, APRON SIDE MBR R :K10C LWR LH	1	Rp61.000	K10C
30	58634M62S00-000	..BRACKET,CROSSMEMBER FR LWR	1	Rp10.000
31	01550M0612A-000	BOLT	1	Rp5.000
32-1	59100M62S00-000	PANEL, DASH R :5MT:RHD	1	Rp946.000	5MT:RHD
32-2	59100M62S30-000	PANEL, DASH R :5AGS	1	Rp927.000	5AGS
33	59220M62S00-000	CROSSMEMBER, DASH UPPER R :RHD	1	Rp180.500	RHD
34-1	59230M62S00-000	PANEL ASSY, DASH SIDE RH R :K10B:RHD	1	Rp978.000	K10B:RHD
34-2	59230M62S20-000	PANEL ASSY, DASH SIDE RH R :K10C:RHD	1	Rp1.095.500	K10C:RHD
35	59234M62S00-000	.PANEL, DASH SIDE FR RH	1	Rp109.500
36-1	59240M62S00-000	.PANEL, DASH SIDE RH R :K10B:RHD	1	Rp693.500	K10B:RHD
36-2	59240M62S20-000	.PANEL, DASH SIDE RH??????? R :K10C:RHD	1	-	K10C:RHD
37	59244M62S00-000	.PATCH, FRONT HOOD HINGE RH	1	Rp7.500
38	59250M62S00-000	.BRACKET, FR FENDER RH	1	Rp45.000
39	59253M62S00-000	.BRACKET, FRONT FENDER FR RH	1	Rp29.500
40	59254M62S00-000	.BRACKET, FRONT FENDER RR RH	1	Rp13.000
41	59280M62S00-000	PANEL ASSY, DASH SIDE LH R :RHD	1	Rp978.000	RHD
42	59284M62S00-000	.PANEL, DASH SIDE FR LH R :RHD	1	Rp109.500	RHD
43	59290M62S00-000	.PANEL, DASH SIDE LH R :RHD	1	Rp693.500	RHD
44	59294M62S00-000	.PATCH, FRONT HOOD HINGE LH	1	Rp7.500
45	59260M62S00-000	.BRACKET, FR FENDER LH	1	Rp45.000
46	59263M62S00-000	.BRACKET, FRONT FENDER FR LH	1	Rp29.500
47	59264M62S00-000	.BRACKET, FRONT FENDER RR LH	1	Rp13.000
48	01550M0612A-000	BOLT	1	Rp5.000
49	59710M62S00-000	PANEL, COWL UPPER R :RHD	1	Rp488.500	RHD
50	59720M62S00-000	PANEL, COWL FRONT R :RHD	1	Rp380.000	RHD
51	59811M62S00-000	MEMBER, COWL SIDE OUTER RH	1	Rp127.500
52	59861M62S00-000	MEMBER, COWL SIDE OUTER LH	1	Rp127.500
