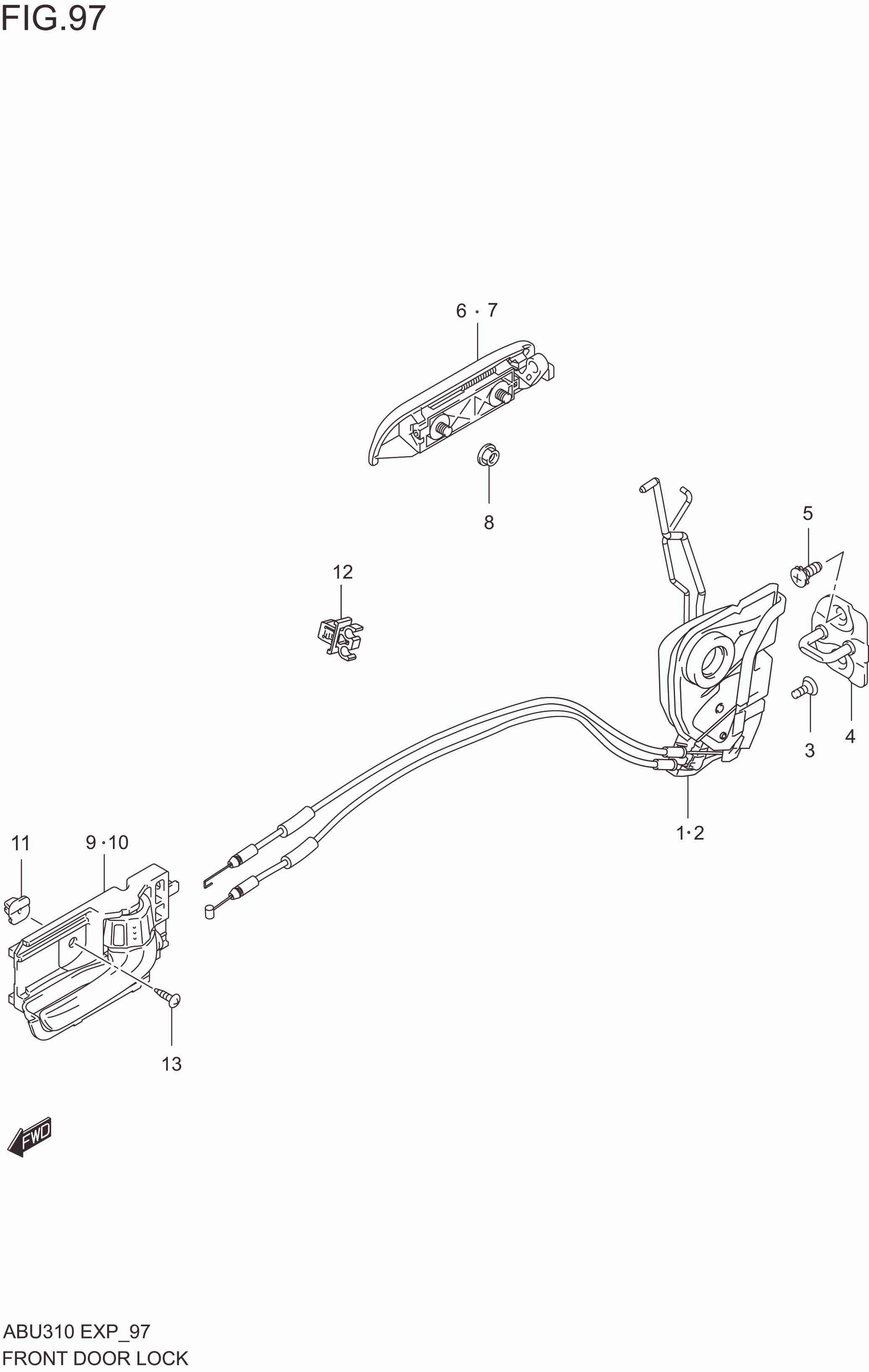

FRONT DOOR LOCK

FRONT DOOR LOCK
No No. Part Description Qty Price Per Pcs Remarks
1-2 82201M62S10-000 LATCH ASSY, FRONT DOOR RH R :W/KEYLESS ENTRY 1 Rp497.000 W/KEYLESS ENTRY
1-1 82201M62S00-000 LATCH ASSY, FRONT DOOR RH R :N/KEYLESS ENTRY 1 Rp278.500 N/KEYLESS ENTRY
2-1 82202M62S00-000 LATCH ASSY, FRONT DOOR LH R :N/KEYLESS ENTRY 1 Rp278.500 N/KEYLESS ENTRY
2-2 82202M62S10-000 LATCH ASSY, FRONT DOOR LH R :W/KEYLESS ENTRY 1 Rp437.500 W/KEYLESS ENTRY
3 09137-06032-000 SCREW 6 Rp16.500
4 82610M82P00-000 STRIKER, DOOR LATCH 2 Rp44.500
5 DISCONTINUE
SUB: 09137M08004-000		 SCREW 4 -
6-6 82801M69R50-Z4Q HANDLE ASSY, SIDE DOOR OUT RH R :K10C,K10B (RED) 1 Rp149.000 K10C,K10B
6-5 82801M69R50-Z2S HANDLE ASSY, SIDE DOOR OUT RH R :K10C,K10B (SILVER) 1 Rp149.000 K10C,K10B
6-4 82801M69R50-ZZT HANDLE ASSY, SIDE DOOR OUT RH R :K10C,K10B (ORANGE) 1 Rp149.000 K10C,K10B
6-3 82801M69R50-ZZS HANDLE ASSY, SIDE DOOR OUT RH R :K10C,K10B (BLUE) 1 Rp149.000 K10C,K10B
6-2 82801M69R50-ZTN HANDLE ASSY, SIDE DOOR OUT RH R :K10C,K10B (GREY) 1 Rp149.000 K10C,K10B
6-1 82801M69R50-26U HANDLE ASSY, SIDE DOOR OUT RH R :K10C,K10B (WHITE) 1 Rp165.000 K10C,K10B
7-1 82802M69R50-26U HANDLE ASSY, SIDE DOOR OUT LH R :K10C,K10B (WHITE) 1 Rp165.000 K10C,K10B
7-2 82802M69R50-ZTN HANDLE ASSY, SIDE DOOR OUT LH R :K10C,K10B (GREY) 1 Rp149.000 K10C,K10B
7-3 82802M69R50-ZZS HANDLE ASSY, SIDE DOOR OUT LH R :K10C,K10B (BLUE) 1 Rp149.000 K10C,K10B
7-4 82802M69R50-ZZT HANDLE ASSY, SIDE DOOR OUT LH R :K10C,K10B (ORANGE) 1 Rp149.000 K10C,K10B
7-5 82802M69R50-Z2S HANDLE ASSY, SIDE DOOR OUT LH R :K10C,K10B (SILVER) 1 Rp149.000 K10C,K10B
7-6 82802M69R50-Z4Q HANDLE ASSY, SIDE DOOR OUT LH R :K10C,K10B (RED) 1 Rp149.000 K10C,K10B
8 08316-1006A-000 NUT (6X12) 4 Rp2.000
9 83110M62S00-000 HANDLE, SIDE DOOR INSIDE RH 1 Rp77.500
10 83130M62S00-000 HANDLE, SIDE DOOR INSIDE LH 1 Rp77.500
11 83119M75J00-000 NUT, FRONT DOOR INSIDE HANDLE 2 Rp5.500
12 83271M66R00-000 CLIP, DOOR INSIDE HANDLE CABLE 2 Rp6.500
13 09132-05058-000 SCREW (5X12) 2 Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
