S-Presso MC

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT FENDER PANELFRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPERREAR BUMPERINSTRUMENT PANEL (RHD)VENTILATORHEATER UNIT(RHD)HEATER CONTROL(RHD)CONSOLE BOX (5MT)CONSOLE BOX (5AGS)FLOOR CARPETINTERIOR TRIMCOVER/CAPFUEL LID OPENER (RHD)ROOF LININGROOF SIDE PADMOLDINGSPLASH GUARDEMBLEMWINDSHIELDFRONT DOOR PANEL (W/FRONT POWER WINDOW)REAR DOOR PANELBACK DOOR PANELFRONT DOOR REGULATOR(W/FRONT POWER WINDOW)REAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (K10B,K10C)SEAT BELTFRONT LH SEAT (RHD)FRONT RH SEAT (RHD)REAR SEAT (W/INTEGRATED HEADRESTRAINT)PARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSORREAR SEAT (W/SEPARATE HEADRESTRAINT)

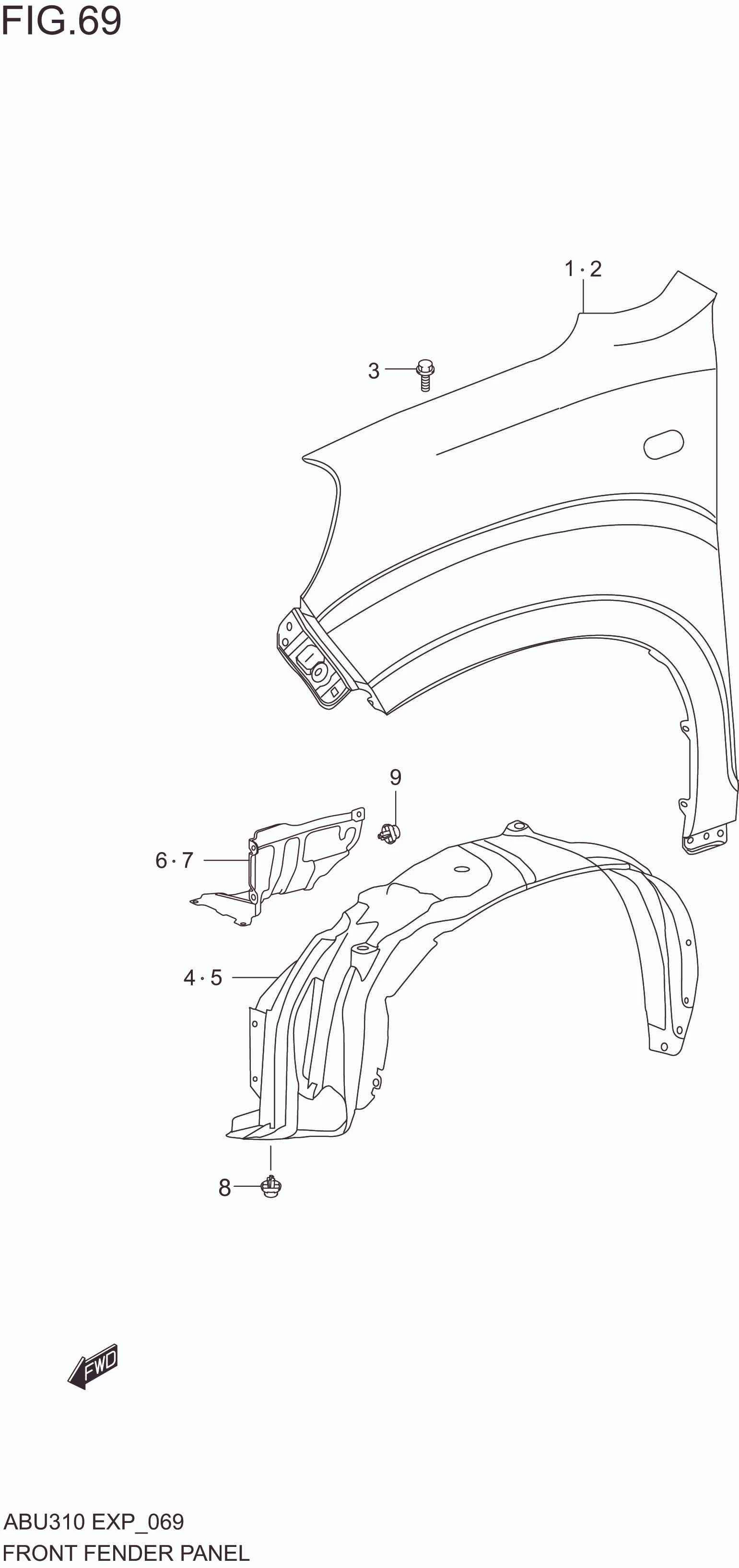

FRONT FENDER PANEL

FRONT FENDER PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 57611M62S00-000 PANEL, FRONT FENDER RH 1 Rp964.000
2 57711M62S00-000 PANEL, FRONT FENDER LH 1 Rp964.000
3 01550M0612A-000 BOLT 14 Rp5.000
4 72321M62S00-000 LINING, FRONT FENDER RH 1 Rp158.500
5 72322M62S00-000 LINING, FRONT FENDER LH 1 Rp158.500
6-1 72393M62S00-000 COVER, SPLASH RH R :K10B 1 Rp41.500 K10B
6-2 72393M62SA0-000 COVER, SPLASH RH R :K10C 1 Rp34.500 K10C
7 72394M62S00-000 COVER, SPLASH LH 1 Rp41.500
8 09409M07L01-000 CLIP 22 Rp5.000
9 09409M07L01-000 CLIP 10 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
