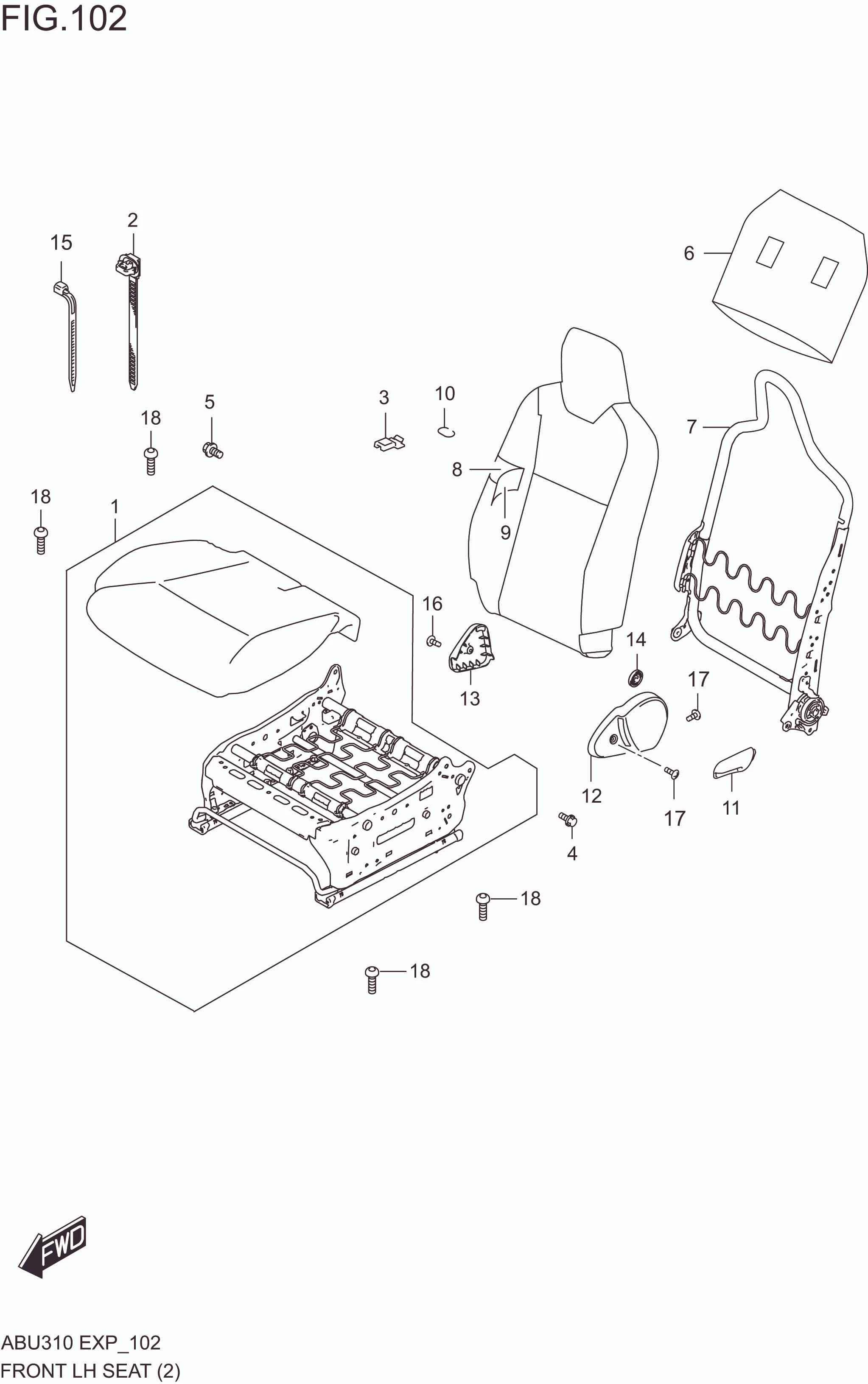

FRONT LH SEAT (RHD)

FRONT LH SEAT (RHD)
No No. Part Description Qty Price Per Pcs Remarks
1-2 85102M62SB0-D3Q CUSHION ASSY, FR LH (BLACK) R :K10C 1 Rp3.769.000 K10C
1-1 85102M62S20-D3Q CUSHION ASSY, FR LH (BLACK) R :K10B: 1 Rp4.102.500 K10B:
2 85191M74L00-000 CLAMP 1 Rp9.000
3 85192-74P00-000 HOLDER, HARNESS 1 Rp6.500
4 85291M62S00-000 BOLT, RECLINING 2 Rp9.500
5 85295M58J01-000 BOLT, FR BACK FIX 1 Rp9.000
6 85369M56R00-000 SILENCER, FR BACK 1 Rp34.000
7 85803M62S00-000 FRAME ASSY, FR BACK LH 1 Rp988.500
8 85860M62S00-000 PAD, FR BACK LH 1 Rp398.500
9 85880M62S00-D3Q TRIM, FR BACK LH (BLACK) R :K10B 1 Rp427.000 K10B
10 09387-19001-000 RING,TRIM 10 Rp9.000
11 85711M62S00-5PK KNOB, RECLINING LH (BLACK) 1 Rp22.000
12 85721M62S00-5PK COVER, RECLINING LH (BLACK) 1 Rp61.000
13 85741M62S00-5PK COVER, FR HINGE INSIDE LH (BLACK) 1 Rp21.000
14 87286-81P00-000 BUSH, CUSH STAY FIX 1 Rp37.000
15 09407M14403-000 CLAMP 2 Rp5.000
16 DISCONTINUE
SUB: 03211-0408A-000		 SCREW 1 -
17 03241M0512A-000 SCREW 2 Rp4.000
18 09119M08118-000 BOLT 4 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
