S-Presso MC

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT FENDER PANELFRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPERREAR BUMPERINSTRUMENT PANEL (RHD)VENTILATORHEATER UNIT(RHD)HEATER CONTROL(RHD)CONSOLE BOX (5MT)CONSOLE BOX (5AGS)FLOOR CARPETINTERIOR TRIMCOVER/CAPFUEL LID OPENER (RHD)ROOF LININGROOF SIDE PADMOLDINGSPLASH GUARDEMBLEMWINDSHIELDFRONT DOOR PANEL (W/FRONT POWER WINDOW)REAR DOOR PANELBACK DOOR PANELFRONT DOOR REGULATOR(W/FRONT POWER WINDOW)REAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (K10B,K10C)SEAT BELTFRONT LH SEAT (RHD)FRONT RH SEAT (RHD)REAR SEAT (W/INTEGRATED HEADRESTRAINT)PARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSORREAR SEAT (W/SEPARATE HEADRESTRAINT)

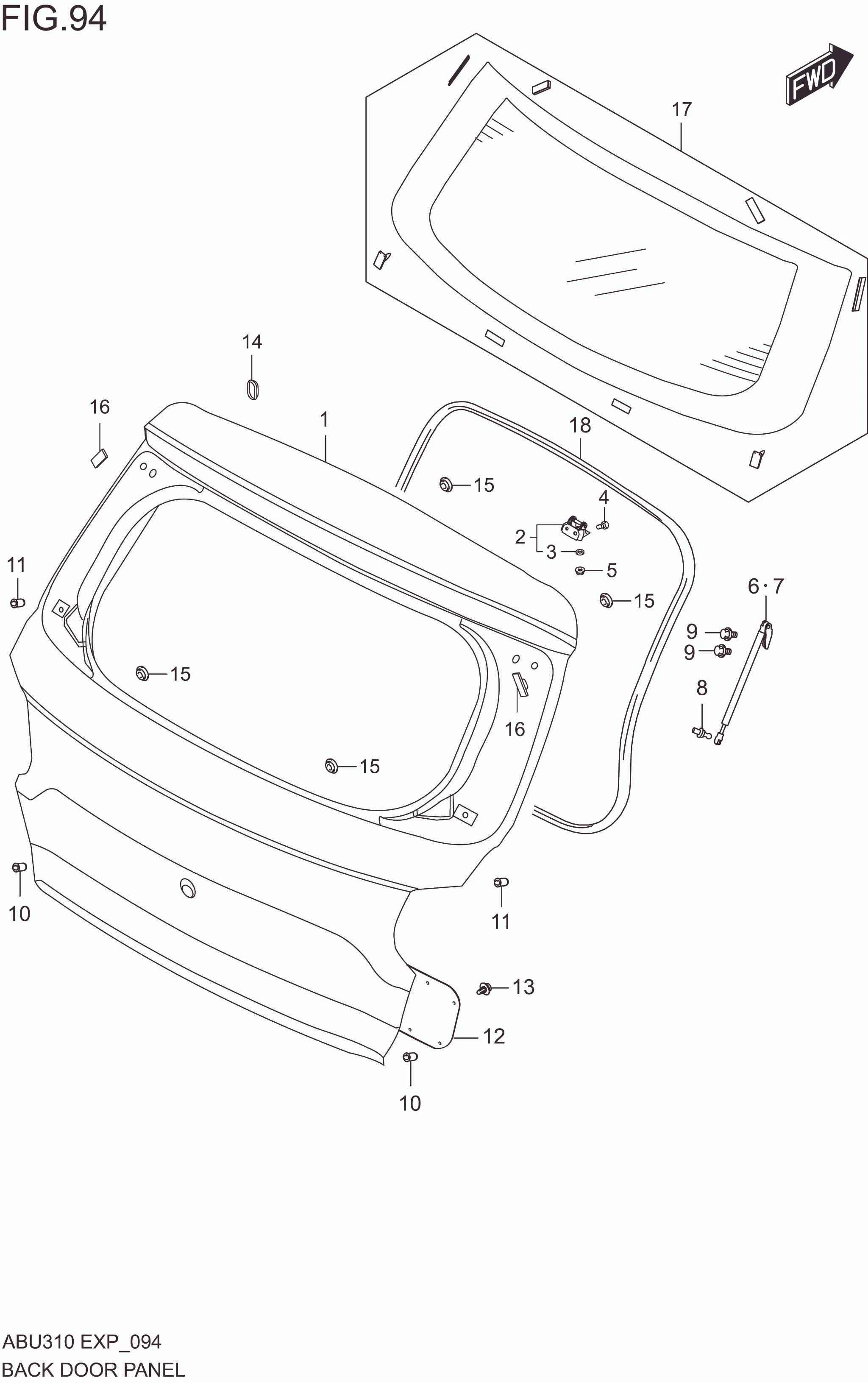

BACK DOOR PANEL

BACK DOOR PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 69100M62S10-000 PANEL ASSY, BACK DOOR R :W/DEFOGGER 1 Rp1.650.000 W/DEFOGGER
2 69510M68P01-000 HINGE, BACK DOOR 2 Rp62.500
3 69571M76G00-000 .PACKING, BACK DR HINGE FEMALE 2 Rp6.500
4 09111M06115-000 BOLT (6X12) 4 Rp5.500
5 08361-2508A-000 NUT 2 Rp16.500
6 81850M62S00-000 BALANCER, BACK DOOR RH 1 Rp271.500
7 81860M62S00-000 BALANCER, BACK DOOR LH 1 Rp271.500
8 81871M83K02-000 BALLSTUD, BACK DOOR BALANCER 2 Rp28.500
9 09113M08009-000 BOLT 4 Rp5.500
10 82683M72R00-000 CUSHION, BACK DOOR LOWER 2 Rp10.500
11 82683M72R00-000 CUSHION, BACK DOOR SIDE 2 Rp10.500
12 83770M62S00-5PK TRIM, BACK DOOR (BLACK) 1 Rp49.500
13 76237M70F00-5PK CLIP (BLACK) 6 Rp4.000
14 36994M67L10-000 CAP, REAR DOOR HOLE D 1 Rp39.500
15 09250M20031-000 CAP (OD:25.8) 4 Rp4.500
16 84515M65D10-000 FEMALE, GLASS FASTENER NO.2 2 Rp22.000
17 84570M62S10-000 GLASS, BACK DOOR WINDOW R :W/DEFOGGER 1 Rp720.000 W/DEFOGGER
18 84681M62S00-000 WEATHERSTRIP, BACK DOOR OPNG 1 Rp268.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
