INSTRUMENT PANEL (RHD)

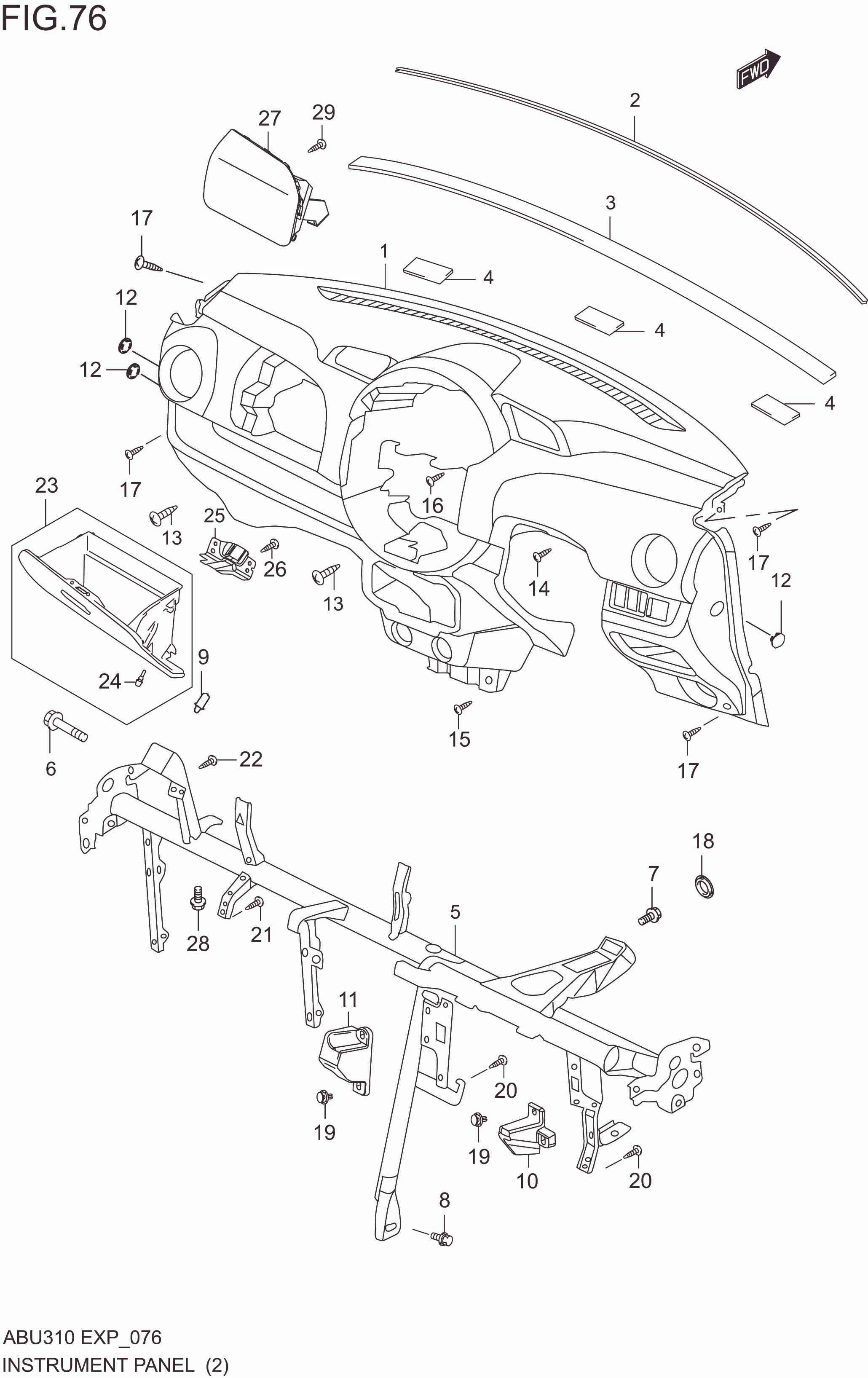

INSTRUMENT PANEL (RHD)
No No. Part Description Qty Price Per Pcs Remarks
1 73111M62S00-5PK PANEL, INSTRUMENT MAIN (BLACK) 1 Rp1.805.000
2 73114-61M00-000 SILENCER, I/P TOP 1 Rp315.500
3 73118-58J00-000 SEAL, I/P 1 Rp10.000
4 73123-82M00-000 FELT, I/P TOP 3 Rp19.500
5 73200M62S01-000 MEMBER, STEERING SUPPORT 1 Rp797.500
6 73291-52R00-000 BOLT, STRG SUPPORT MEMBER SIDE 4 Rp19.500
7 73291-52R00-000 BOLT, COWL UPPER 1 Rp19.500
8 73291-52R00-000 BOLT, STRG SUPPORT MEMBER LWR 1 Rp19.500
9 73461M53M00-000 CUSHION, GLOVE BOX 2 Rp7.000
10 73812M62S00-000 PAD, KNEE RH 1 Rp43.500
11 73813M62S00-000 PAD, KNEE LH 1 Rp43.500
12 73871M73H00-5PK CAP, I/P SIDE (BLACK) 3 Rp5.000
13 09132-05049-000 SCREW 2 Rp21.000
14 09132-05049-000 SCREW 1 Rp21.000
15 09132-05049-000 SCREW 1 Rp21.000
16 09132-05049-000 SCREW 3 Rp21.000
17 09138M06054-000 SCREW 4 Rp5.000
18 09250M30011-000 CAP, COWL UPPER 1 Rp4.500
19 09409M08018-000 CLIP 4 Rp4.000
20 03541-0516A-000 SCREW 2 Rp3.500
21 03541-0516A-000 SCREW 1 Rp3.500
22 03541-0516A-000 SCREW 1 Rp3.500
23 73410M62S00-5PK BOX, GLOVE (BLACK) 1 Rp240.000
24 73413M82C00-000 .CUSHION, GLOVE BOX 1 Rp11.500
25 73480M62S00-000 REINF, GLOVE BOX UPPER 1 Rp23.500
26 03541-0516A-000 SCREW 2 Rp3.500
27 73910M62S00-5PK MODULE ASSY, PASSENGER AIR BAGR :(BLACK) 1 Rp3.205.500 SEE NOTE:SPECIAL PROCEDURES ARE REQUIRED FOR SERVICING OR REPLACING AN A/B. FOR THAT REASON, ONLY A FACTORY-AUTHORIZED DEALER, W
28 01551-0816C-000 BOLT 2 Rp13.500
29 02162-0616A-000 SCREW 2 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
